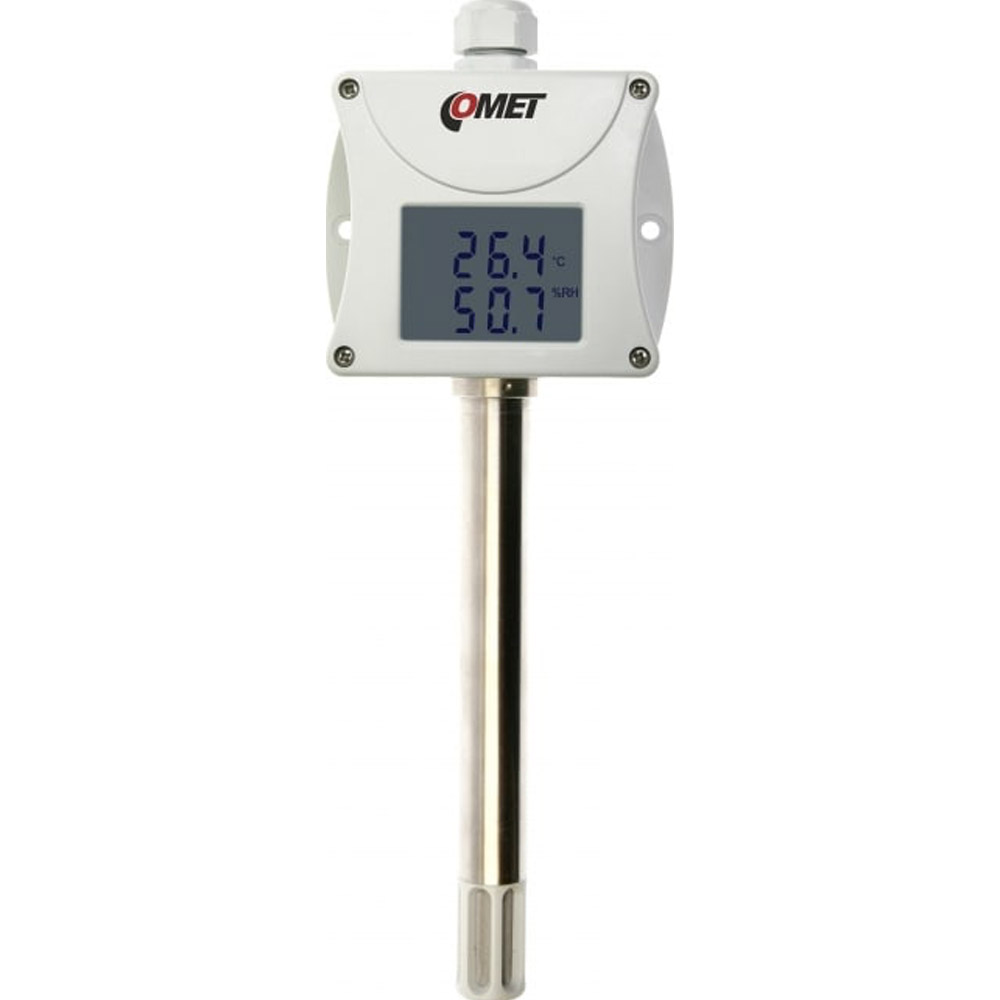

Comet T0213
- Equipped with temperature and relative humidity sensors
- Measured values are also converted to other humidity interpretation
- Dew point temperature
- Absolute humidity
Temperature+Humidity, Duct Probe, 150mm
Programmable temperature and humidity transmitter is equipped with temperature and relative humidity sensors. Measured values are also converted to other humidity interpretation – dew point temperature, absolute humidity, specific humidity, mixing ratio, or specific enthalpy. Degrees Celsius and Fahrenheit are user selectable. Transmitter contains a microprocessor-based control circuitry in a durable plastic case with connection terminals and sensors in a filter with stainless steel mesh. Transmitters are available with two 0-10V outputs. Configuration of outputs and output range are user adjustable. Large dual line LCD for simultaneous display of T+RH or other humidity interpretation is an advantage. Display is possible to switch off. Computerized design ensures temperature compensation of the humidity sensor and fails indication. State-of-the-art capacitive polymer sensor ensures excellent calibration long-term stability, inertia against water, and condensation. Transmitters are designed for use in non-aggressive environment.
Applications Measuring and Control of Air Humidity
- Warehouses
- Glasshouses
- Manufacturers
- Air-conditioned rooms
- Weather stations
- Museums, archives, galleries
- Building HVAC Management/Automation
Transmitters are approved and homologated by RENAULT and by PSA (PEUGEOT / CITROEN) car manufacturers. Any measured value – temperature, relative humidity, dew point temperature, absolute humidity, specific humidity, mixing ratio, or specific enthalpy can be assigned to each output of dual output transmitters. Also, identical values can be assigned to both outputs.
Manufacturer Specs
| Comet T0213 Specifications | |
| Technical Parameters | Value |
| Output | 0-10V |
| Measured Value | Temperature + Relative Humidity |
| Construction Type | Duct Mount (150mm) |
| Design | Industrial |
| Relative humidity range | 0 to 100% |
| Accuracy of relative humidity measurement | ±2.5% relative humidity from 5 to 95% at 23°C |
| Accuracy of temperature output | ±0.4°C from -30 to +100°C ±0.4% from reading over +100°C |
| Available temperature units | degrees Celsius, Fahrenheit |
| Accuracy and range of dew point temperature output – for more details see graphs | ±1.5°C at ambient temperature T<25°C and RH>30% range -60 to +80 °C |
| Accuracy and range of absolute humidity output | ±1.5g/m3 at ambient temperature T < 25°C range 0 to 400 g/m3 |
| Accuracy and range of specific humidity output | ±2g/kg at ambient temperature T < 35°C range 0 to 550 g/kg |
| Accuracy and range of mixing ratio output | ±2g/kg at ambient temperature T < 35°C range 0 to 995 g/kg |
| Accuracy and range of specific enthalpy output | ±3kJ/kg at ambient temperature T < 25°C range: 0 to 995 kJ/kg |
| Temperature operating range of case with electronics | -30 to +80°C |
| Temperature operating range of LCD display | readable to operating temperature +70°C, it is recommended to switch OFF the LCD over +70°C Range of humidity sensor temperature compensation all temperature range |
| Voltage outputs | 0-10V, outputs are not galvanic isolated – have common ground |
| Configuration of outputs and output range | user adjustable from the PC |
| Filtering ability of sensor cover | 0.025mm – filter with stainless steel mesh |
| Protection of the case with electronics | IP65 electronics, IP40 sensors |
| Power | 15-30Vdc, maximum consumption 20mA; 24 Vac |
| Dimensions | display unit 88.5 x 250 x 39.5 mm (W x H x D), stem length 150 mm |
| Weight | approximately 225g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 125 C |
| Min Temperature | -30 C (-22 F) |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| IP Rating | IP40, IP65 |
| Product Weight | 0.5 LBS |
| Shipping Weight | 0.60 LBS |
| Country of Origin | Czech Republic |
