Comet T0610
- T0610 Web Sensor with PoE – Remote Thermometer with Ethernet Interface
- SNTP Protocol – Time Synchronization
- History Export to CSV
- History Values Memory
- Power over Ethernet
- Actual Values via XML

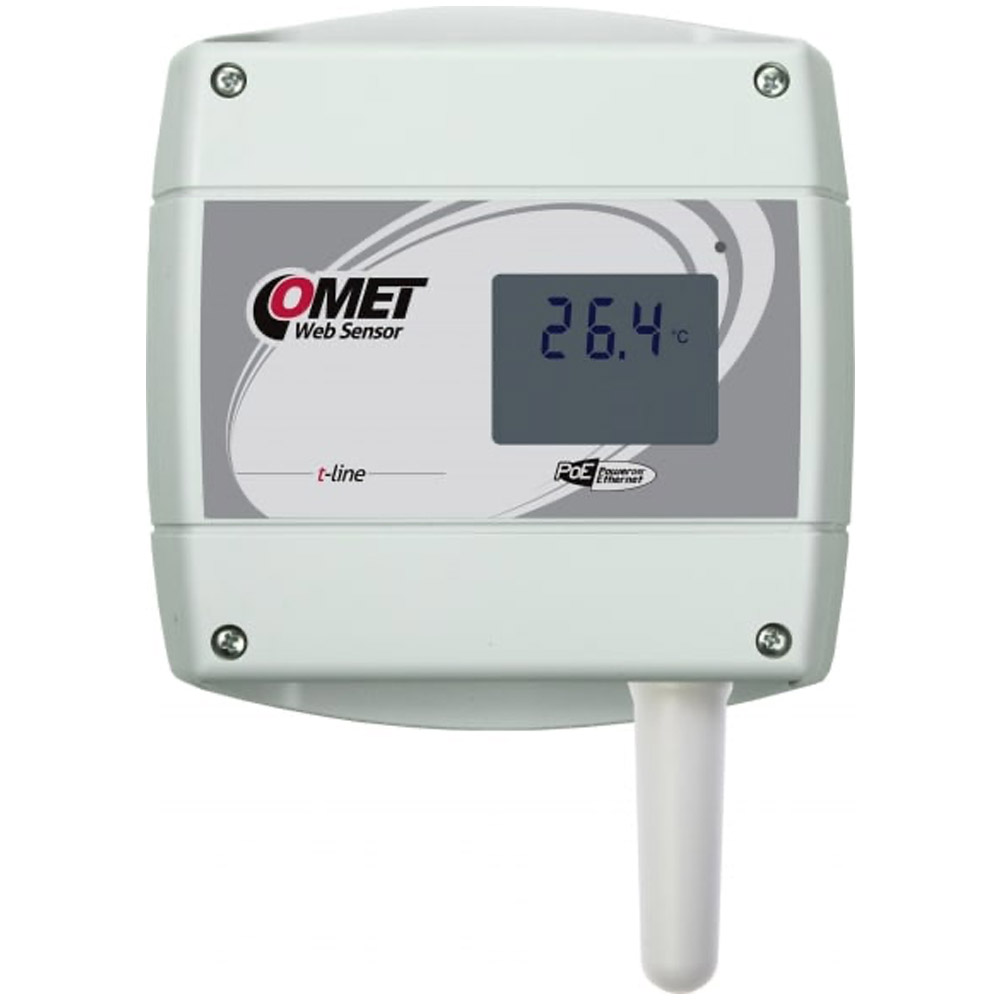

Web Sensor with PoE, Remote Thermometer with Ethernet Interface
Ambient temperature t-line Web sensor with Power over Ethernet feature. Remote alarm. PoE Web Sensor with built-in temperature sensor. Power over Ethernet feature according to IEEE 802.3af is supported.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
- Home Automation
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
- T-Sensor Software
- Free configuration utility for Comet Transmitters and Regulators.
- Sensor Reader Software
- Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
Manufacturer Specs
| Comet T0610 Specifications | |
| Technical Parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature |
| Construction Type | Ambient Air |
| Design | Industrial |
| Temperature Measuring Range | -20 to 60 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | Yes |
| Accuracy of temperature output | ±0.6°C |
| Resolution | 0.1°C |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Temperature operating range | -20 to +60°C |
| IP protection | IP30 |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Power | Power over Ethernet according to IEEE 802.3af or 5Vdc |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Dimensions | 136 x 179 x 45mm (W x H x D), stem length 53mm |
| Weight | approximately 320g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 80 C |
| Min Temperature | -30 C (-22 F) |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| IP Rating | IP30 |
| Product Weight | 1 LBS |
| Shipping Weight | 1.15 LBS |
| Country of Origin | Czech Republic |
