Descripción
Comet T3510
- Sensor ensures excellent long term calibration stability and Ultimate accuracy
- Specific humidity
- Mixing ratio and specific enthalpy
- 2m or 4m available optionally
- Dual-line LCD is an advantage
- High precision capacitive polymer sensor

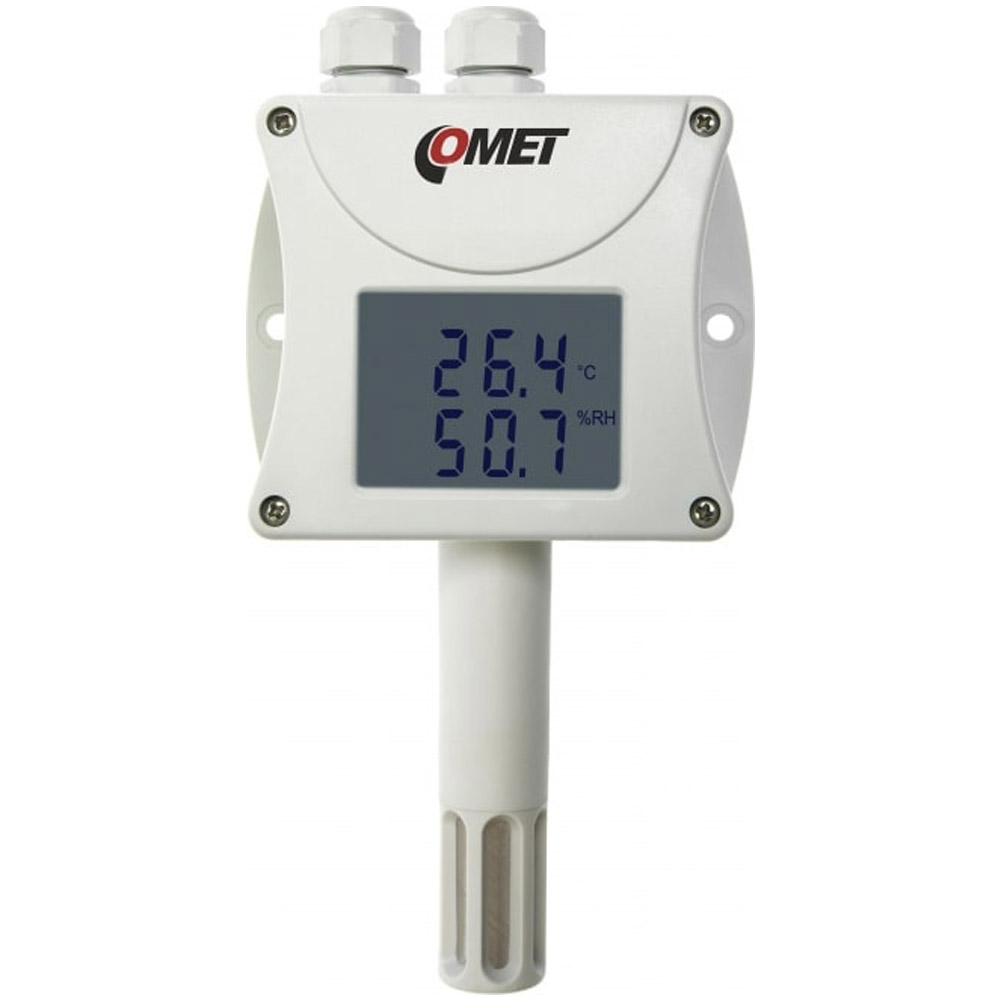

Remote Thermometer Hygrometer with Ethernet Interface
Ambient temperature, relative humidity, atmospheric pressure with two relay outputs. Requires external power supply A1515. High precision capacitive polymer sensor ensures excellent long-term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
- Home Automation
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Sensors.
- T-Sensor Software
- Free configuration utility for COMET sensor.
- SensorReader software
- Basic data acquisition utility for COMET Sensors. Software is free for download.
Manufacturer Specs
| Comet T3510 Specifications | |
| Technical Parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature + Relative Humidity |
| Construction Type | Ambient Air |
| Design | Industrial |
| Temperature Measuring Range | -30 to 80 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | No |
| Relative humidity range | 0 to 100% |
| Accuracy of relative humidity measurement | ±2.5% relative humidity from 5 to 95% at 23°C |
| Accuracy of temperature output | ±0.6°C |
| Resolution | 0.1°C, 0.1%RH |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Computed values | dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy |
| Accuracy and range of dew point temperature output – for more details see graphs in manual | ±1.5°C at ambient temperature lower than 25°C and RH>30% range -60 to +80°C |
| Temperature compensation of the humidity sensor | all temperature range |
| Temperature operating range | -30 to +80°C |
| IP protection | IP30 electronics |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Power | 9 to 30Vdc, maximum consumption 1W |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Dimensions | 88.5 x 147.5 x 39.5mm (W x H x D), stem length 75mm |
| Weight | approximately 155g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 80 C |
| Min Temperature | -30 C (-22 F) |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Product Weight | 0.34 LBS |
| Shipping Weight | 0.4 LBS |
| HTS/Schedule B Number | 9025.90.0600 |
| ECCN Number | EAR99 |
| Country of Origin | Czech Republic |
