Comet T3611
- Sensor ensures excellent long term calibration stability and Ultimate accuracy
- Specific humidity
- Mixing ratio and specific enthalpy
- 2m or 4m available optionally
- Dual-line LCD is an advantage
- High precision capacitive polymer sensor

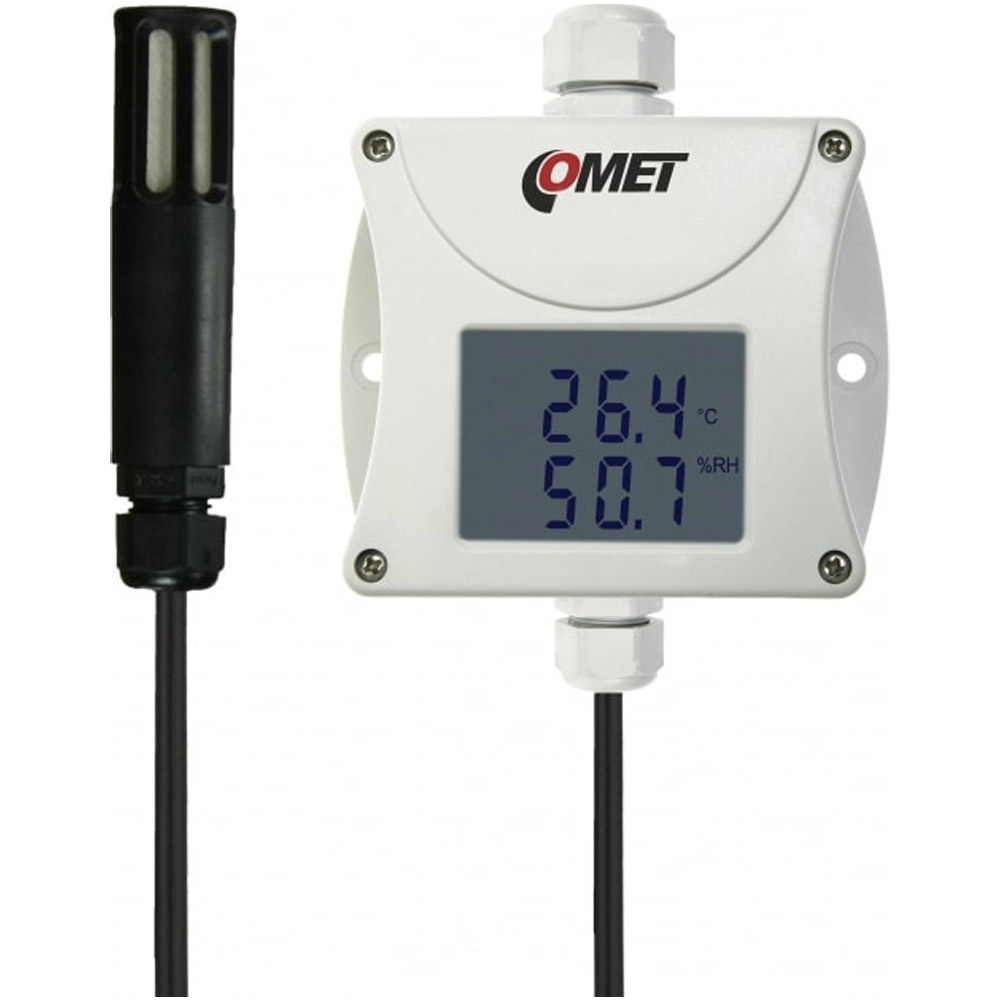

Web Sensor with PoE, Remote Thermometer Hygrometer with Ethernet Interface
Ambient temperature, relative humidity, atmospheric pressure with two relay outputs. PoE Web Sensor with relative humidity and temperature probe on the cable.
High precision capacitive polymer sensor ensures excellent long-term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
- Home Automation
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
- T-Sensor software
- Free configuration utility for Comet Transmitters and Regulators.
- Sensor Reader software
- Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
Manufacturer Specs
| Comet T3611 Specifications | |
| Technical Parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature + Relative Humidity |
| Construction Type | With T+RH Probe on Cable |
| Design | Industrial |
| Temperature Measuring Range | -30 to 105 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | Yes |
| Relative humidity range | 0 to 100% |
| Accuracy of relative humidity measurement | ±2.5% relative humidity from 5 to 95% at 23°C |
| Accuracy of temperature output | ±0.4°C |
| Resolution | 0.1°C, 0.1%RH |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Computed values | dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy |
| Accuracy and range of dew point temperature output – for more details see graphs in manual | ±1.5°C at ambient temperature lower than 25°C and RH>30% range -60 to +80°C |
| Temperature compensation of the humidity sensor | all temperature range |
| Temperature operating range | -20 to +60°C |
| IP protection | IP30 electronics, IP40 sensors |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Filtering ability of sensor cover | 0.025mm – filter with stainless steel mesh |
| Power | Power over Ethernet according to IEEE 802.3af or 5Vdc |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Length of the probe cable | 1m, 2m or 4m optionally |
| Dimensions | 136 x 159 x 45mm (W x H x D), probe length 88mm, probe diameter 18mm |
| Weight | approximately 380g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 105 C |
| Min Temperature | -30 C (-22 F) |
| LCD Screen | Yes |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Product Weight | 1 LBS |
| Shipping Weight | 1.15 LBS |
| Country of Origin | Czech Republic |
