Comet T7611
- Ethernet Interface
- Sensor ensures excellent long term calibration stability and Ultimate accuracy
- Specific humidity
- Mixing ratio and specific enthalpy
- 2m or 4m available optionally
- Dual-line LCD is an advantage
- High precision capacitive polymer sensor

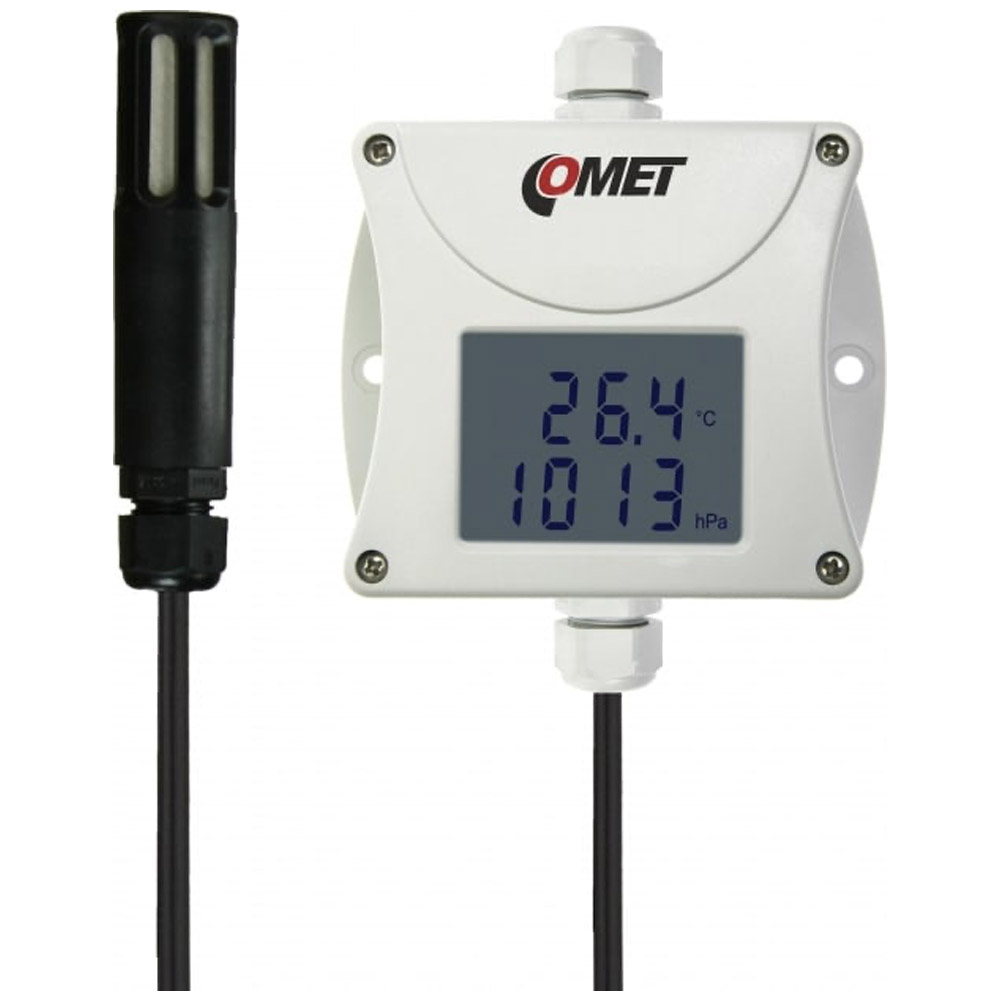

Web Sensor with PoE, Remote Thermometer Hygrometer Barometer with Ethernet Interface
Ambient temperature, relative humidity, atmospheric pressure t-line Web sensor with Power over Ethernet feature. Remote alarm. PoE Web Sensor with relative humidity and temperature probe on the cable. Built-in atmospheric pressure sensor.
High precision capacitive polymer sensor ensures excellent long-term calibration stability and ultimate accuracy. Dual-line LCD is an advantage. Power over Ethernet feature according to IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, and specific enthalpy.
Applications
- Server Rooms Monitoring
- Museums, archives, galleries
- Building HVAC Management
- Factories and Manufacturing
- Warehouses
- Air-Conditioned Room
- Home Automation
Software
- Comet Database
- Complex solution for data acquisition and analysis. Easy to use and high flexible Database software for Comet Transmitters and Regulators.
- T-Sensor software
- Free configuration utility for Comet Transmitters and Regulators.
- Sensor Reader software
- Basic data acquisition utility for Comet Transmitters and Regulators. Software is free for download.
Manufacturer Specs
| Comet T7611 Specifications | |
| Technical parameters | Value |
| Output | Ethernet |
| Measured Value | Temperature + Relative Humidity + Atmospheric Pressure |
| Construction Type | With T+RH Probe on Cable |
| Design | Industrial |
| Temperature Measuring Range | -30 to 105 °C |
| Relay Output | No |
| Two-State Input | No |
| Lcd Display | Yes |
| PoE | Yes |
| Relative humidity range | 0 to 100% |
| Accuracy of relative humidity measurement | ±2.5% relative humidity from 5 to 95% at 23°C |
| Accuracy of temperature output | ±0.4°C |
| Maximum measuring atmospheric pressure range | 600 to 1100hPa |
| Accuracy of atmospheric pressure | ±1.3hPa at 23°C |
| Available atmospheric pressure units | hPa, kPa, mBar, mmHg, inHg, inH2O, PSI, oz/in2 |
| Resolution | 0.1°C, 0.1%RH, 0.1hPa |
| Measuring interval | 2s |
| Available temperature units | degrees Celsius, degrees Fahrenheit |
| Computed values | dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy |
| Accuracy and range of dew point temperature output – for more details see graphs in manual | ±1.5°C at ambient temperature lower than 25°C and RH>30% range -60 to +80°C |
| Temperature compensation of the humidity sensor | all temperature range |
| Temperature operating range | -20 to +60°C |
| IP protection | IP30 electronics, IP40 sensors |
| LAN connection | RJ-45 connector, 10Base-T or 100Base-TX |
| Communication protocols | WWW, ModbusTCP, SNMPv1, SOAP, XML |
| Alarm protocols | E-mail, SNMP Trap, Syslog |
| Configuration | T-Sensor, WWW configuration |
| Filtering ability of sensor cover | 0.025mm – filter with stainless steel mesh |
| Power | Power over Ethernet according to IEEE 802.3af or 5Vdc |
| Power connector | co-axial, diameter 5.5 x 2.1mm |
| Length of the probe cable | 1m, 2m or 4m optionally |
| Dimensions | 136 x 159 x 45mm (W x H x D), probe length 88mm, probe diameter 18mm |
| Weight | approximately 380g |
| Warranty | 3 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 105 C |
| Min Temperature | -30 C (-22 F) |
| Input Source | External Probe |
| Accuracy | ±0.4 °C |
| LCD Screen | Yes |
| Software Included | Yes |
Environmental Testers / Physical Property/Barometers and Altimeters Template |
|
| Wireless Capability | No |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Interfaces I/O | LAN / Ethernet |
| IP Rating | IP30, IP40 |
| Product Weight | 1 LBS |
| Shipping Weight | 1.15 LBS |
| HTS/Schedule B Number | 9032.89.6040 |
| ECCN Number | EAR99 |
| Country of Origin | Czech Republic |
