DeFelsko OTLKITXT – PosiTest OTL Oven Temperature Logger with Holder XT
PosiTest OTL with Holder XT
- Measures and records up to 40,000 datasets (240,000 readings) into 6 independent batches
- High temperature stainless steel barrier box with fiberglass insulation for long run times at high temperatures. Contains no silicone.
- 6 K-type thermocouple ports (channels)
The PosiTest OTL Oven Temperature Logger with included barrier box and holder is ideal for measuring oven temperature profiles.
- Download, view, and analyze batch data using PosiSoft Desktop Software. Export .CSV files for easy import into spreadsheets.
- Wide variety of probes available with 1.8, 3.6, or 6 m (6′, 12′, or 20′) stainless steel braided cables (sold separately)
The PosiTest OTL Oven Temperature Logger is used to log and profile the temperature of parts as they move through an oven. The PosiTest OTL records up to 40,000 datasets into 6 independent batches (groups). A Dataset consists of a measurement from each of the connected K-type thermocouple sensors. Measurements from up to 6 K-type sensors are recorded for up to 22 hours at a fixed interval of 2 seconds. A range of thermocouples are available to match specific application requirements.
The PosiTest OTL is available in two configurations. The PosiTest OTL XT features an enhanced holder with heatsink for greater endurance at high temperatures.
- PosiTest OTL Kit (OTLKIT) – Standard Kit includes the Holder
- PosiTest OTL XT Kit (OTLKITXT) – XT Kit includes the the Holder XT with phase change material (Heatsink).
| PosiTest OTL (OTLKIT) |
PosiTest OTL XT (OTLKITXT) |
|
| 150° C (302° F) |
90 minutes | 300 minutes |
| 200° C (392° F) |
65 minutes | 200 minutes |
| 250° C (482° F) |
50 minutes | 140 minutes |
| 300° C (572° F) |
not recommended | 100 minutes |
The chart and table above represent the combined thermal characteristics of the PosiTest OTL, Barrier Box and choice of Holder/Holder XT.
PosiSoft Desktop
FREE powerful desktop software (PC/Mac) for downloading, viewing, printing, and storing measurement data.
Add batch annotations, label individual channels, set threshold temperatures, and compare datasets to reference batches. Includes a customizable, templated PDF Report Generator. No internet connection required.
- Customizable PDF Report Generator
- Graph Readings for up to 6 channels and compare to stored reference profiles
- Store optimal cure reference profiles to compare measurement results
- Select one or more reference channels to plot alongside measurement data
- Start At Temperature sets the time to 00:00 when the selected channel reaches the threshold temperature, making it easier to compare logged batch results with reference data
- Use cursor to hover and identify individual channels (traces)
- Rename channels
- Add up to 3 Threshold Temperatures to calculate Time above Temperature
- Add an image to identify probe placement
- Add imagery and notes to any report

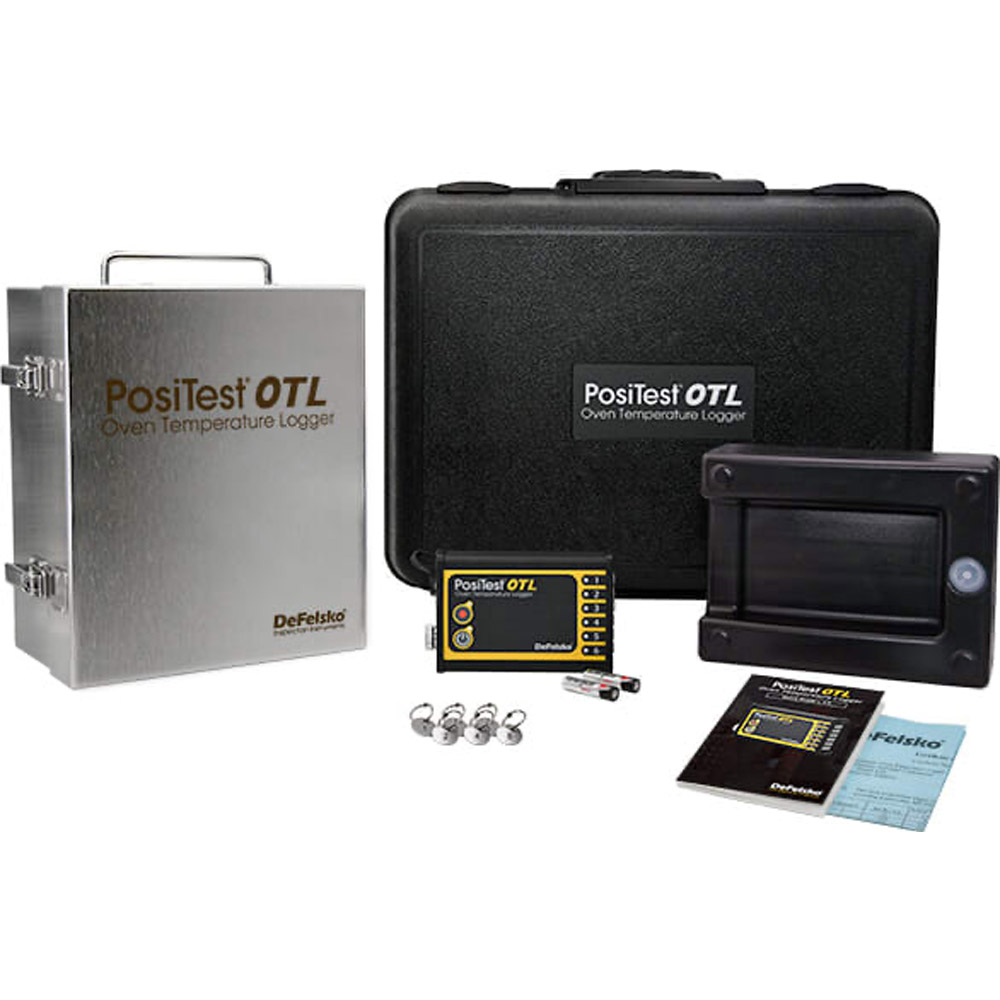

In The Box
- Temperature logger
- Stainless steel high temperature barrier box
- Holder XT
- 6 Engraved probe ID tags
- Two AAA batteries
- Instructions
- Long Form Certificate of Calibration traceable to NIST
- Carrying case
- USB Cable
- PosiSoft Desktop software
Manufacturer Specs
| PosiTest OTL Specifications | |
| Channels | 6 K-type non-grounded thermocouples |
| Thermocouple Measurement Range | -100° to 1000° C (-148° to 1832° F) |
| Logger Operating Temperature Range | 0° to 70° C (32° to 158° F) |
| Logger Accuracy | + 0.5° C (0.9° F) |
| Resolution | 0.1° C (0.1° F) |
| Thermal Time at Temperature Characteristics (PosiTest OTL + Holder/Holder XT + Barrier) | |
| 150° C (302° F) | PosiTest OTL: 90 minutes PosiTest OTL XT: 300 minutes |
| 200° C (392° F) | PosiTest OTL: 65 minutes PosiTest OTL XT: 200 minutes |
| 250° C (482° F) | PosiTest OTL: 50 minutes PosiTest OTL XT: 140 minutes |
| 300° C (572° F) | PosiTest OTL: not recommended PosiTest OTL XT: 100 minutes |
| Memory | 40,000 Datasets. Each Dataset consists of up to 6 channels. |
| Sampling Interval | 2 seconds (Fixed) | Maximum record time is 22 hours |
| Size | 22.68 x 27.76 x 14.80 cm (8.93” x 10.93” x 5.83”) |
| Weight | 9 kg (20 lbs.) |
| Weight includes the PosiTest OTL, Holder, and Barrier Box. Holder XT increases weight to 11 kg (25 lbs.) | |
| Power Source | 2 AAA batteries |
| Battery Life | 30 hours (recording time) |
| Interface | USB |
| Barrier Box | Stainless steel, NO silicone components |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | K |
| Max Temperature | 70 C |
| Min Temperature | 32 F |
| Power Source | Battery |
| Battery Life | 30 HR |
| Accuracy | ±0.5° C (0.9° F) |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | Includes the Holder XT with phase change material (Heatsink). |
| Warranty | 2 YEARS |
| Product Weight | 25 LBS |
| Product Height | 10.93 IN |
| Product Length | 5.83 IN |
| Product Width | 8.93 IN |
| Shipping Weight | 28.75 LBS |
| Data Logging | Yes |
| Calibration Included | NIST Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
