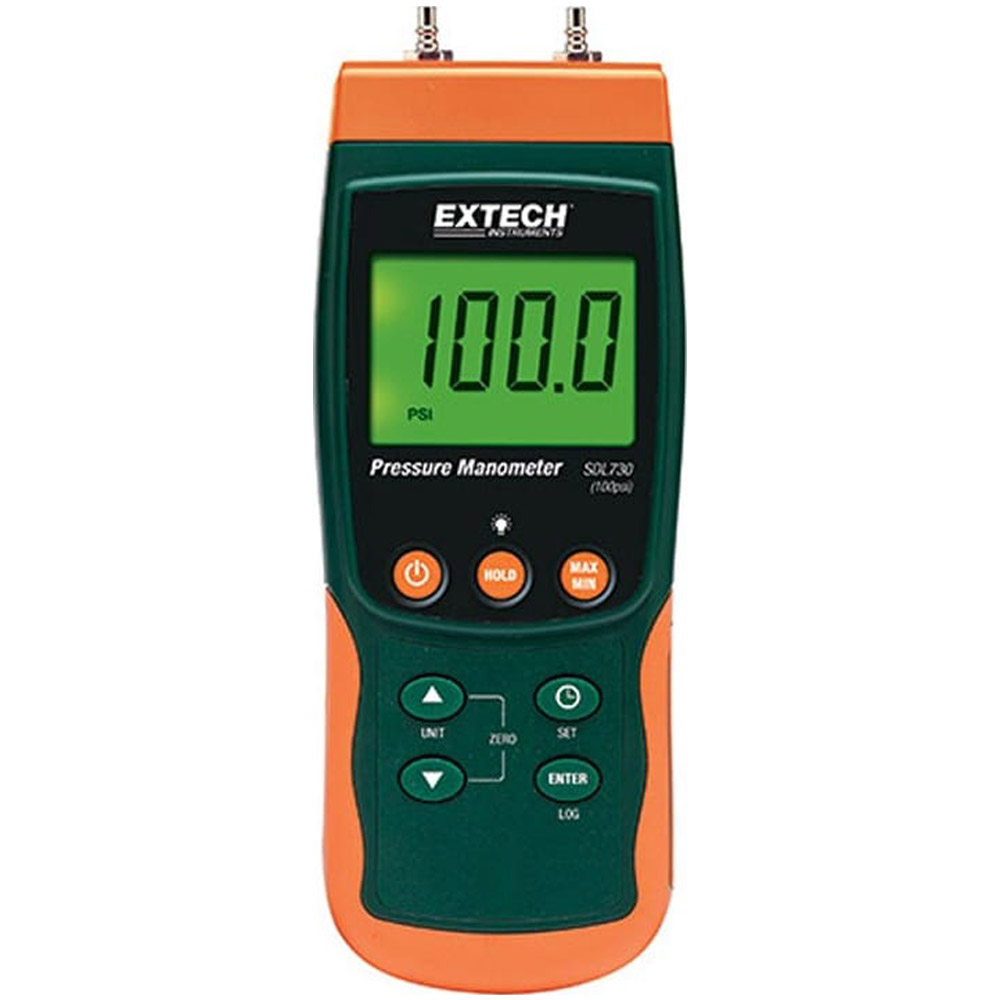

Extech SDL730 Differential Pressure Manometer/Datalogger (101.5psi/7000mbar)
- Large LCD display with backlighting
- Record/Recall Max/Min readings
- Stores 99 readings manually
Measure and datalog high-range 101.5psi (7000mbar) pressure readings.
Dual differential inputs with internal sensors.
Manually store up to 99 readings, while SD memory card (included) allows continuous datalogging and readings can easily be exported to an Excel® format for further analysis.
Applications:
- Power line
- Electric transmission equipment
- Microwave oven
- Air conditioner
- Refrigerator
- Computer monitor
- Video/audio device
- Particle accelerators
- MRI
- Industrial & research labs
- Transportation Systems
- Elevators
- Battery Power
- Wind Power
Manufacturer Specs
| General Specifications | ||
| Technical Data | Range (Max Resolution) | Basic Accuracy |
| psi | 101.5psi (0.05psi) | ±2%FS |
| kPa | 700kPa (0.5kPa) | ±1%FS |
| hPa | 7000hPa (5hPa) | ±2%FS |
| mmHg | 5250mmHg (5mmHg) | ±2%FS |
| kg/cm² | 7.135kg/cm² (0.005kg/cm²) | ±2%FS |
| mbar | 7000mbar (5mbar) | ±2%FS |
| inH₂O | 2810inH₂O (2inH₂O) | ±2%FS |
| mH₂O | 71.35mH₂O (0.05mH₂O) | ±2%FS |
| inHg | 206.7inHg (0.1inHg) | ±2%FS |
| Atmosphere | 6.905atm (0.005atm) | ±2%FS |
| Dimensions | 7.5 x 2.7x 1.8″ (190 x 68 x 45 mm) | |
| Weight | 0.59 lbs (265g) | |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Country of Origin | Taiwan |
