Descripción

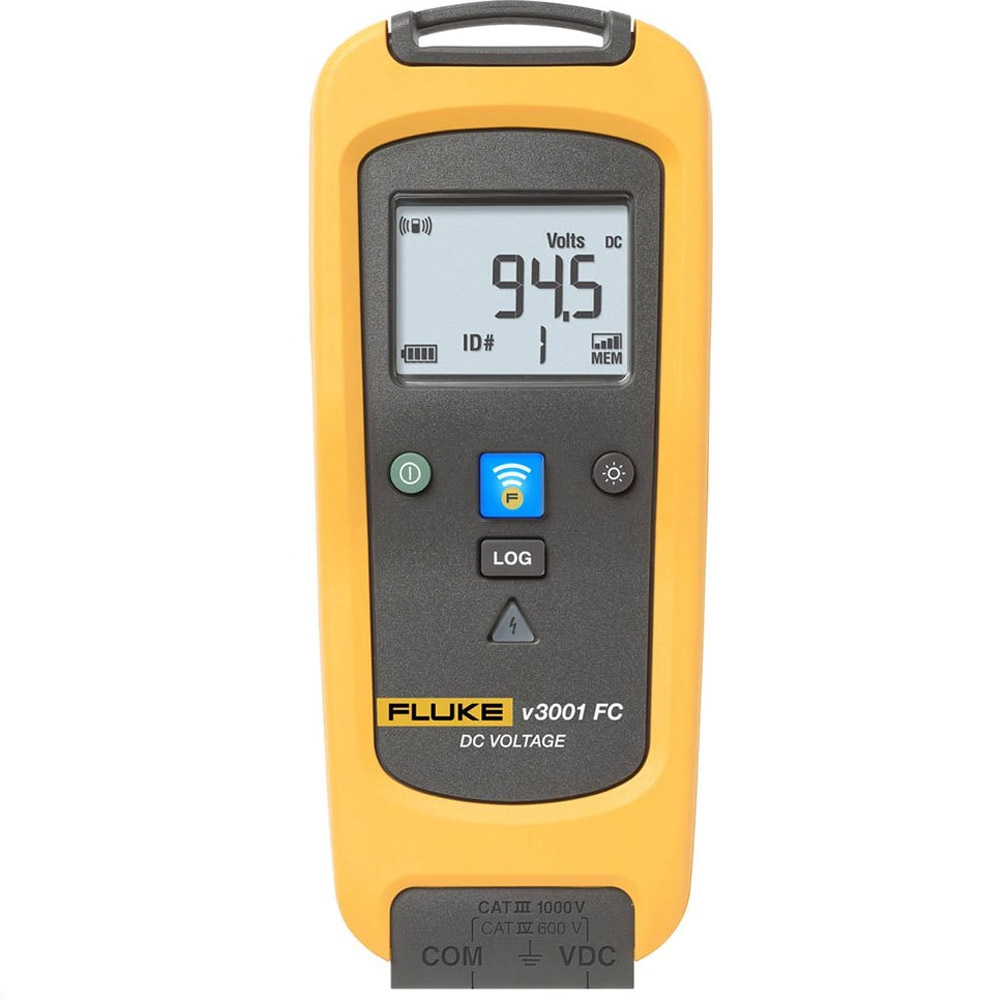

Fluke v3001 FC Wireless DC Voltage Module
A fully functional dc voltage meter that wirelessly relays dc voltage measurements to other Fluke Connect™ enabled master units, listed below.
- Fluke 3000 FC DMM
- Fluke Ti200/300/400 Infrared Camera
- PC via optional pc3000 FC Adapter
- Fluke Connect Mobile app
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 90 %. Accuracy specifications take the form of ±([ % of Reading ] + [ Number of least significant digits ]).All ranges are autoranging. Accuracy is specified from the range obtained by autoranging, from 18 °C to 28 °C. | |||
| DC voltage | |||
| Function | Range | Resolution | Accuracy |
| mV dc | 600.0 mV | 0.1 mV | 0.09 % + 3 |
| V dc | 6.000 V | 0.001 V | 0.09 % + 3 |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| 1000 V | 1 V | 0.15% + 2 | |
Fluke Connect
See it. Save it. Share it. All the facts, right in the field.
Fluke Connect with ShareLive ™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android ™ and iOS and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Supported smart phones:
- Android™ 4.3 & up
- iPhone® 4s & later
Manufacturer Specs
| V3001 FC General Specifications | |
| LCD w/backlight | 3 ½ digits, 6000 counts, 4/sec update rate |
| Battery type | 2 AA Alkaline batteries, NEDA 15A, IEC LR6 |
| Log rate/Interval | Adjustable by PC from 1 sec to 1 hr, default 1 min |
| Battery life | 400 hours |
| Memory | Record up to 65,000 readings |
| RF communications | 2.4 GHZ ISM Band |
| RF communication range | Open air, unobstructed: Up to 20 m Obstructed, sheetrock wall: Up to 6.5 m Obstructed, concrete wall or steel electrical enclosure: Up to 3.5 m |
| Operating temperature | -10 °C to +50 °C |
| Storage temperature | -40 °C to +60 °C |
| Temperature coefficient | 0.1 X (specified accuracy)/°C (< 18 °C or > 28 °C) |
| Relative humidity | 0 % to 90 % (0 °C to 35 °C), 0 % to 75 % (35 °C to 40 °C), 0 % to 45 % (40 °C to 50 °C) |
| EMC | IEC 61236-1, Portable |
| Safety compliance | IEC 61010-1, 600 V CAT IV / 1000 V CAT III, 3rd edition Pollution Degree 2 |
| Certifications | CSA, CE, FCC: T68-FBLE IC: 6627A-FBLE |
| Ingress Protection (IP) rating | IP42 |
| Pollution degree | 2 |
| Size (HxWxD) | 160 mm x 66 mm x 38 mm (6.3 in x 2.6 in x 1.5 in) |
| Weight | 0.255 kg (9 oz) |
| (Not compatible with Fluke CNX test tools) | |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Max Voltage | 1000 V |
| Min Voltage | 1 V |
| Power Source | Battery |
| Accuracy | 0.09 % + 3 |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | Measure up to 1000 V DC. Use as a standalone meter or as part of the system. Use the logging function for recording and saving up to 65,000 readings. |
| Warranty | 1 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth, Other, Wifi |
| IP Rating | IP42 |
| Product Weight | 9 OUNCES (0.562 LBS) |
| Product Height | 6.3 IN |
| Product Length | 1.5 IN |
| Product Width | 2.6 IN |
| Data Logging | Yes |
| ECCN Number | 3A992 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.05 IN |
| UPC | 095969724579 |
| Shipping Length | 9.50 IN |
| Shipping Width | 5.25 IN |
