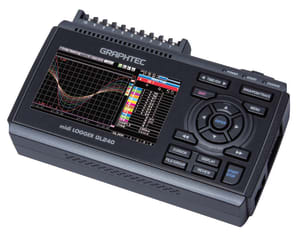

Graphtec GL240 10 Channels 4.3″ Color Display Data Logger
- Wireless LAN capability | remote monitoring & datalogging
- Flexible input system for wide array of applications
- Ability to access additional (GL100) sensors & adapters
- Extended memory capacity using SD memory card
- Max sampling interval up to 10ms
- Smartphone access
Graphtec GL240 is a third-generation data logger product with exceptional price/performance. It’s a 10 analog channel device augmented by four discrete inputs and outputs. Its discrete inputs can be configured as a group to be either logic inputs or pulse inputs. When configured for pulse, each of the four channels can be configured to measure frequency or to count. The four discrete outputs are alarms that can be triggered by a variety of easily-defined analog and pulse/discrete input channel conditions. The 10 GL240 analog input channels may each be configured to measure a direct connected voltage in the range of 20 mV to 100 V full scale across 12 ranges, or for a direct-connected thermocouple of any type to measure temperature. Each of the GL240’s analog input channels is electrically isolated from other channels and from power ground allowing off-ground measurements using shunts, as well as powered or grounded thermocouples.
The most powerful GL240 feature is its triggering flexibility. Data recording can be independently started or stopped as a function of analog and pulse/discrete signal level (single or windowed), alarm, date and time, and day-of-the-week. Triggers can also be configured to operate only once, or to automatically repeat. The ability to of the GL240 to adapt to virtually any desired trigger condition allows the instrument to operate unattended for long periods of time with complete autonomy.
The GL240 operates either connected to a PC or entirely stand-alone. Connection to a PC may be over a standard USB or optional wireless connection. Either connection approach may take advantage of supplied PC-side software to configure, acquire, display, and record digitized information for storage directly to the PC’s HDD. Acquired data may be retrieved for review and analysis after recording, including the ability to export to Microsoft Excel. Using the GL240’s wireless option enables the instrument’s networking features, allowing it to be remotely configured and managed using the standard Web browser of any computer or smart phone. Automatic backup of data acquired to a user-accessible SD memory card is also supported via its FTP facility.
Finally, the measurement reach of a wireless-enabled GL240 is further extended by use of the GL100 accessory. The GL100 wirelessly enables measurements of temperature/humidity, acceleration, CO2, illuminance, ac current, and more. Communicate with up to (1) GL100 unit with B-568 Wifi module
Sampling interval
This is used to set the sampling interval for data capture.
The table below shows the number of measuring channels*1 and sampling interval values that can be set.If data fluctuate due to noise, set the sampling interval to a value which enables the digital filter function.
| Number of Measuring Channels*1 | Allowed Sampling Interval | Sampling Interval which enablesDigital Filter |
| 1CH | 10ms or slower*2 | 50ms or slower |
| 2CH | 20ms or slower*2 | 125ms or slower |
| 3CH to 5CH | 50ms or slower*2 | 250ms or slower |
| 6CH to 10CH | 00ms or slower | 500ms or slower |
*1: «Number of Measuring Channels» is the number of channels in which input settings are NOT set to «OFF». (CHs in sensor and wireless sensor connected through the wireless unit are not included.)
*2: When the temperature setting is performed in 10, 20, or 50 ms sampling interval, the data capture cannot be performed
GGL240 Analog Input Circuit and Measurement Ranges
Each of the ten GL240 analog input channels offers isolation between them and ground. That means that a potential difference in the ground of one or more channels relative to each other, or relative to the power ground of the GL240 have little or no effect on measurements when used within spec. The isolation feature provides a tremendous advantage in terms of noise immunity while making typical measurements, and extends the reach of the instrument to include those that can only be made with an isolated configuration, like current shunts and powered and grounded thermocouples.
GGL240 Discrete I/O and Pulse Inputs
Depending upon the application, discrete I/O and pulse inputs can play a crucial data logging role. The GL240 supports four discrete alarm outputs that can signal alarm or event states that are a function of virtually any combinations of analog and pulse or discrete input values. These alarm outputs may be used to handshake with a PLC or other devices to start or stop processes or simply signal the beginning or end of events. The GL240 also offers four discrete input ports, which may be configured as simple binary true/false input flags, or for pulse and counter inputs. Pulse inputs can be used to acquire frequency data such as rpm or flow, or reconfigured to acquire count data to derive volume from flow or simply count the number of iterations from a process. Pulse data is neatly folded into acquired analog data so that all measured parameters can be evaluated in the same timeframe during analysis to easily identify cause and effect. A final discrete input is reserved for externally triggering the GL240’s A-D conversion to allow the instrument to synchronize to external processes. Access to all discrete I/O requires the B-513 cable option.
Wireless measurement using wireless LAN (option)
Wireless LAN option enables the wireless communication with other device.When the GL240 is set as a station, PC and smart devices will be able to access the WLAN unit directly.
Combining GL100-WL and GL240
GL100-WL cab now be connected to the GL240 as a remote sensor using the WLAN feature.GL240 supports 1 unit of the GL100-WL.

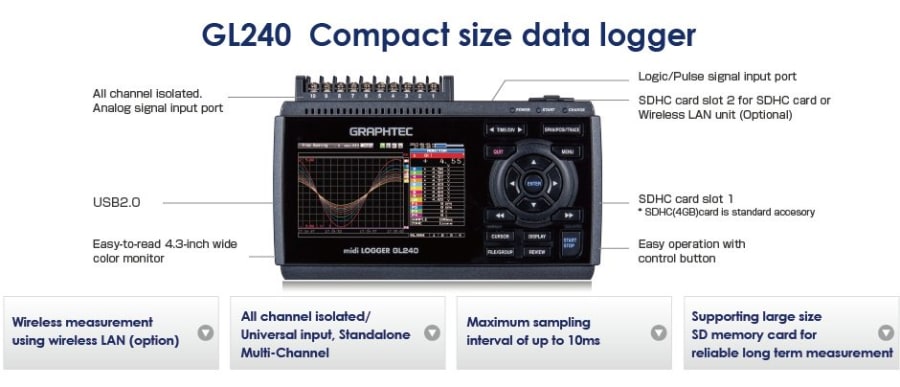

All channel isolated/Universal input, Standalone Multi-Channel
Its compact size contains an isolated input system which ensures that signals are not corrupted by inputs to other channels.
Maximum sampling interval of up to 10ms
Provides faster sampling rate 10ms for voltage measurement.
Supporting large size SD memory card for reliable long term measurement
4GB SD memory card comes as a standard accessory installed in the first slot.The captured data can be stored in GBD(Graphtec binary data) or CSV file format.
Manufacturer Specs
| Specifications | ||
| Number of analog input channels | 10 channels | |
| External input/ output *1 |
Input *2 | Trigger or Sampling (1 channel), Logic/Pulse (4 channels) |
| Output *3 | Alarm (4 channels) | |
| Sampling interval | 10 ms to 1 hour (10ms to 50ms: voltage only) *4, External signal | |
| Time scale of waveform display | 1sec. to 24 hour /division | |
| Trigger, Alarm function |
Trigger action | Start or stop capturing data by the trigger |
| Repeat action | Off, On (auto rearmed) | |
| Trigger source | Start: Off, Measured signal, Alarm, External, Clock, Week or Time Stop: Off, Measured signal, Alarm, External, Clock, Week or Time |
|
| Condition Setting | Combination: OR or AND Analog signal: Rising (High), Falling (Low), Window-in, Window-out Logic signal: Pattern (combination of each input signal in high or low) Pulse (number of count): Rising (High), Falling (Low), Window-in, Window-out |
|
| Alarm output | Outputs a signal when alarm condition occurs in the input signal *5 | |
| Pulse input function |
Rotation count (RPM) |
Counts the number of pulses per sampling interval and converts to rpm (rotations per minute), Number of pulses for one rotation may be set to 50, 500, 5000, 50k, 500k, 5M, 50M, 500M rpm/F.S. (rpm./Full Scale) |
| Accumulating count |
Accumulates the number of pulses from the start of measurement 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) |
|
| Instant count | Counts the number of pulses per sampling interval 50, 500, 5000, 50k, 500k, 5M, 50M, 500M C/F.S. (Counts/Full Scale) |
|
| Calculation function |
Between channels | Addition, Subtraction, Multiplication, and Division for analog input |
| Statistical | Select two calculations from Average, Peak, Maximum, Minimum, RMS | |
| Search function | Search for analog signal levels, values of logic or pulse or alarm point in captured data |
|
| Interface to PC | USB (Hi-speed), WLAN (using B-568 option) | |
| Storage device |
Media | 4 GB Internal Memory SD memory card (Support SDHC, up to 32 GB). Memory card not included |
| Saved contents | Captured data, Setting conditions, Screen copy | |
| Capturing mode | Mode: Normal, Ring, Relay Ring: Saves most recent data (Number of captured data: 1000 to 2000000 points) *7 Relay: Saves data to multiple files without losing data until data capturing is stopped |
|
| Replay Data | Replays captured data that was saved in the GL240 (in BGD or CSV format) | |
| Scaling (Engineering unit) function | Measured value can be converted to the specified engineering unit • Analog voltage: Converts using four reference points (gain, offset) • Temperature: Converts using two reference points (offset) • Pulse count: Converts using two reference points (gain) |
|
| Action during data capture | • Displaying parst data (using dual display mode (Current + Past data)) • Hot-swapping the SD memory card • Saving data in between cursors |
|
| Display | Size | 4.3-inch TFT color LCD (WQVGA: 480 x 272 dots) |
| Language | English, French, German, Chinese, Korean, Russian, Spanish, Japanese | |
| Information *8 | Waveform in Y-T with digital values, Waveform only, Digital value, Digital values and statistics values |
|
| Operating environment | 0 to 45 ºC, 5 to 85 % RH (non condensed) (When operating with battery pack 0 to 40 ºC, charging battery 15 to 35 ºC) |
|
| Power source | AC adapter | 100 to 240 V AC, 50/60 Hz (1 pc of adapter is attached as standard accessory) |
| DC power | 8.5 to 24 V DC (DC drive cable (option B-514) is required) | |
| Battery pack | Mountable battery pack (battery pack (option B-517): 7.2V DC, 2900mAh) | |
| Power consumption *9 | Max. 36 VA | |
| External dimensions (W x D x H) | Approx.188 x 117 x 42 mm (Excluding projections) | |
| Weight *10 | 500 g | |
- *1
- Input/Output cable for GL (option B-513) is required to connect the signal.
- *2
- Input signal;
- Voltage range: Up to 24V (common ground)
- Signal type: Voltage, Open collector, Contact (relay)
- Threshold: Approx. + 2.5 V (Hysteresis: Approx. 0.5V (2.5V to 3V))
- *3
- Output signal: Open collector (pull-up to 5V by 10kΩ resistor)
- Voltage: Max. 30V
- Current: Max. 0.5A
- Collector dissipation: Max. 0.2W
- *4
- Minimum interval varies by number of channels used.
- *5
- Output port can be specified in each input channel.
- *7
- Size of the capture data will be limited to 1/3 of available memory.
- *8
- Display mode is switched every time the dedicated key is pressed. In magnified digital value mode, the displayed channel number can be specified. In the waveform display mode, the changing of the time scale will be effective from the point of the next displayed data.
- *9
- Rating under maximum power consumption using the AC adapter, with LCD display on, and battery pack being
charged. - *10
- Excludes AC adapter and battery pack.
| Software specifications for PC | ||
| Model name | GL100_240_840-APS | |
| Supported OS | Windows 8.1, 8, 7, Vista (32/64-bit edition) | |
| Supported device | GL840 (USB, Ethernet, WLAN), GL240 (USB, WLAN), GL100 (USB, WLAN) | |
| Functions | Control the GL series, Real-time data capture, Replay data, and Data format conversion | |
| Supported units & channels | Up to 1000 channels total, Up to 4 groups (number of units is limited by model) | |
| Settings control | Input condition, Captuering condition, Trigger/Alarm condition, Report, etc. | |
| Capturing data | Saved to PC | Saves captured data in real time (in GBD binary or CSV format) |
| Saved to GL unit | Saves to the SD memory card (in GBD binary or CSV format) | |
| Displayed information | Y-T waveform, Digital values, Report, X-Y graph (specified period of data, data reply only), Two displays for the current and past data, and Statistical calculation |
|
| File operation | Converting data format to CSV from GBD binary, merge multiple data files in the time axis or as an additional channel |
|
| Warning function | Send e-mail to the specified address when the alarms occur | |
| Statistical calculation | Maximum, Minimum, and Avarage during data capturing | |
| Report function | Creates the daily or monthly report automatically | |
| Software specifications for Smart device | |
| Model name | GL-Connect |
| Supported OS | Android 4.1 to 4.4, iOS 7/8 |
| Supported device | GL840 (WLAN), GL240 (WLAN), GL100 (WLAN) |
| Functions | Control the GL series, Display measured data in waveform or digital value |
| Supported units | Up to 10 units |
| Settings control | Start/Stop, Sampling interval |
| Capturing data | Saves captured data in the GL main body (data cannot be saved in the smart device) |
| Displayed information | Data captured in real time by digital value, Replay the data stored in the GL body by the waveform |
| Wireless LAN unit (option) specifications | |
| Model number | B-568 |
| Supported GL series | GL840, GL240 |
| Communication method | Wireless communication (using radio waves in the 2.4GHz band) |
| Supported WLAN system | IEEE802.11b/g/n WPS: Push button or PIN method Security protocols: WEP64, WEP128, WPA-PSK/WPA2-PSK, AKIP/AES Communication distance: Approx. 40m (depending on the conditions of radio communication) |
| Installed location | Attached to the SD CARD slot number 2 on the GL840/GL240 *When the wireless LAN unit is installed, the SD memory card cannot be used in slot number 2 |
| Function | Access Point mode: Communicate with the GL100-WL as a remote sensor (captured data in the GL100-WL is transferred to GL840/GL240) Station mode: Communicate with PC or Smart device (control GL840/GL240 and transfer the data from GL840/GL240) |
| Connected number of GL100-WL | GL840: Up to 5 units of the GL100-WL GL240: 1 unit of the GL100-WL |
| GL240 Analog input specifications | ||||
| Input method | All channels isolated balanced input *11, Scans channels for sampling | |||
| Type of input terminal | Screw terminal (M3 screw) | |||
| Measurement range |
Voltage | 20, 50, 100, 200, 500 mV, 1, 2, 5, 10, 20, 50, 100 V, and 1-5V F.S. (Full Scale) | ||
| Thermocouple | Type: K, J, E, T, R, S, B, N, and W (WRe5-26) | |||
| Humidity | 0 to 100 % RH – using the humidity sensor (option B-530) | |||
| Filter | Off, 2, 5, 10, 20, 40 (moving average in selected number) | |||
| Measurement accuracy *12 |
Voltage | ± 0.1% of F.S. (Full Scale) | ||
| Temperature (Thermocouple)*13 |
Type | Measurement range (TS: Temp Sense) |
Measurement accuracy | |
| R | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ||
| 100 < TS ≤ 300 ºC | ± 3.0 ºC | |||
| 300 < TS ≤ 1600 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
| S | 0 ≤ TS ≤ 100 ºC | ± 5.2 ºC | ||
| 100 < TS ≤ 300 ºC | ± 3.0 ºC | |||
| 300 < TS ≤ 1760 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
| B | 400 ≤ TS ≤ 600 ºC | ± 3.5 ºC | ||
| 600 < TS ≤ 1820 ºC | ± (0.05% of rdg. + 2.0 ºC) | |||
| K | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ||
| -100 < TS ≤ 1370 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
| E | -200 ≤ TS ≤ -100 ºC | ± (0.05% of rdg. + 2.0 ºC) | ||
| -100 < TS ≤ 800 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
| T | -200 ≤ TS ≤ -100 ºC | ± (0.1% of rdg. + 1.5 ºC) | ||
| -100 < TS ≤ 400 ºC | ± (0.1% of rdg. + 0.5 ºC) | |||
| J | -200 ≤ TS ≤ -100 ºC | ± 2.7 ºC | ||
| -100 < TS ≤ 100 ºC | ± 1.7 ºC | |||
| 100 < TS ≤ 1100 ºC | ± (0.05% of rdg. + 1.0 ºC) | |||
| N | -200 ≤ TS < 0 ºC | ± (0.1% of rdg. + 2.0 ºC) | ||
| 0 ≤ TS ≤ 1300 ºC | ± (0.1% of rdg. + 1.0 ºC) | |||
| W | 0 ≤ TS ≤ 2000 ºC | ± (0.1% of rdg. + 1.5 ºC) | ||
| R.J.C. | ± 0.5 ºC | |||
| A/D converter | Sigma-Delta type, 16 bits (effective resolution: 1/40000 of the measuring full range) | |||
| Maximum input voltage |
Between (+) / (-) terminal |
20 mV to 1 V range: 60 Vp-p, 2 V to 100 V range: 110 Vp-p |
||
| Channels ((-) / (-)) | 60 Vp-p | |||
| Channel / GND | 60 Vp-p | |||
| Max. voltage (withstand) |
Between channels | 350 Vp-p (1 minute) | ||
| Channel / GND | 350 Vp-p (1 minute) | |||
- *11
- The terminal «b» for using the RTD is connected each other across all channels.
- *12
- Subject to the following conditions:
- Room temperature is 23 oC ± 5 oC.
- When 30 minutes or more have elapsed after power was turned on.
- Filter is set to 10.
- Sampling rate is set to 1 sec, using 10-channel.
- GND terminal is connected to ground.
- *13
- Wire size of thermocouple used is 0.32mm diameter in the T type and 0.65mm diameter in other types.
| B-569 Optional Battery Information | |
| Item | Description |
| Capacity | 7.2V / 2900mAh |
| Battery type | Lithium secondary battery |
| Running time | When using the LCD display: approx. 6 hours When using the screensaver: approx. 7 hours *1-sec sampling, capturing to internal memory (SD1), new battery pack, and +25°C environment *The running time depends on the operating environment. *When the empty battery is charge in the GL220/820/900, the charging in about 80-90% will stop. Once disconnected and connect the AC adapter, or remove and insert the battery pack. The battery pack charging is started in order to charge up to 100%. (It depends on the remaining capacity.) |
| Charging method | Mount in the main unit |
| Time required to charging | approx. 4.5 hours |
| Switch over in the event of a power failure | Because the battery is used together with the AC adapter, the power supply will be switched automatically to the battery in the event of a power failure. *The AC adapter is the primary power source |
| Operation environment | Running on battery: 0 to 40°C Battery being charged: 15 to 35°C |
| Other functions | *When the battery is running low, file is closed automatically *Remaining amount indicator |
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | DAQ System, Data Logger, Videographic |
| Style (Recorders) | Behind Panel / DIN Rail Mount, Bench / Portable, PC Based |
| # Channels Base Unit (Recorders) | 10 EA |
| Display (Recorders) | Built-in, Included w/ Base Unit |
| # Logic / Digital Channels (Recorders) | 4 channels |
| Sampling Interval (Controllers/Recorders) | 10 ms |
| Sampling Frequency (Recorders) | 100 S/s (0.0001 MS/S) |
| Input Types (Controllers/Recorders) | Current / 4-20 mA, Digital / Logic / On-Off, Frequency / Pulse, T/C – RTD, Voltage |
| Output Types (Controllers/Recorders) | Relay |
| Bits | 16 |
| Power Source | AC Line, Battery, DC Line |
| Screen Size | 4.3 IN |
| Special Functions (Recorders) | External Trigger, Flow / Speed Totalization, Logic / Ladder / Math, PC Software Available, Software / Visible Alarms |
| Data storage | Yes |
| Isolated Inputs (Recorders) | Yes |
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
| Accuracy | Voltage: ±0.1% of Full Scale
Temperature (Thermocouple): |
Test Equipment General Attributes |
|
| Unique Features | Wireless Option B-568 module sets the device as terminal node or access point network for 801.11n wireless network.
Engineering Scaling allows ability to read most industrial signals including frequency, tachometer, flow signals, pressures signals, and speed signals. |
| Warranty | 1 YEARS |
| Safety Approval | CE, UL |
| Interfaces I/O | LAN / Ethernet, Analog Input , Profibus, USB |
| Storage | Internal Memory, SD Card |
| Product Weight | 1.1 LBS |
| Product Height | 1.65 IN |
| Product Length | 7.4 IN |
| Product Width | 4.6 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal |
| Country of Origin | Japan |
Valoraciones
No hay valoraciones aún.
