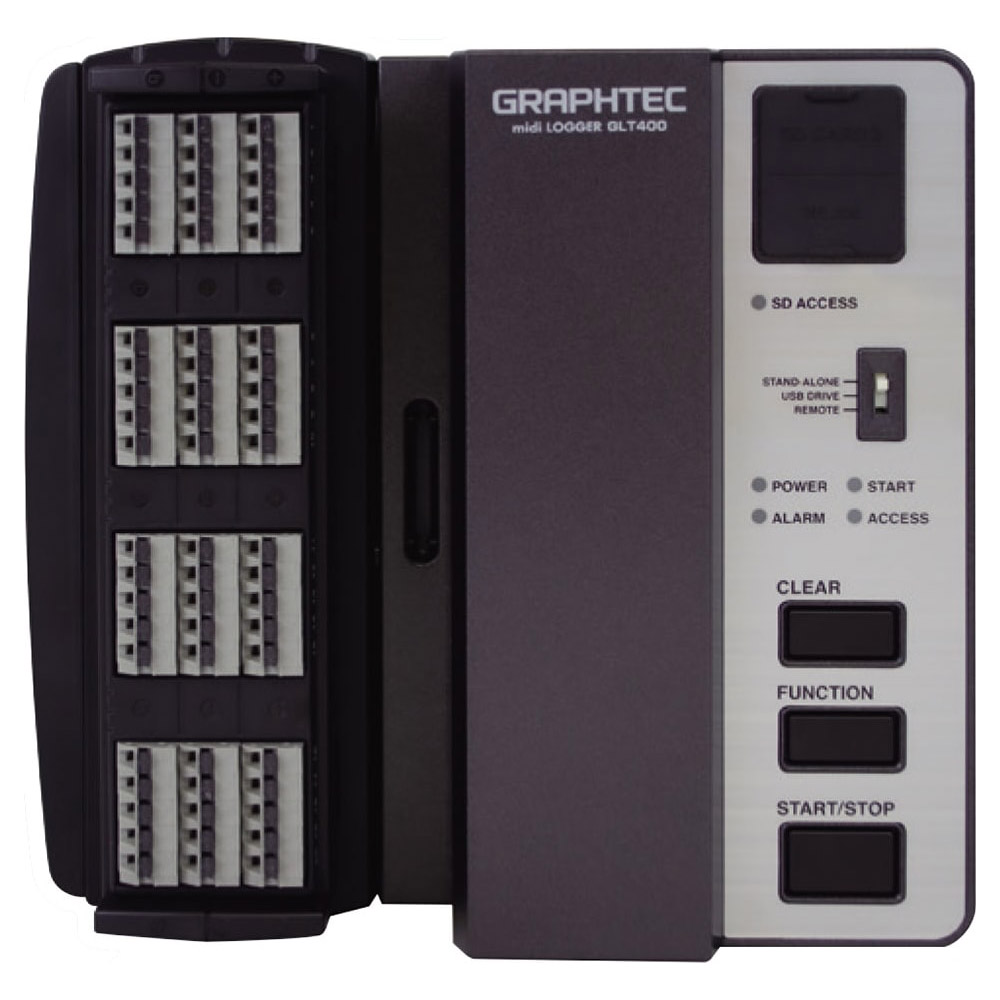

Graphtec GLT400 Multi-use Data Logger midi Logger
- Data collection from the PLC via Modbus/TCP protocol ・Adaptable to a wide range of operating environment (-20ºC to +60 ºC ) (Conditional)
- Supports WEB server, FTP server and FTP client network functions for remote monitoring and controlling.
- High Isolation inputs to ensure signals are not corrupted by noise from other channels
- Connect as a remote terminal unit of GL840
Useful functions of GLT400
Mount or embedded into the systemand remote monitoring by PC.
Real time remote monitoring andcontrol via Ethernet, Wireless LAN* and USB(Software is standard accessories)
Enable to transfer the data to the PLC. It can be used as additional I/Os.
Bidirectional comminucation between PLC and GLT400 via Modbus /TCP, Start or stop command can be sent from PLC.
Connect as a remote terminal unit of GL840
Communications via Ethernet or Wireless LAN*.(Expand up to 200 ch (incl.GLT400) per GL840 orUp to 5 units of GLT400 can be connected)Setup and control from GL840 and captured datacan be stored on GL840 which is measured from GLT400.
Configuration
Expandability allows flexibility to configure for different measurement conditions
Expandable up to 200 channels
Direct connecting the extension terminal bases extension terminal base unit connects directly to the GLT400.
Cable connection between the extension terminal base (Max.20m for 10pcs) extension terminal base unit connects to the GLT400 via extension terminal connection cable.
Extension terminal connection cable (B-567 Series)
Manufacturer Specs
| General Specification | |
| Number of analog terminal units | Maximum 10 units (200CH) |
| How to connect Analog Terminal Unit | Direct-connect or connect with the extension terminal connection cable (sold separately) between the GLT400 and terminal unit, or between terminal units. Cables are 50cm or 2m length |
| Memory devices | |
| Memory capacity(*1) | Internal memory (MEM)：approx. 4GB SD CARD slot：1 (Compatible with SDHC, up to approx. 32GB memory available. The memory format only supports FAT/FAT32. ) |
| Memory contents | Setup conditions, Measured data |
| PC Software | Standard Accessories (GLT400 Setting App, GL-Connection） |
| PC I/F | |
| Types | Ethernet(10BASE-T/100BASE-TX),USB 2.0,Wireless LAN (Option) |
| Functions | Setup and control of the GLT400 from PC, Data transfer to the PC ,Connect to network as a remote terminal unit of GL840 |
| Ethernet functions | Web server functions, FTP server function, FTP client function,NTP client function,DHCP client function,Modbus/TCP Protocol |
| USB functions | USB drive mode：Transfer and delete the captured les in the internal memory or SD CARD |
| Operating Environment | -20 to 60°C (Temperatures vary by analog terminal, AC adapter: 0 to 45°C) 5 to 85%R.H.(non condensed)(When using the USB PD as the power supply, the spec. is based on power supply requirements.) |
| Power source | |
| AC adapter | 100 to 240 V AC, 50/60 Hz |
| DC power | 8.5 to 24V DC (maximum 26.4V) (DC drive cable (option B-514) is required) |
| USB PD | USB PD compatible, external USB PD compatible battery (USB Power Delivery Revision 2.0 later) |
| External dimensions (approx.) [W×D×H（] *2） | Input terminal (B-564) or Screwless terminal (B-564SL) is attached: 187.5 × 183 × 65.5 mm (excluding protrusions) Input terminal (B-565): 187.5×183×65.5mm (excluding protrusions) |
| Weight (approx.)（*2） | 1120g (In case input terminal (B-565) is attatched: Di er according to terminal type) |
| Others | Vibration -tested condition: Automobile parts Type 1 Class A equivalent |
| *1 : Possible to save up to 2GByte for one le *2 : Main unit, Anlalog terminal and Terminal base unit are installed. AC adapter is not included in dimensions and weight speci cation. |
|
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | Data Logger |
| Style (Recorders) | Bench / Portable |
| Sampling Interval (Controllers/Recorders) | 10 ms |
| Sampling Frequency (Recorders) | 10 MS/S |
Test Equipment General Attributes |
|
| Shipping Weight | 3.00 LBS |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
