Descripción

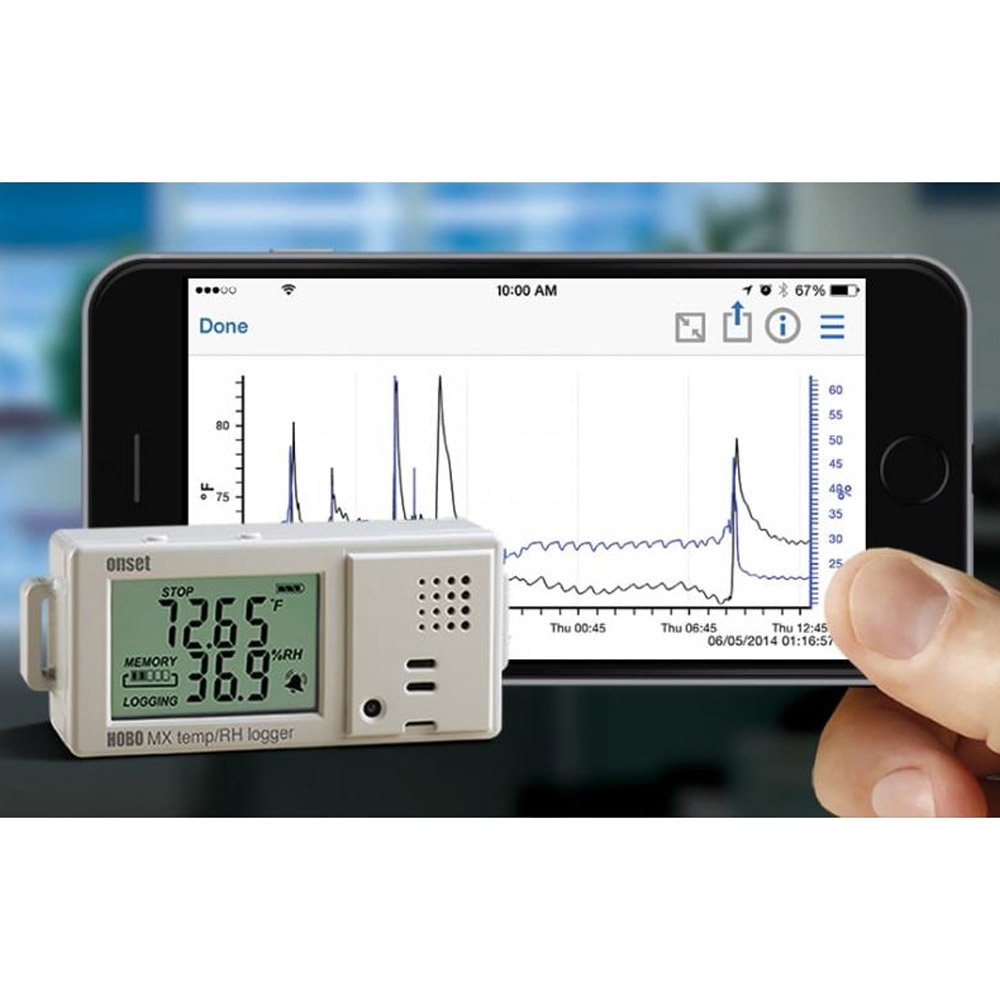

The self-contained wireless data logger, which works with Onset’s free HOBOmobile® app for logger setup and data management, enables you to access data anytime from mobile device for iOS or Android over a 100-foot range, and it requires no dedicated equipment beyond a mobile device for configuring the logger or reading out data.
Using Onset’s free HOBOmobile® app, you can view data in graphs, check the operational status of loggers, configure alarm notifications, and share data files.
Environment:
The MX1101 Data Logger is for use in Indoor environments.
Measurements:
The MX1101 Data Logger supports the following measurements:Temperature, Relative Humidity.
IMPORTANT: The HOBO MX1101 data logger requires the HOBOmobile App and a compatible mobile device.
Manufacturer Specs
| Temperature Sensor | |
| Range | -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F), see Plot A |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F), see Plot A |
| Drift | <0.1°C (0.18°F) per year |
| RH Sensor | |
| Range | 1% to 90% |
| Accuracy | ±2% from 20% to 80% typical at 25°C (77°F), see Plot B |
| Hysteresis | ±2% RH |
| Resolution | 0.01% at 25°C (77°F) |
| Drift | <1% per year typical |
| Response Time | |
| Temperature | 7:30 minutes in air moving 1 m/s (2.2 mph) |
| RH | 20 seconds to 90% in airflow of 1 m/s (2.2 mph) |
| Logger | |
| Radio Power | 1 mW (0 dBm) |
| Transmission Range | Approximately 30.5 m (100 ft) line-of-sight |
| Wireless Data Standard | Bluetooth Smart (Bluetooth Low Energy, Bluetooth 4.0) |
| Logger Operating Range | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) |
| Logging Rate | 1 second to 18 hours |
| Logging Modes | Fixed interval (normal, statistics) or burst |
| Memory Modes | Wrap when full or stop when full |
| Start Modes | Immediate, push button, date & time, or next interval |
| Stop Modes | When memory full, push button, date & time, or after a set logging period |
| Restart Mode | Push button |
| Time Accuracy | ±1 minute per month at 25°C (77°F), see Plot C |
| Battery Life | 1 year, typical with logging interval of 1 minute. Faster logging and/or statistics sampling intervals, entering burst logging mode, and remaining connected with HOBOmobile will impact battery life. Excessive readouts, checking of Full Status Details, audible alarms, and paging all impact battery life. Visual alarms and other events can have a marginal impact on battery life. |
| Battery Type | Two AAA 1.5 V alkaline batteries, user replaceable |
| Memory | 128 KB (84,650 measurements, maximum) |
| Full Memory Download Time | Approximately 60 seconds; may take longer the further the device is from the logger |
| LCD | LCD is visible from 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) |
| Weight | 56 g (1.98 oz) |
| Environmental Rating | IP50 |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 158 F (70 C) |
| Min Temperature | -4 F |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F) |
| LCD Screen | Yes |
| RH | 90 % |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP50 |
| Product Weight | 56 GRAMS (0.123 LBS) |
| Data Logging | Yes |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Other Information | Size:: 3.66 x 8.48 x 2.29 cm (1.44 x 3.34 x 0.9 in.) |
