Descripción

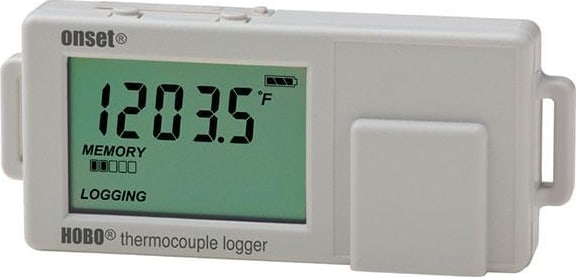

The HOBO UX100-014M Single Channel Thermocouple data logger records temperature in indoor environments with thermocouple sensors (sold separately). Designed for a broad range of monitoring applications – from industrial process monitoring to concrete maturity testing – the logger provides exceptional flexibility by accepting J, K, T, E, R, S, B or N type thermocouple probes.
IMPORTANT: This HOBO data logger requires HOBOware software and a communications device.
Manufacturer Specs
| Internal 10K Thermistor (Temperature) | |
| Range | Logging: -20° to 70°C (-4° to 158°F) |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F) |
| Resolution | 0.024°C at 25°C (0.04°F at 77°F) |
| Drift | <0.1°C (0.18°F) per year |
| Logger | |
| Logger Operating Range | Logging: -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing); logger accuracy from 0° to 50°C (32° to 122°F) Launch/Readout: 0° to 50°C (32° to 122°F) per USB specification |
| Resolution | 22-bit |
| Logging Rate | 1 second to 18 hours, 12 minutes, 15 seconds |
| Logging Modes | Normal, Burst or Statistics |
| Memory Modes | Wrap when Full or Stop when Full |
| Start Modes | Immediately, Push Button, Date & Time or Next Interval |
| Stop Modes | When Memory Full, Push Button, or Date & Time |
| Restart Mode | Push Button |
| Time Accuracy | ±1 minute per month at 25°C (77°F) |
| Battery Life | 1 year, typical with logging rate of 1 minute and sampling interval of 15 seconds or greater |
| Battery Type | One 3V CR2032 lithium battery |
| Memory | 512 KB (208,076 measurements, maximum) |
| Download Type | USB 2.0 interface |
| Full Memory Download Time | 1 minute, 30 seconds |
| LCD | LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) |
| Weight | 30 g (1.06 oz) |
| Environmental Rating | IP50 |
| The CE Marking identifies this product as complying with all relevant directives in the European Union (EU) | |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | E, J, K, Other, S, T |
| Max Temperature | 1820 C |
| Min Temperature | -260 C (-436 F) |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| # Inputs/Channels | 1 |
| Accuracy | ±0.21°C from 0° to 50°C (±0.38°F from 32° to 122°F) |
| LCD Screen | Yes |
Test Equipment General Attributes |
|
| Unique Features | High-accuracy J, K, T, E, R, S, B, N thermocouple readings Easy-to view LCD display Large memory capacity Visual high & low alarm thresholds New Burst and Statistics logging modes Record ambiant temperature with internal thermistor |
| Safety Approval | CE |
| Interfaces I/O | USB |
| IP Rating | IP50 |
| Product Weight | 30 GRAMS (0.066 LBS) |
| Product Height | 1.44 IN |
| Product Length | 2.34 IN |
| Product Width | 0.6 IN |
| Data Logging | Yes |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 1.30 IN |
| Shipping Length | 3.80 IN |
| Shipping Width | 2.60 IN |
