Descripción

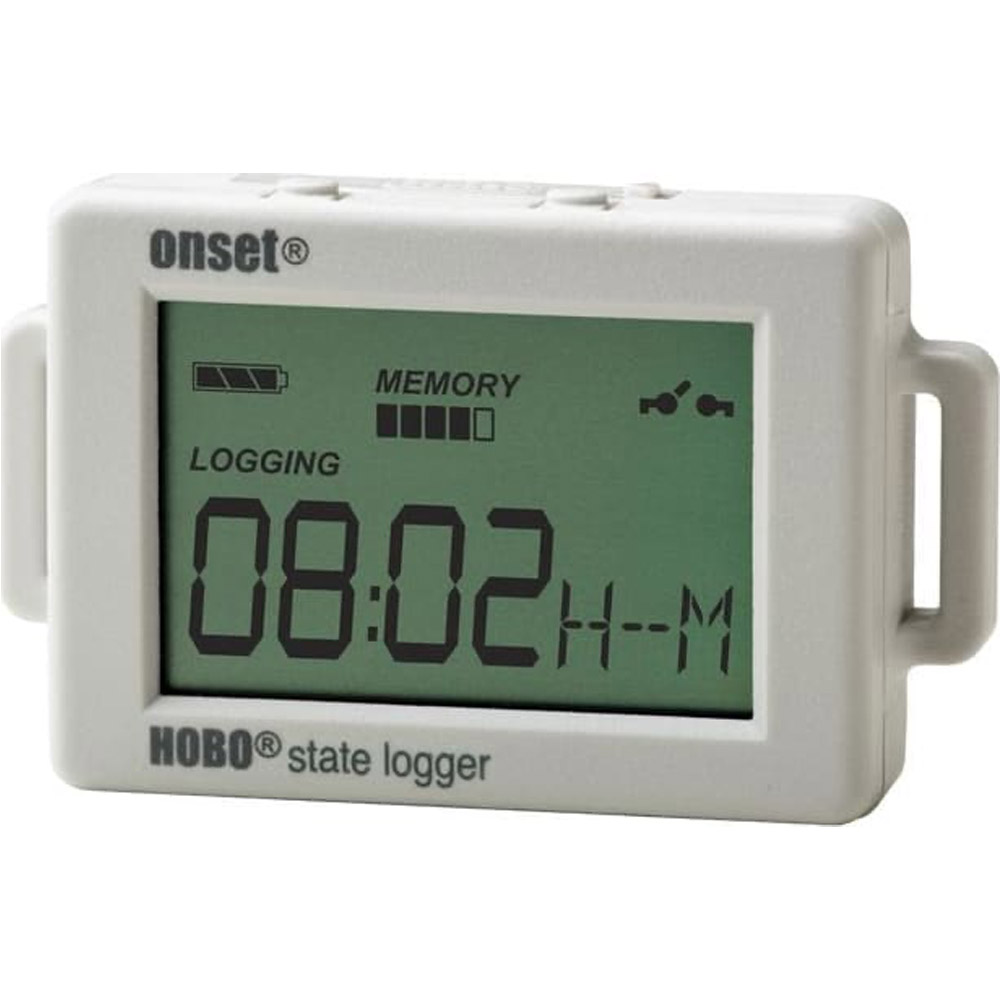

The HOBO State/Pulse/Event/Runtime data logger records state changes,electronic pulses and mechanical or electrical contact closures from external sensing devices. This data logger is ideal for monitoring energy consumption, mechanical equipment operation, and water and gas flow. The HOBO UX90-001 State Data Logger is available in a standard 128 KB memory model (UX90-001) capable of 84,650 measurements and an expanded 512KB memory version (UX90-001M) capable of over 346,795 measurements.
Environment:
The UX90-001 Data Logger is for use in Indoor environments.
Measurements:
The UX90-001 Data Logger supports the following measurements:Event, Kilowatt Hours (kWh), Motor On/Off, Pulse Input, Runtime, State Open/Closed, Water Flow.
Manufacturer Specs
| Internal Sensor | |
| Maximum State, Event, Runtime Frequency | 1 Hz |
| Preferred Switch State | No magnet present (normally open) |
| External Input | |
| External Contact Input | Electronic solid state switch closure or logic driven voltage output |
| Range | 0 to 3 V DC (USB powered), 0 to 2.5 V DC (battery powered) |
| Maximum Pulse Frequency | 50 Hz |
| Maximum State, Event, Runtime Frequency | 1 Hz |
| Pulse, Event Lockout Time | 0 to 1 second in 100 ms steps |
| Solid State Switch Closure | Input Low: < 10 KOhms; Input High: > 500 KOhms |
| Internal Weak Pull-Up | 100 KOhms |
| Input Impedance | Solid state switch closure: 100 KOhms pull up |
| Logger | |
| Resolution | Pulse: 1 pulse, Runtime: 1 second, State and Event: 1 State or Event |
| Logging Rate | 1 second to 18 hours, 12 minutes, 15 seconds |
| Time Accuracy | ±1 minute per month at 25°C (77°F) (see Plot A) |
| Battery Life | 1 year, typical with logging intervals greater than 1 minute and normally open contacts |
| Memory | |
| UX90-001 | 128 KB (84,650 measurements, maximum) |
| UX90-001M | 512 KB (346,795 measurements, maximum) |
| Download Type | USB 2.0 interface |
| Download Time | 10 seconds for 128 KB; 30 seconds for 512 KB |
| Logger Operating Range | |
| Logging | -20° to 70°C (-4° to 158°F); 0 to 95% RH (non-condensing) |
| Launch/Readout | 0° to 50°C (32° to 122°F) per USB specification |
| LCD | LCD is visible from: 0° to 50°C (32° to 122°F); the LCD may react slowly or go blank in temperatures outside this range |
| Size | 3.66 x 5.94 x 1.52 cm (1.44 x 2.34 x 0.6 in.) |
| Weight | 23 g (0.81 oz) |
| Environmental Rating | IP50 |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Unique Features | 128 KB (84,650 measurements, maximum) |
| Safety Approval | CE |
| Interfaces I/O | USB |
| IP Rating | IP50 |
| Product Weight | 23 GRAMS (0.051 LBS) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.19.8080 |
| ECCN Number | EAR99 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
