Descripción

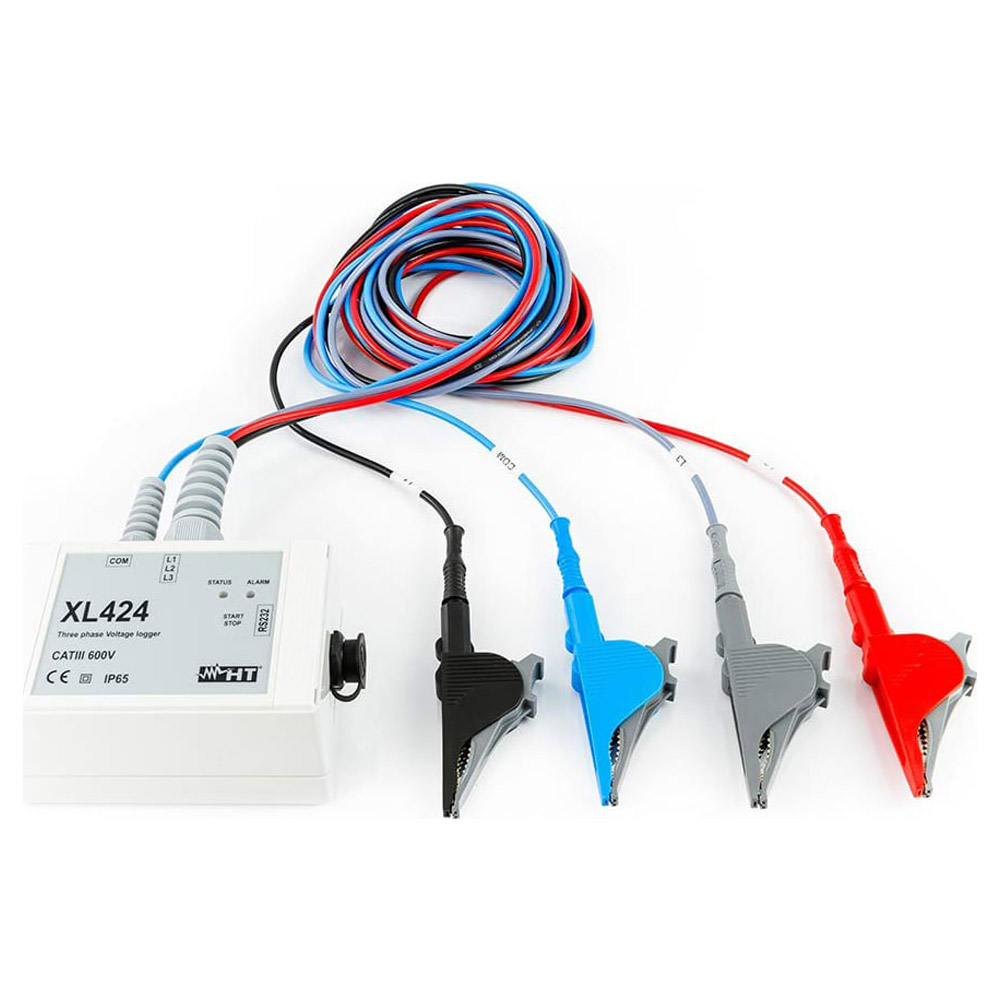

XL424 it’s a meter of a new Data Logger family, which also included XL421, XL422 and XL423 models, that performing measure and recording of TRMS AC Voltage up to 600V in a generic three phase 3-wire system. Its can be very useful for various applications (i.e evaluation of network voltages, unbalanced loads, etc…). Instrument is contained in a safety and practice case with a built-in test leads and safety alligator clips for voltage measurements. Thanks to a sophisticated memory algorithm the instruments are able to record for a very long time up to about 90 days. Use is very simply thanks presence of short indication on the case instrument also. With TOPVIEW2004 Windows software, supplied with the model, its possible to downloading and analyzing all recorded data directly on PC. The high protection degree (IP65) makes the instrument reliable and suitable also under extreme condition of use.
Manufacturer Specs
| VOLTAGE | |
| Range | 0 – 600V |
| Resolution | 0.1V |
| Accuracy | ±(1.0%rdg + 2dgt) |
| GENERAL SPECIFICATIONS | |
| Sampling rate | 64 point in 20ms for each sampling period |
| Sampling period | 1s, 6s, 30s, 1min, 5min |
| Memory capacity | 1Mbyte Autonomy in days (depending on batteries autonomy): 1.5(1s) ; 8(6s) ; 42(30s) ; 91(1min); 455(5min) |
| PC interface | RS-232 |
| Operating Temperature / Humidity | -20°C to 60 °C ; 0 – 100%RH (RS-232 connector closed) |
| Storage Temperature / Humidity | -20°C to 60 °C ; 0 – 100%RH (RS-232 connector closed) |
| General information | Insulation: class 2 (double insulation) Altitude max: 2000m Protection degree: IP65 (RS-232 connector closed) |
| Power supply | 2×1.5V alkaline battery type LR6-AA-AM3-MN1500 Battery autonomy: >6months |
| Dimension | 120 (L) x 80(La) x 43(H) mm Length test leads: 2.6m |
| Weight | about 500g (with internal batteries) |
| Reference Standards | LVD: EN 61010-1 CAT III 600V (to ground and between inputs) EN61326 (1997)+ A1 (1998) +A2 (2001) |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Max Voltage | 600 V |
| Min Voltage | 0 V |
| Power Source | Battery |
| Battery Life | 6 MONTHS (4380 HR) |
| SAMPLE RATE/Intervals | 64 point in 20ms for each sampling period. |
| Accuracy | Accuracy is indicated at 23°C ± 5°C as ±(%readings + number of digits), <60%HR |
| Data Output Format | Excel, Pdf |
| Type | AC |
Test Equipment General Attributes |
|
| Unique Features | Three (3) phase TRMS Voltage Data Logger Autonomy in days (depending on batteries autonomy): 1.5(1s) ; 8(6s) ; 42(30s) ; 91(1min); 455(5min) |
| Warranty | 31 YEARS |
| Warranty Details | • Accessories and batteries (not covered by warranty). • Improper use of the equipment or combination of the instrument with incompatible equipment. • Damages caused by incorrect shipping procedures. • Damages caused by repair/service trials of unauthorized people. • Modifications to the equipment without explicit authorization of our Technical Dept. • Adaptation to a particular application not provided for by the definition of the equipment or by the instruction manual. |
| Safety Approval | CE |
| Interfaces I/O | RS-232 |
| IP Rating | IP65 |
| Product Weight | 500 GRAMS (1.10 LBS) |
| Product Height | 43 MM (1.69 IN) |
| Product Length | 120 MM (4.72 IN) |
| Product Width | 9.20 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 90318080 |
| ECCN Number | 8.0331E+12 |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Italy |
| Shipping Height | 8.00 IN |
| Shipping Length | 11.25 IN |
| Shipping Width | 9.20 IN |
| Other Information | La Dimension: 80 mm |
