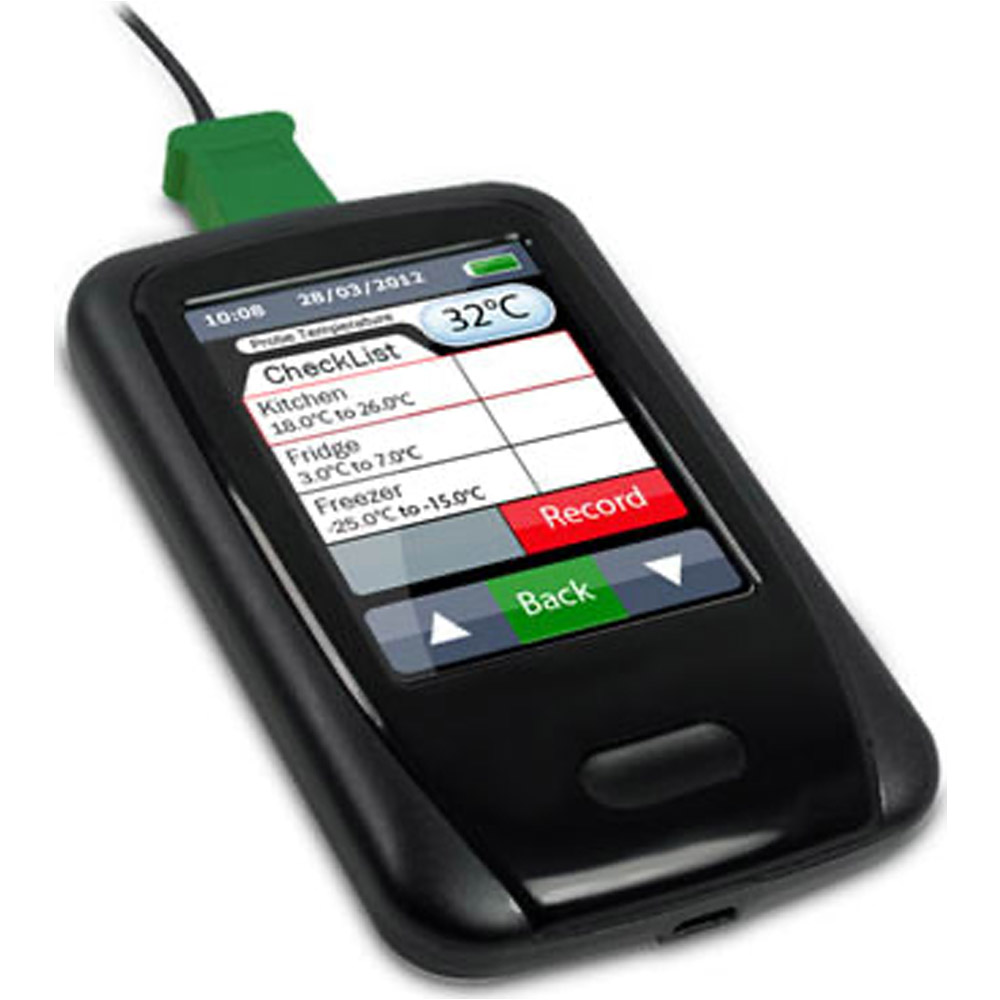

Lascar EL-EnviroPad-TC Multi-function Thermometer with Inbuilt Data Logging & Graphing
The EL-EniroPad-TC has two main functions: Data Logging and Measurement.
Data Logging Mode: When in Data Logging’ mode the EL-EnviroPad-TC can be set-up and left to take temperature readings at predetermined intervals for any desired length of time. All data logging parameters are set using the EnviroPad’s touchscreen interface, with custom settings such as: sample rate, high & low alarms and delayed start if you would rather begin logging at a later time or date.
All readings are saved to a file with a date and time stamp in .csv or .txt format for up to 65,536 readings.
Measurement Mode: When in ‘Measurement’ mode the EL-EnviroPad-TC can be used in two ways: ‘Spot Checks’ or ‘Predefined Checklists’.
Spot Check Mode: When in ‘Spot Checks’ mode the EL-EnviroPad-TC can be used as a thermometer to manually capture temperature readings displayed on screen. A new measurement is taken each time the user presses the on-screen ‘RECORD’ button. Over 65,000 spot measurements can be recorded in each file.
Predefined Checklist Mode: When in ‘Checklist’ mode the EL-EnviroPad-TC can be used as an electronic checklist to do spot temperature checks on a predefined list of items. The checklists are configured using our FREE and simple EL-EP software allowing users to define a long list of checks with custom settings such as: checklist name, temperature scale, items to check and acceptable temperature limits.
Recorded data files can be downloaded to a PC via USB using the EL-EP software, where data can be viewed as text, in Excel®, or as a graph (depending on file format).
The unit is compatible with any J, K, N and T type thermocouple probes. The protective boot can be removed for cleaning and is dishwasher safe.
Thermometer with Inbuilt Data Logging & Graphing
This robust easy to use handheld device takes and records temperature readings via the attached k-type probe that is supplied with the unit. A large touch screen, colour display indicates temperature, maximum and minimum readings and will produce a graph of the data.
It has two functions ‘Data Logging’ and ‘Spot Measurement’;
- When in ‘Data Logging’ mode it can be set up and left to take temperature readings at pre-determined intervals for a desired length of time. All readings are saved to a file with a date and time stamp in CSV format for up to 65,536 readings.
- When in ‘Spot Measurement’ mode the unit can be used as a thermometer to capture one-off temperature readings displayed on screen. This can be repeated for up to 65,536 readings per file.
The unit is compatible with any J, K, N and T type thermocouple probes. The protective boot can be removed for cleaning and is dishwasher safe.
HARDWARE
UNIT
- Battery: rechargeable via USB connection
- LCD: colour TFT touch-screen
- Integrated memory for logged data
- Single front-panel push-button used for power-switch. Single press=ON, press & hold=OFF.
- 1x thermocouple connector (top of unit)
- 1x micro USB Type B (bottom of unit) for connection of unit to PC via USB cable supplied.
PROBE
- Thermocouple probe: class 1 tolerance, 316 stainless steel probe
- Sealed to IP66
- Themocouple Type: K
| Specifications | Minimum | Typical | Maximum | Unit |
| Probe Temperature Accuracy | – | +/- 1.5 | – | °C |
| Probe Temperature Range* | -180 | – | +1300 | °C |
| Handle Temperature Range | -10 | – | +125 | °C |
| * Short term measurement N.B. Any of the above hardware specifications may change without prior warning if new/suitable alternatives become available. |
||||
Manufacturer Specs
| Specifications | Minimum | Typical | Maximum | Unit |
| USB supply voltage | 4.5v | – | 5.5v | V d.c. |
| Internal resolution | – | 0.1 | – | °C |
| Data recording capacity (per recording) | – | 65536 | readings | |
| Hand unit operating temperature range | 0 (+32) | – | +50 (+122) | °C (°F) |
| Operating time (on a single charge) | 8 | 24* | ** | hrs |
| Displayable temperature (dependant on probe) | -100 | -80 to +1200 | +9999 | °C |
| Storage capacity | – | – | 100 | files |
| * Typical use: 1min recording rate & power-save ** Depends on recording settings Warning – Do not exceed operating temperatures |
||||
