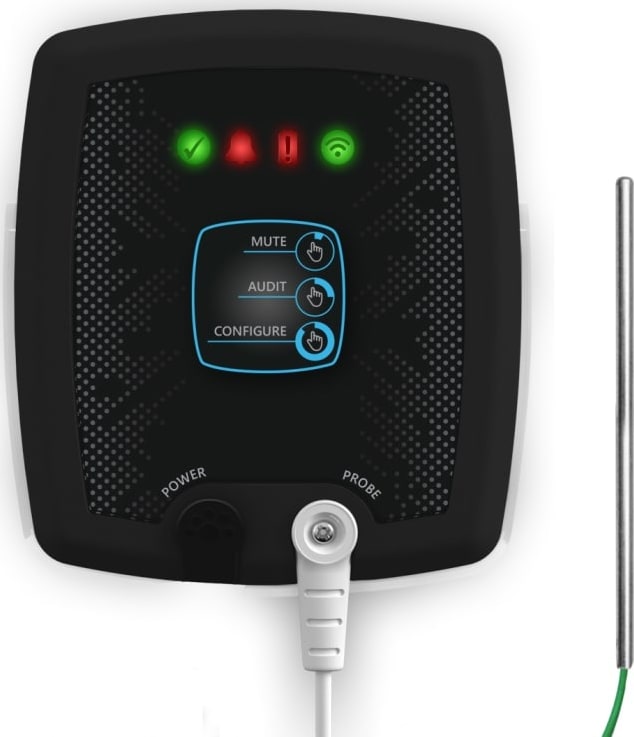

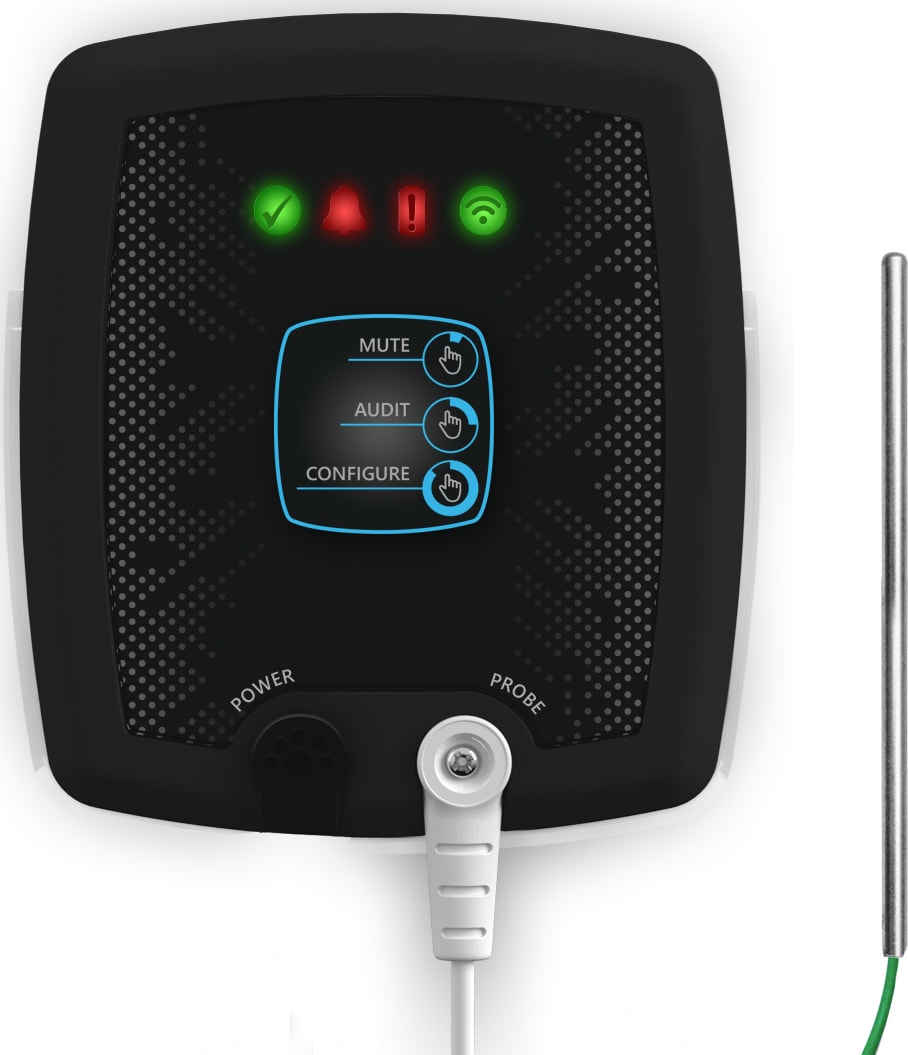

Lascar EL-IOT-TC – Wireless Thermocouple Temperature Data Logger
- Measurement range -20 to +60°C
- Uploads data to the EasyLog Cloud
- Status indicators and sounder
- Set up your own alarms and notifications
- Typical battery life over 1 year, or can be permanently powered
The EL-IOT-1 is a wireless, Cloud-connected temperature data logger. It comes with an internal sensor with a -20°C to 60°C measurement range. Handy status indicators on the front of the device alert you, at a glance, to alarms, battery levels, and WiFi connection strength.
The device is simple to set up and once configured the device can be placed anywhere within range of your WiFi network, continually monitoring, and recording your data to the EasyLog Cloud. You can then use the Cloud to access, analyses, and share your data from any internet-connected device.
Set high and low-temperature alarms where an alarm is activated if your temperature threshold is breached. Alarm options include email alerts (which can be sent to one or multiple email addresses), sounder alerts and light flash alerts.
This product complies with BS EN 12830:2018 (Temperature recorders for the transport, storage, and distribution of temperature-sensitive goods).
Manufacturer Specs
| Model: EL-IOT-TC Specifications | |
| Temperature Measurement Range | -20°C to 60°C -4°F to 140°F |
| Resolution | 0.1° |
| Accuracy | +/- 0.5°C +/- 0.9°F |
| Logging Period | 10 Seconds to 12 Hours (User Selectable) |
| Transmission Interval | 1 Minute to 24 Hours (User Selectable) |
| Internal Memory | 300,000 reading |
| Battery Life | >1 Year (Typical) |
| Dimensions | 94mm x 83mm x 31mm |
| Operating Temperature Range (Battery) | -18°C to 55°C 0°F to 131°F |
| Operating Temperature Range (Power Supply) | -20°C to 60°C -4°F to 140°F |
| Environmental rating | IP54 (Splash Proof) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 60 C |
| Min Temperature | -4 F |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| Accuracy | ±0.5°C (±0.9°F) |
Test Equipment General Attributes |
|
| IP Rating | IP54 |
| Product Weight | 0.48 LBS |
| Product Height | 3.7 IN |
| Product Length | 1.22 IN |
| Product Width | 3.26 IN |
| Shipping Weight | 0.55 LBS |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
