Data Logger Lascar EL-USB-1 Temperature Data Logger with USB Interface

Descripción

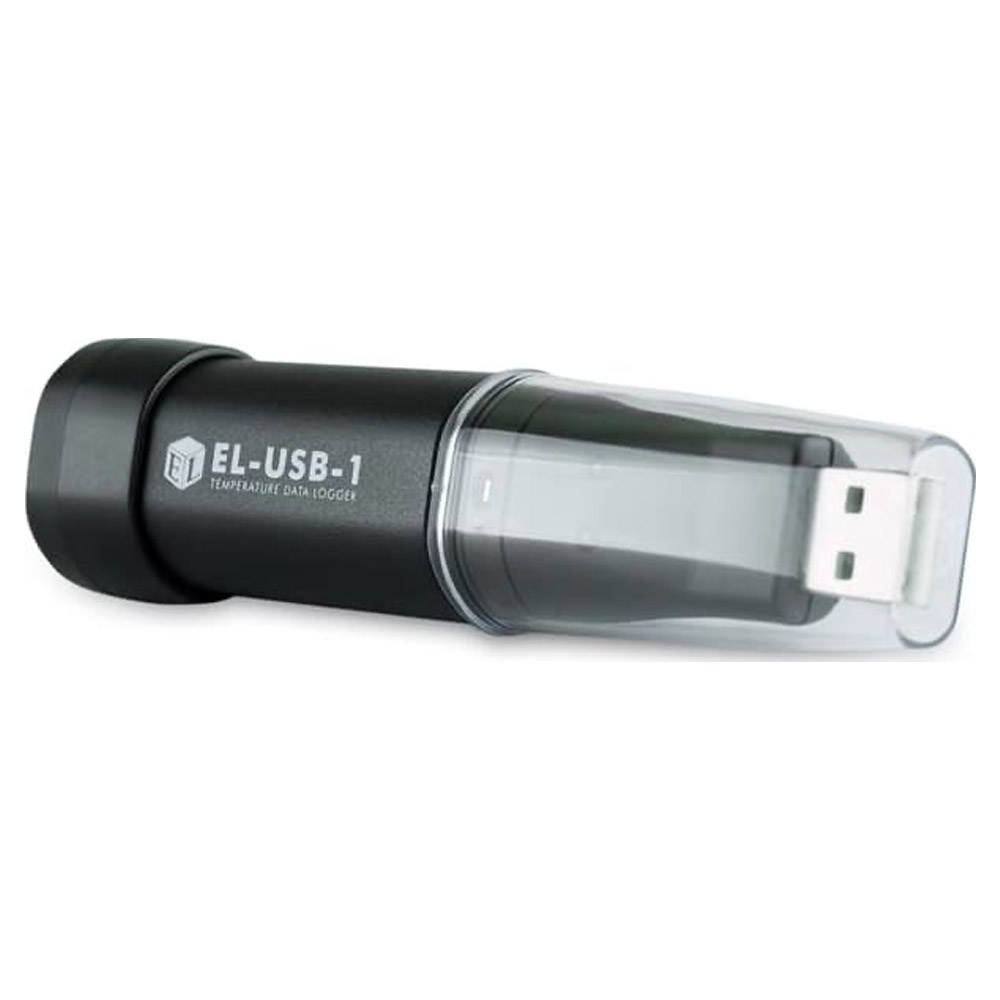

Lascar EL-USB-1 Temperature Data Logger with USB Interface

USB Temperature Data Logger, IP67 rated, supplied with configuration software

The EL-USB-1 is a USB temperature data logger with a measurement range of -35 to +80°C (-31 to +176°­­F). The data logger can store up to 16,382 readings and is supplied with a long-life replaceable lithium battery, allowing the unit to log data continually for at least one year (depending on logging rate and temperature). The status of EL-USB-1 is indicated by flashing red, green and orange LEDs. The data logger is protected against moisture to IP67 standard when the protective cap is fitted.

Data logger configuration software is supplied, allowing the user to easily set-up the data logger. Selectable parameters include logging rate, measurement units, high & low alarms and start-time. The logged data stored in EL-USB-1 is downloaded via the configuration software. Once downloaded data can be graphed, printed or exported to other applications. The data logger configuration software is compatible with Windows 2000/XP/Vista(32-bit only).

This is a popular part, normally stocked in high quantity and suitable for new designs. Download the latest version (v4.0) of the configuration and graphing software from the link below.

WINDOWS CONTROL SOFTWARE

Easy to install and use, the control software runs under Windows 98, 2000, XP (Home and Professional Editions)* and Vista (32-bit). It allows the user to set up and download any EL-USB-1.

DATA LOGGER SET-UPS

• Logger Name
• °C, °F
• Logging Rate (10s, 1m, 5m, 30m, 1hr, 6hr, 12hr)
• High and Low Alarms
• Start Date and Start Time

Application Information

The EL-USB-1 is suitable for a wide variety of applications, these include:

• Pharmaceutical fridge monitoring
• Transportation
• Food & drink
• Building & site monitoring
• HVAC

Manufacturer Specs

Specification	Min	Typ	Max	Unit
Measurement range	-35 (-31)		+80 (+176)	°C (°F)
Internal resolution		0.5 (1)		°C (°F)
Accuracy (overall error)		±1 (±2)		°C (°F)
Logging rate	every 10s		every 12hr	–
Operating temperature range	-35 (-31)		+80 (+176)	°C (°F)
1/2AA 3.6V Lithium Battery Life		1* year

Tech Specs

Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ
Max Temperature	176 F (80 C)
Min Temperature	-31 F
Power Source	Battery
Battery Life	1 YEARS (8760 HR)
Input Source	Internal Probe
# Data Points	16382
# Inputs/Channels	1
SAMPLE RATE/Intervals	10s, 1m, 5m, 30m, 1hr, 6hr, 12hr
LCD Screen	No
Software Included	Yes
Data Output Format	Text file with option to export to Excel
Test Equipment General Attributes
Warranty	1 YEARS
Warranty Details	Lascar Electronics honors a one year warranty for all our products.
Safety Approval	CE
Interfaces I/O	USB
Storage	Compact Flash
IP Rating	IP67
Product Weight	2.5 OUNCES (0.156 LBS)
Product Height	1.60 IN
Product Length	5.60 IN
Product Width	4.00 IN
Shipping Weight	2.7 OUNCES (0.169 LBS)
Data Logging	Yes
HTS/Schedule B Number	9025.80.5000
ECCN Number	EAR99
Calibration Included	None
Battery Type	Li-ion
Country of Origin	China
Shipping Height	1.60 IN
Shipping Length	5.60 IN
Shipping Width	4.00 IN
