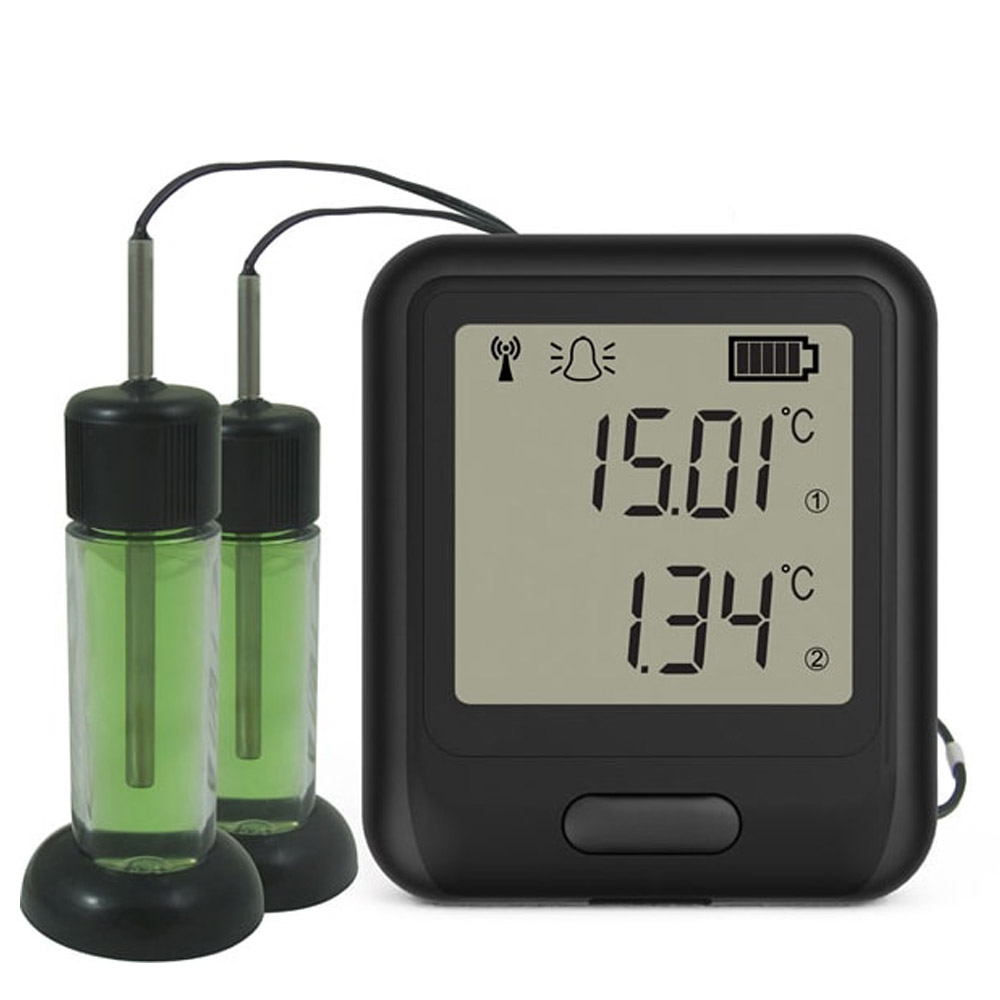

Lascar EL-WIFI-21CFR-VAC2 Dual Channel 21CFR WiFi Vaccine Monitoring Kit
Dual Channel 21CFR WiFi Vaccine Monitoring Kit
- Can be installed as part of a 21CFR compliant system with additional controls including permission-based use, authority level sign-off and full system audit
- Includes glycol buffered high accuracy thermistor probe with temperature measurement range -40 to +100°C (-40 to +212°F)
The EL-WIFI-21CFR-VAC2 measures the temperature of the environment in which the glycol buffered probe is situated. Data is streamed wirelessly over any compatible WiFi network to be viewed on the EasyLog 21CFR Cloud. During configuration, the sensor will search for an existing wireless network whilst physically connected to the PC. It can then be placed anywhere within range of the network. If the sensor temporarily loses connectivity with the network, it will log readings until it is able to communicate again with the EasyLog 21CFR Cloud (max 30 days at 10 second sample interval). The unit is freestanding, but it can be attached to a wall or surface using the bracket provided.
The sensor is IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).

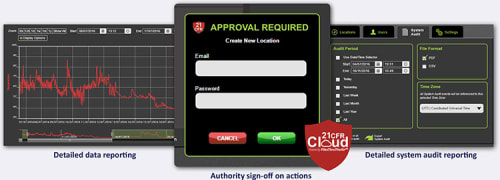

EasyLog 21CFR Cloud
21CFR Cloud subscription delivers all of the flexibility of a remote monitoring system: Interact with sensors via any internet-enabled device; manage and monitor sensors; access event logs and set up email alerts; assign authorisation levels to user accounts and view comprehensive audit trail records. Unlike the standard EasyLog Cloud service, 21CFR Cloud includes other controls such as permission-based use, authority sign-off and full system audit to ensure data monitored and collected is regulated to 21CFR Part 11 standard.
Manufacturer Specs
| General Specifications | ||||
| Minimum | Typical | Maximum | Unit | |
| Battery life | >6 | Months | ||
| USB supply voltage | 4.5 | 5 | 5.5 | Vdc |
| Operating temperature range | -20 (-4) | +60 (+140) | °C (°F) | |
| Logging period (user configurable) | 10 sec | 10 min | 12 hrs | |
| Transmission period (user configurable) | 1 min | 1 h | 24 hrs | |
| Temperature measurement range (probe) | -40 (-40) | +100 (+212) | °C (°F) | |
| Temperature measurement resolution | 0.1 / 0.2 | °C/°F | ||
| Temperature display resolution | 0.1 | °C | ||
| Temperature accuracy | ±0.2°C / ±0.4°F (-15 to +80°C/ +5 to +176°F) |
±0.6°C (-40 to +100°C/ -40 to +212°F) |
°C/°F | |
