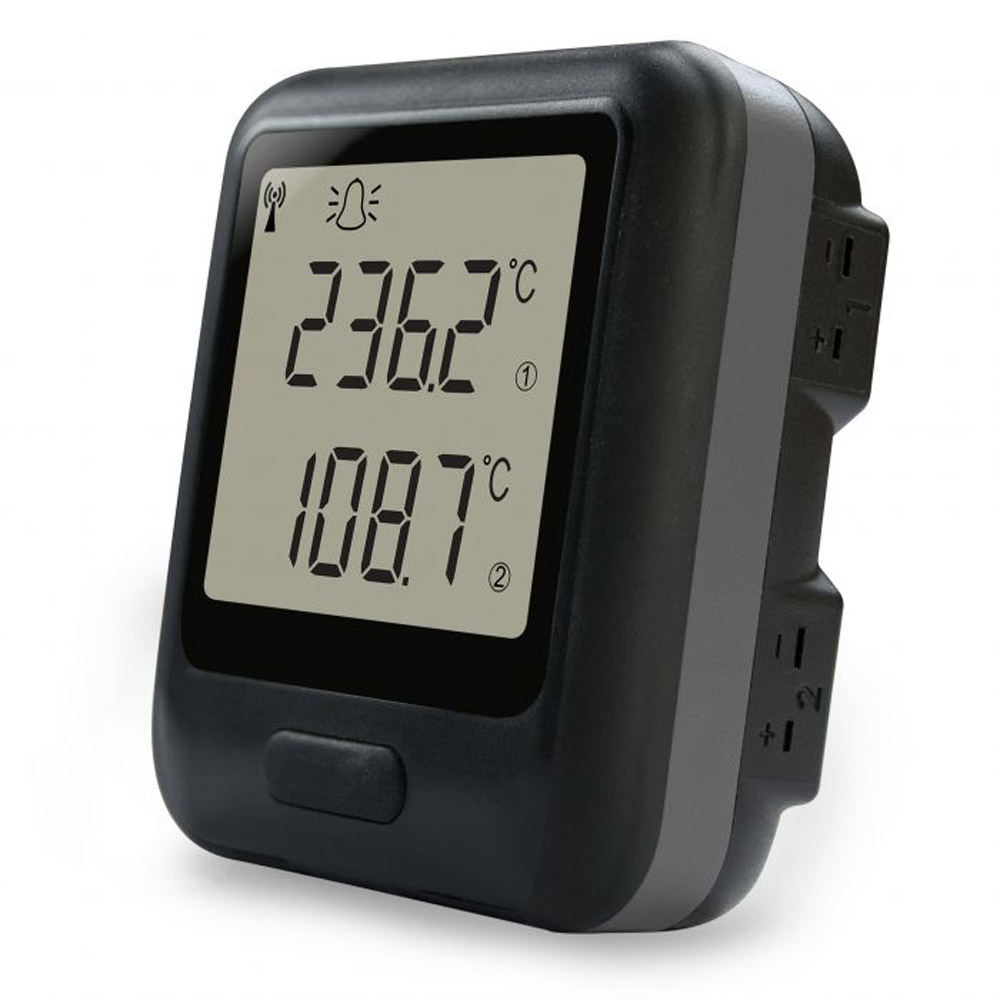

LascarEL-WIFI-DTC – Dual Channel External Thermocouple WiFi Temperature Data Logger
- WiFi capability and integrated display
- Wireless connectivity to PC via WiFi
- Probes are 1.5 meters in length
- Rechargeable internal lithium polymer battery
Now Cloud enabled!
The EL-WiFi-DTC data logger measures the temperature of the environment in which the probes are situated. This data logger is typically accurate to ±1.5°C (with the K type probes supplied). The unit is freestanding, but can be attached to a wall or surface using the bracket provided. The unit can be clipped in and out of the bracket as required. The probes are connected using the industry standard miniature thermocouple connector, which allows alternative K, N, J and T type probes to be used.
Data is streamed wirelessly to a local PC or to our Cloud service. During configuration the data logger will search for an existing wireless network whilst physically connected to the PC. Once connected it can then be placed anywhere within range of the network. If the data logger temporarily loses connectivity with the network or PC, it will log readings until the connection is re-established (max 30 days at 10 second sample interval).
Calibration Certificates
Lascar’s calibration certificates are traceable to UKAS or NIST standards depending on your location. Customers in the Americas, or customers ordering through our US sales office will receive NIST traceable certificates generated in our ISO 17025 facility, whilst customers in the UK, EU, Rest-of-world or customers ordering through our UK headquarters will receive UKAS traceable certificates.
A calibration certificate is not supplied as standard with a data logger.
Please note that a calibration certificate can only be provided with a data logger at the time of original purchase.
Manufacturer Specs
| Specification | Min. | Typ. | Max. | Unit |
| Battery life | >6* | Months | ||
| USB supply voltage | 4.5 | 5.5 | V.d.c | |
| Operating temperature range (sensor only) | -20 (-4) | +60(+140) | °C(°F) | |
| Logging period (user configurable) | 10 sec | 10 min | 12 hrs | |
| Transmission period (user configurable) | 1 min | 1 hr | 24 hrs | |
| Temperature measurement range (probe dependent) | -270 (-454) | +1300 (+2372) | °C(°F) | |
| Temperature measurement resolution | 0.1 | °C | ||
| Temperature display resolution | 0.1 | °C | ||
| Temperature accuracy (probe dependent) | ±1.5 | °C |
*Dependent on transmission rate, may be less with frequent transmissions
Warning – do not exceed operating temperatures
