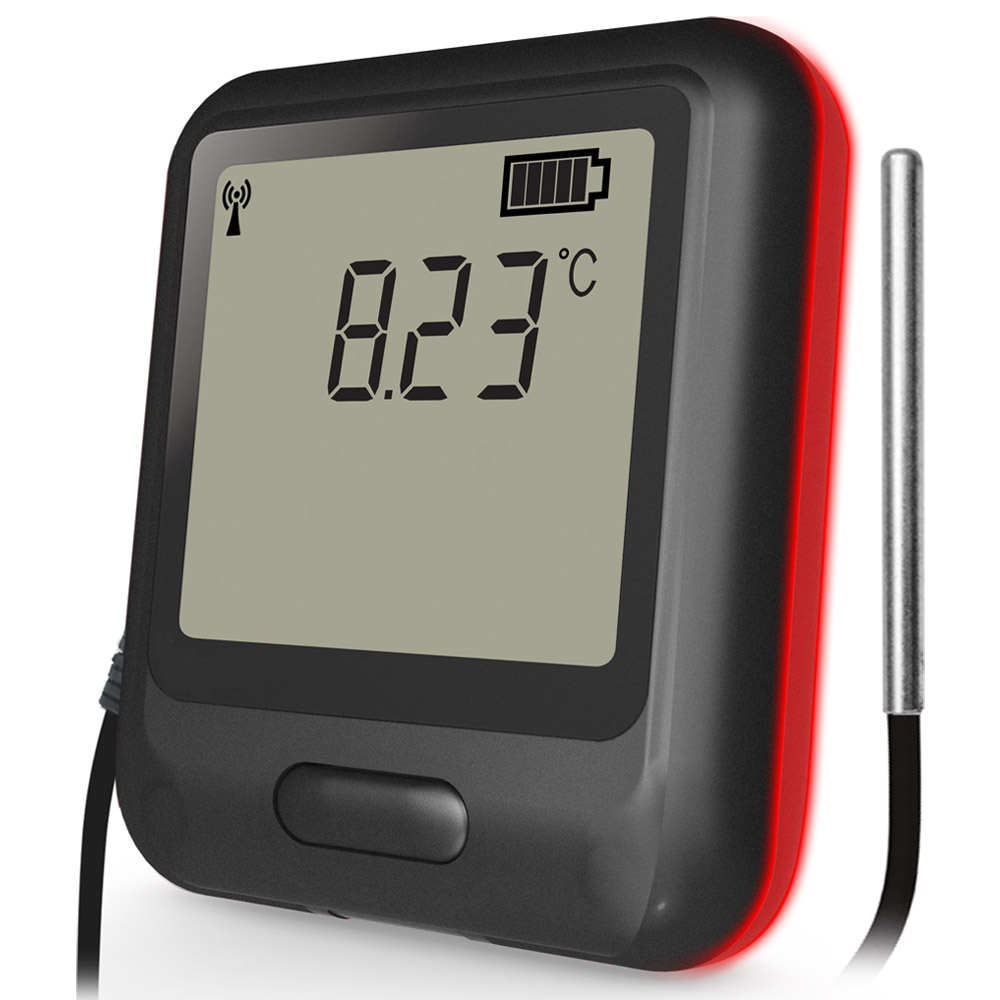

Lascar EL-WiFi-TPX+ Wi-Fi Connected High-Accuracy Temperature Data Logger
- View and analyse multiple devices, including graphing of historic data
- Easy device setup using free PC software or mobile app
- Device memory stores all data even if Wi-Fi is temporarily disconnected
- Temperature measurement range -40 to +125 °C (-40 to +257 °F)
- Configurable alarm levels with on-board warning light and sounder
The EL-WiFi-TPX+ measures the temperature of the environment in which the probe is situated. Data is streamed wirelessly over any compatible Wi-Fi network and can be viewed on any internet-enabled device, via browser or free mobile app.
Device setup and connection to a Wi-Fi network and the EasyLog Cloud are simple, just download the free EasyLog WiFi PC software or the free EasyLog Cloud mobile app and follow the device setup wizard. The device can be placed anywhere within range of the Wi-Fi network. If the device temporarily loses connectivity with the Wi-Fi network, it will log readings until it is able to communicate again with the EasyLog Cloud (max. 30 days at 10 second sample interval).
The device is IEEE 802.11bgn (2.4GHz) compliant, supports WEP, WPA/WPA2 encryption and enterprise networks (PEAP, TTLS, FAST).
The EL-WiFi-TPX+ has a protection rating of IP42, and the probe IP67. The device is freestanding, but can be attached to a wall or surface using the bracket provided, and clipped in and out of the bracket as required. This device is equipped with a translucent back to show a red flashing indicator when it is in an alarm state as well as a moderate volume sounder to alert anyone in close proximity.
Easy Device Set Up and Connection
EL-WiFi-TPX+ is easy to set up and connect to the EasyLog Cloud. Use the EasyLog WiFi software for PC or the EasyLog Cloud app available from Google Play or on the App Store.
EasyLog Cloud Your Data. Anytime. Anywhere
EasyLog Cloud harnesses the power of loT to automate data logging and alert notifications, enabling you to monitor and manage multiple data logging devices in different locations completely remotely. The system easily scales to meet your needs. Perfect for compact systems with just a few measuring points, or corporate solutions with thousands of devices around the globe
Manufacturer Specs
| Measurement range | -40 to 125°C (-40 to 257°F) | |
| Measurement resolution | 0.01°C (0.02°F) | |
| Display resolution | 0.01 | |
| Measurement accuracy | ±0.2°C (-15 to +80°C) | ±0.6°C (-40 to 125°C) |
| Operating temperature range | -20 to +60°C (-4 to +140°F) | |
| Readings | Unlimited | |
| Logging rate | User selectable | between 10 seconds and 12 hours |
| Battery life | >6 months | |
| USB supply voltage | 5 Vdc | |
| IP rating | Logger IP42 | Probe IP67 |
| Dimensions | 82 x 70 x 36 mm | |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 125 C |
| Min Temperature | -40 F |
| Battery Life | 6 MONTHS (4380 HR) |
| Accuracy | ±0.2°C (-15 to +80°C) ±0.6°C (-40 to 125°C) |
Test Equipment General Attributes |
|
| IP Rating | IP42, IP67 |
