Descripción
Logtag Trix-8 – Multi-Use Temperature Logger, 8K Readings Capacity
- 8k readings memory capacity with up to 3 years battery life
- A real time clock provides date/time stamps for each temperature reading
- In-transit inspections at the push of a button
- Comprehensive customization options including alarm settings, sample interval and trip duration
- Up to 8,000 recordings – enough for the longest trip
Requires LT-INT-HID or LTI-Wifi Cradle (not included) to connect to a computer to read/program the logger.
The LogTag TRIX-8 is a versatile, wide range, multi-trip Temperature Recorder, featuring high resolution temperature readings over a measurement range of -40°C to +85°C (-40°F to +185°F).
Using the LogTag Interface and the freely available companion software LogTag Analyzer, the LogTag is easily set-up for recording conditions including delayed start, sampling interval, number of readings, continuous or fixed number of readings and configuration of conditions to activate the ALERT indicator. Readings are downloaded using LogTag Analyzer, which provides facilities for charting, zooming, listing data statistics and allows exporting the data to other applications such as Excel.
The LogTag TRIX-8 complies with the relevant international standards for temperature monitoring devices, such as FCC, CE, C-TICK, TÜV, EN12830, WHO PQS and RoHS. This not only demonstrates the quality of the LogTag TRIX-8, but underlines its suitability for temperature monitoring applications where accuracy and consistency is required.
Manufacturer Specs
| Product Model | TRIX-8. |
| Sensor Measurement Range | -40°C to +85°C (-40°F to +185°F) |
| Operating Temperature Range | -40°C to +85°C (-40°F to +185°F). |
| Storage Temperature Range | -30°C to +55°C (-22°F to +131°F). |

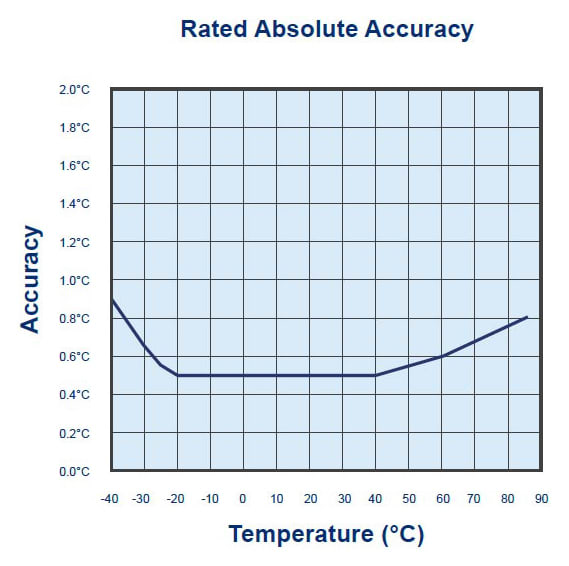

| Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +40°C. Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C. Better than ±0.8°C for +60°C to +85°C. Better than ±0.9°C for -40°C to -30°C. Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |

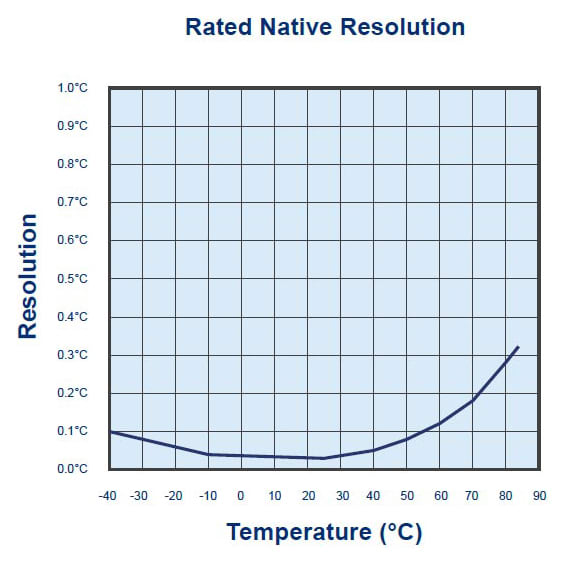

| Rated Temperature Reading Resolution | Less than 0.1°C for -40°C to +40°C. Less than 0.2°C for +40°C to +80°C. Less than 0.4°C for +80°C to +85°C. LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Sensor Reaction Time | Typically less than 5 minutes (T90) in moving air (1m/s). |
| Recording Capacity | 8031 temperature readings. 53 days @ 10min logging, 80 days @ 15min logging. |
| Sampling Interval | Configurable from 30 seconds to several hours. |
| Logging Start Options | Push button start or specific date & time. Optional start delay of up to 18 hours. |
| Recording Indication | Flashing ‘OK’ indicator / flashing ‘ALERT’ indicator. |
| Alarms | 1 configurable upper and 1 configurable lower alarms. |
| Download Time | Typically less than 5 seconds for full memory (8031 readings), depending on computer or readout device used. |
| Environmental | IP65 (roughly equivalent to NEMA 4). |
| Power Source | CR2450 3V LiMnO2 Battery (Fixed). |
| Battery Life | 1 year storage, followed by 2 – 3 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Size | 86mm(H) x 54.5mm(W) x 8.6mm(T). |
| Weight | 33g. |
| Case Material | Polycarbonate. |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 185 F (85 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 3 YEARS (26280 HR) |
| Input Source | Internal Probe |
| SAMPLE RATE/Intervals | 30 sec to several hours |
| Accuracy | Better than ±0.5°C for -20°C to +40°C. Better than ±0.7°C for -30°C to -20°C and +40°C to +60°C. Better than ±0.8°C for +60°C to +85°C. Better than ±0.9°C for -40°C to -30°C. |
| LCD Screen | No |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Unique Features | 8000 readings memory capacity |
| Warranty | 1 YEARS |
| Safety Approval | CE, RoHS |
| Interfaces I/O | Other |
| Storage | Internal Memory |
| IP Rating | IP65 |
| Product Weight | 0.0728 LBS |
| Product Height | 3.38 IN |
| Product Length | 0.338 IN |
| Product Width | 2.145 IN |
| Shipping Weight | 0.0837 LBS |
| Data Logging | Yes |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
