Descripción

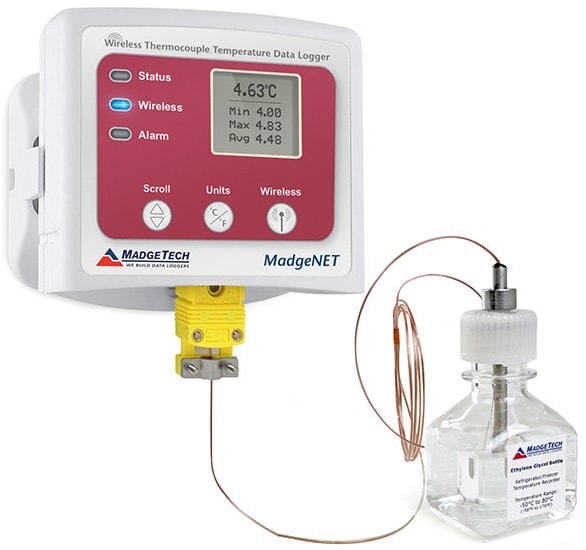

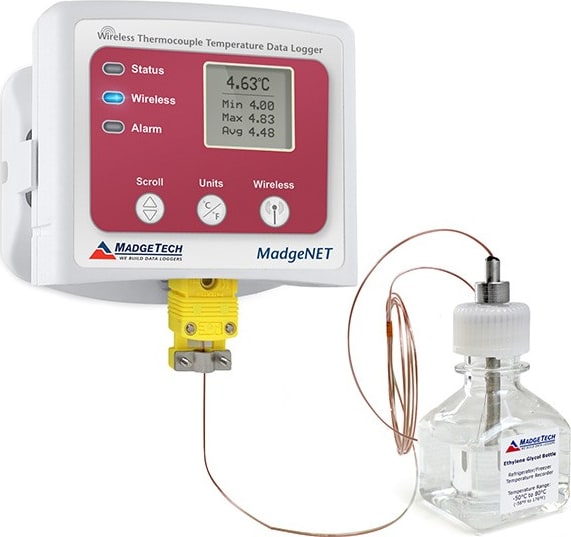

Madgetech 901903-00 – Vaccine Temperature Monitoring System
- VTMS with 60mL Glycol bottle and type K Thermocouple
- Audible and LED Alarm Indicators
- Thermocouple and Glycol Bottle Included
- Ambient and Thermocouple Temperature Monitoring
- Field Upgradeable
- 3 Year Battery Life
MadgeTech’s Vaccine Temperature Monitoring System (VTMS) is ideal for the continuous measurement and data logging of temperature sensitive vaccines or pharmaceuticals in refrigerators, freezers, and coolers. The system includes an RFTCTemp2000A data logger with thermocouple and Glycol bottle. Additionally, the RFTCTemp2000A data logger in the VTMS system has a convenient LCD to ensure temperature parameters are met, in real time. Starting, stopping and downloading from the device are all performed wirelessly using the RFC1000 wireless transceiver. The current reading, minimum, maximum and average statistics can all be obtained through the display.
The convenient digital display provides the current reading for the thermocouple channel. Minimum, maximum and average statistics are also provided for a convenient snap shot of the logged data. For instant, out of range notification, an audible buzzer as well as LED alarm indicator notifies users when the temperature is above or below the user specified alarm.
The VTMS can alert the user, or other personnel, via e-mail or text message if the refrigerator has failed, or if the temperature is outside of the nominal range. This allows users to take immediate actions to ensure vaccines and pharmaceuticals in storage are not destroyed. To prevent false alarms, the RFTCTemp2000A is connected to a Glycol bottle which provides temperature buffered readings. The VTMS utilizes the new MadgeTech 4.0 Software. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. The software features export to Excel®, data annotation, digital calibration and more.
Manufacturer Specs
| General Specifications | |
| Memory | 16,128 readings per channel |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 250,000 |
| Cold Junction Compensation | Automatic based on internal channel |
| Battery Life | 3 years typical at 1 minute reading rate |
| Material | ABS Plastic |
| Dimensions | 3.0 in x 3.5 in x 0.95 in (76.2 mm x 88.9 mm x 24.1 mm) – Data logger only |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | RFC1000 (wireless); USB to Mini USB Cable |
| Approvals | US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE) |
| Weight | 1.1250 LBS |
| Temperature | |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -20 °C to 60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Type K Thermocouple (Included) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | K |
| Max Temperature | 140 F (60 C) |
| Min Temperature | -4 F |
| Power Source | Battery |
| Battery Life | 26280 HR |
| LCD Screen | Yes |
| Software Included | Yes |
| Data Output Format | °C or °F |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 1.1250 LBS |
| Product Height | 0.9 IN |
| Product Length | 3.0 IN |
| Product Width | 3.5 IN |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
