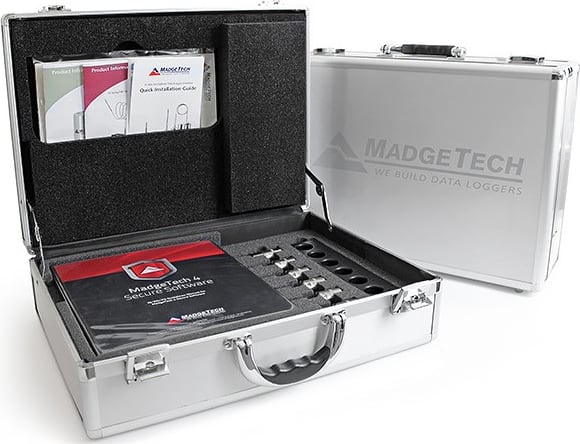

Madgetech AVS140-6 – Autoclave Validation Data Logging System
- ±0.1 °C (0.18 °F) Accuracy
- Operates Up To 140 °C (284 °F)
- Submersible (IP68)
- User Replaceable Battery
- Rugged
The AVS140-6 is a complete system used to perform autoclave validations. The AVS140-6 consists of six high temperature and pressure data loggers, an IFC406 Multiplexer Interface and the MadgeTech 4 Secure Software providing tools to users to assist with FDA 21 CFR Part 11 compliance.
The HiTemp140 is a rugged, high precision, temperature data logger that is built for use with autoclaves and harsh environments. This stainless steel device is submersible, can withstand temperatures up to 140 °C (284 °F) and has an accuracy of +/-0.1 °C (0.18 °F).
The PR140 is a pressure data logger designed for use in autoclave validation and mapping. This rugged data logger can withstand temperatures up to 140 °C and is completely submersible (IP68). The PR140 is built with a precision stainless steel pressure gauge. The data logger has an accuracy of ±0.03 Bar (±0.435 PSI), which can be achieved over a wide temperature range, from 20 °C to +140 °C (68 °F to 284 °F). The PR140 can be programmed to take readings as often as once per second (1 Hz), and has non-volatile memory that can store up to 32,700 measurements.
The IFC406 Multiplexer Data Logger Interface allows for multiple devices to be connected into one interface. Each IFC406 allows for 6 data loggers to be connected. Up to 3 IFC406 units may be daisy-chained together to communicate with a total of 18 devices through 1 USB port. To connect multiple IFC406 Interfaces together, simply join the units side by side, making sure the spring pin contacts are connected and magnetically joined.
The MadgeTech 4 Secure Software aids customers in compliance with 21 CFR Part 11 requirements. The software ensures standards in which electronic files are considered equivalent to paper records, saving time and effort. MadgeTech 4 Secure Software contains criteria such as electronic signatures, access codes, secure data files, and an audit trail which meet the requirements of 21 CFR Part 11 and help provide data integrity.
MadgeTech provides on-site IQ/OQ/PQ services to help the user validate the data logging system. Our trained staff are extremely knowledgeable with the standard IQ/OQ/PQ protocols of the MadgeTech data logging system. This service is a cost-effective means to save time and ensure proper implementation of IQ/OQ/PQ of the MadgeTech data logging system with a minimal disruption to staff and operations. Get more information on our IQ/OQ/PQ On-Site Service.
Manufacturer Specs
| HiTemp140 Specifications | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Probe Measurement Range | HiTemp140: -200 °C to +260 °C (-328 °F to +500 °F) HiTemp140-PT: -200 °C to +350 °C (-328 °F to + 662 °F) |
| Temperature Resolution | 0.01 °C (0.02 °F) |
| Calibrated Accuracy | ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F) ±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F) ±0.4 °C/±0.72 °F (-40 °C to -20.01 °C/-40 °F to -4.02 °F) |
| Reading Rate | 1 second up to once every 24 hours |
| Memory | 32,700 readings |
| Battery Life: | 1 year typical (1 minute reading rate at 25 °C/77 °F) |
| Time Accuracy | ±1 minute/month at 20 °C to 30 °C (68 °F to 86 °F) (Stand alone mode) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F), 0 %RH to 100 %RH |
| Dimensions (Body) | 1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.) |
| Submersible | Yes (IP68) |
| Weight | 4.2 oz (120 g) |
| Material | 316 Stainless Steel |
| Approvals | CE |
| PR140 Specifications | |
| Pressure | |
| Pressure Sensor | Semiconductor Strain Gauge |
| Pressure Range | 0 to 5 Bar (0 to 72.5 PSIA) |
| Pressure Resolution | 0.1 mBar (0.0015 PSIA) |
| Pressure Calibrated Accuracy | ±0.03 Bar (±0.435 PSI) +20 °C to +140 °C (+68 °F to +284 °F) |
| General | |
| Memory | 32,700 readings; software configurable memory wrap |
| Reading Rate | 1 second to once every 24 hours, selectable in software |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate at 25 °C / 77 °F) |
| Material | Stainless Steel |
| Dimensions | 2.29 in x 1.0 in dia. (58.2 mm x 25.4 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Approvals | CE |
| Weight | 0.2000 LBS |
| Operating Environment | -20 °C to +140 °C (-4 °F to +284 °F), 0 %RH to 100 %RH) |
| Note: The PR140 may be used above +60 °C for up to 8 hours, per 24 hour period. | |
| IFC406 Specifications | |
| Operating Environment | +10 °C to +35 °C; 0 %RH to 95 %RH non-condensing |
| Connection Type | USB (to PC) |
| Weight | 1.65 lb (750 g) |
| Material | 6061 Aluminum (PTFE impregnated hard anodized coating), ABS Plastic |
| Dimensions: | 9.5 in x 1.95 in x 1.75 in (241.3 mm x 49.5 mm x 44.5 mm) |
| Maximum Input Voltage | 6 Volts (V) |
| Approval | CE |
| Battery | This device does not use a battery |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 500 F (260 C) |
| Min Temperature | -328 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Input Source | External Probe |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP68 |
| Data Logging | Yes |
| HTS/Schedule B Number | 9025.80.1000 |
| ECCN Number | 3A992 |
| Country of Origin | United States |
