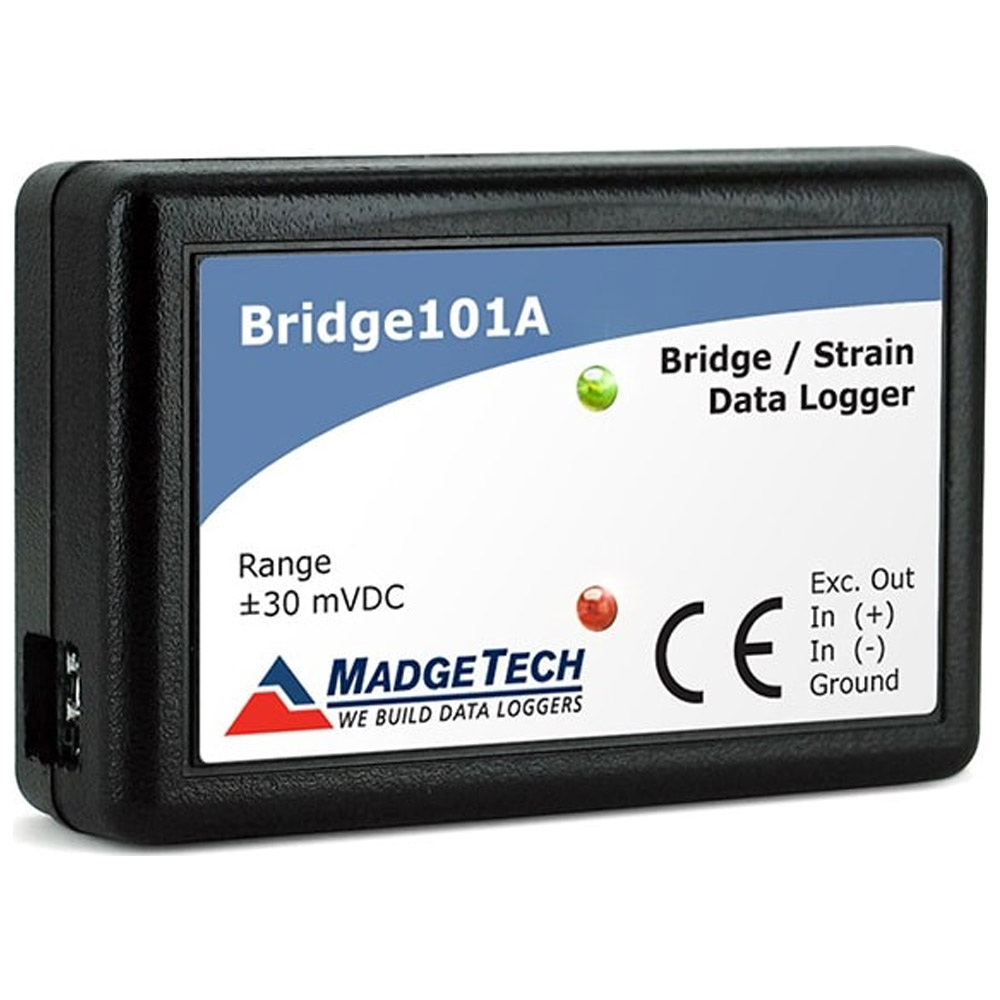

Madgetech Bridge101A-30mV – ±30 mV Bridge Strain Gauge Data Logger
- Multiple Start/Stop Function
- Ultra High Speed Download
- 1 Million Reading Storage Capacity
- Memory Wrap
- Battery Life Indicator
The Bridge101A Data Logger measures and records voltage, typically used in conjunction with strain gauges, load cells or other low-level DC voltage sources. This device is designed to accurately measure and record the output of the gauge to determine parameter levels such as stress, torque, strain, and pressure on a structure or item over a period of time.
Available in three different measurement ranges (±30 mV, ±160 mV or ±1200 mV), the Bridge101A offers a reading rate of up to 4 Hz with memory capacity of 1,000,000 readings (memory wrap optional). The device can be configured to start at a specified date and time up to 24 months in advance and the pushbutton start/stop feature allows the user to initiate or cease logging data in the field if desired.
The MadgeTech Data Logger Software offers user programmable Engineering Units which allows collected data to be presented in the established unit being measured. Equipped with endless data analysis and reporting tools, the MadgeTech software simplifies device management and provides the user with graph, tabular or summary reports with the ability to export data to Excel as needed.
Product Notes
The Bridge101A Data Logger measures and records voltage, typically used in conjunction with strain gauges, load cells or other low-level DC voltage sources. This device is designed to accurately measure and record the output of the gauge to determine parameter levels such as stress, torque, strain, and pressure on a structure or item over a period of time.
Available in three different measurement ranges (±30 mV, ±160 mV or ±1200 mV), the Bridge101A offers a reading rate of up to 4 Hz with memory capacity of 1,000,000 readings (memory wrap optional). The device can be configured to start at a specified date and time up to 24 months in advance and the pushbutton start/stop feature allows the user to initiate or cease logging data in the field if desired.
Manufacturer Specs
| GENERAL SPECIFICATIONS | |
| Memory | 1,000,000 readings; software configurable memory wrap; 330,000 readings in multiple start/stop |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| Battery Life | 10 months typical at a 1 minute reading rate with a 350 Ω load 2 years typical at a 1 minute reading rate with a 1000 Ω load |
| Material | ABS Plastic |
| Dimensions | 1.4 in x 2.5 in x 0.6 in (36 mm x 64 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 90 %RH non-condensing |
| Required Interface Package | IFC200 |
| Weight | 0.0500 LBS |
| Nominal Range | ±30 |
| Measurement Range | ±30 mV |
| Resolution | 1 μV |
| Calibrated Accuracy | ±0.01 %FSR; ±3 Microvolts |
| Input Range | 0 to 2.5 V |
| Reference Voltage | 2.5 V |
| BRIDGE | |
| Bridge Range | ±30 mv, ±150 mv, ±1000 mv |
| Bridge Resolution | ±30 mV: 1 μV ±150 mV: 5 μV ±1000 mV: 50 μV |
| Bridge Accuracy | ±30 mV: ±0.01 %FSR; ±3 MicroVolts ±150 mV: ±0.01 %FSR; 16 Microvolts ±1000 mV: ±0.01 %FSR; 120 Microvolts |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Max Voltage | 2.5 V |
| Min Voltage | 0 V |
| Power Source | Battery |
| Battery Life | 17520 HR |
| Accuracy | ±0.01% FSR; ±3 Microvolts |
| Software Included | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | USB |
| Product Weight | 0.05 LBS |
| Product Height | 0.6 IN |
| Product Length | 1.4 IN |
| Product Width | 2.5 IN |
| Data Logging | Yes |
| Power Supply Voltage | Battery Powered |
