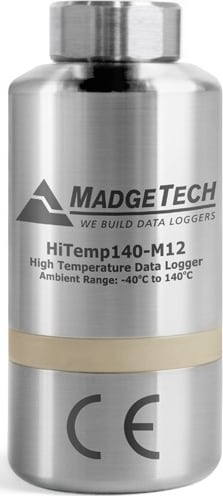

Madgetech HiTemp140-M12 Data Logger
 |
|
The HiTemp140-M12 is a rugged and versatile high temperature data logger featuring an M12 probe connector. Compatible with a wide variety of M12 RTD probe styles, this data logger is capable of measuring up to 850 °C (1562 °F) (probe dependent).
All of MadgeTech’s HiTemp140 data loggers have a water tight body enclosure made of food grade stainless steel and can be placed in environments with temperatures as high as 140 °C (284 °F). The operating range of the data logger body can be extended to higher temperatures when used with MadgeTech’s thermal barrier options and suitable probe.
The HiTemp140-M12 records and stores up to 43,690 time stamped readings and is equipped with non-volatile solid state memory which retains data even if the battery becomes discharged.
A wide selection of compatible M12 probes are available on the market to choose from, making the HiTemp140-M12 the most dynamic data logger of its kind. With the ability to change probes as needed, this device satisfies a multitude of application needs with one powerful data logger versus the need for multiple loggers.
Manufacturer Specs
| General Specifications | |
| Memory | 43,690 readings |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at +25 °C / +77 °F) User Replaceable Battery |
| Material | 316 Stainless Steel |
| Dimensions | 2.14 in x 0.97 in x 0.97 in (54.5 mm x 24.6 mm x 24.6 mm) |
| IP Rating | IP40 – logger alone (with no probe connected) The logger will inherit IP rating of the attached probe (up to, and including IP68/IP69K). |
| Submersible | Yes (with probe attached) |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH non-condensing, 0.002 PSIA to 60 PSIA (Body of Logger cannot Exceed 140 °C) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Weight | 0.1900 LBS |
| Temperature | |
| Temperature Sensor | Various RTD Probes with M12 Connector (Sold Separately) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.02 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range: |
| Probe Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) (Body of Logger Cannot Exceed 140 °C) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 1562 F (850 C) |
| Min Temperature | -328 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Input Source | External Probe |
| Accuracy | ±1 minute/month at 25 °C (77 °F) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP40 |
| Product Weight | 0.19 LBS |
| Product Height | 2.15 IN |
| Product Length | 0.97 IN |
| Product Width | 0.97 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
