Madgetech HiTemp140-PT-5 – Temperature Data Logger
- User Replaceable Battery
- Rugged
- Programmable start time
- Programmable stop time
- Engraved Label

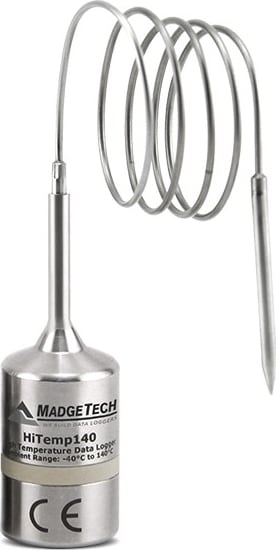

The HiTemp140-PT is a submersible, temperature data logger that can operate up to 140 °C (284 °F) and has an accuracy of +/-0.1 °C (0.18 °F). The HiTemp140-PT comes in two different probe lengths, both probe styles feature a 24 inch bendable stainless steel probe. The HiTemp140-PT-1 has a 1 inch probe tip and where the HiTemp140-PT-5 has a 5 inch probe tip. Both probes can measure extended temperatures up to 350 °C (662 °F) The probe is durable and can be spiraled, bent or angled in any direction, making it easy to log temperatures within bottles, vials or other hard to reach places. The HiTemp140-PT records date and time stamped readings, and has non-volatile solid state memory which retains data even if the battery becomes discharged.
Using the latest MadgeTech Software, starting, stopping and downloading the HiTemp140-PT is simple and easy. To use, simply place the HiTemp140-PT in the IFC400 or IFC406 docking station (sold separately). Using the software, an immediate or delay start can be chosen, as well as the reading rate. Start the data logger, remove it from the docking station and the device is ready to be deployed. Graphical, tabular and summary data is provided for analysis and data can be viewed in °C, °F, K or °R. The data can also be automatically exported to Excel for further calculations.
Manufacturer Specs
| General Specifications | |
| Memory | 32,700 |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 1 year typical (1 minute reading rate at 25 °C/77 °F) User Replaceable Battery |
| Dimensions | Body: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.) HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.) Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.) HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle) Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.) |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH (Body of Logger Cannot Exceed 140 °C) |
| Required Interface Package | IFC400 |
| Approvals | CE |
| Weight | 0.5000 LBS |
| Temperature | |
| Temperature Sensor | 100 Ω Platinum RTD |
| Temperature Resolution | 0.01 °C (0.02 °F) |
| Temperature Calibrated Accuracy | ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F) ±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F) ±0.4 °C/±0.72 °F (-40 °C to -20.01 °C/-40 °F to +-4.02 °F) |
| Probe Temperature Range | -200 °C to +350 °C (-328 °F to +662 °F) (Body of Logger Cannot Exceed 140 °C) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 662 F (350 C) |
| Min Temperature | -328 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Input Source | Internal Probe |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP68 |
| Product Weight | 0.26 LBS |
| Product Height | 1.9 IN |
| Product Width | 0.97 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
