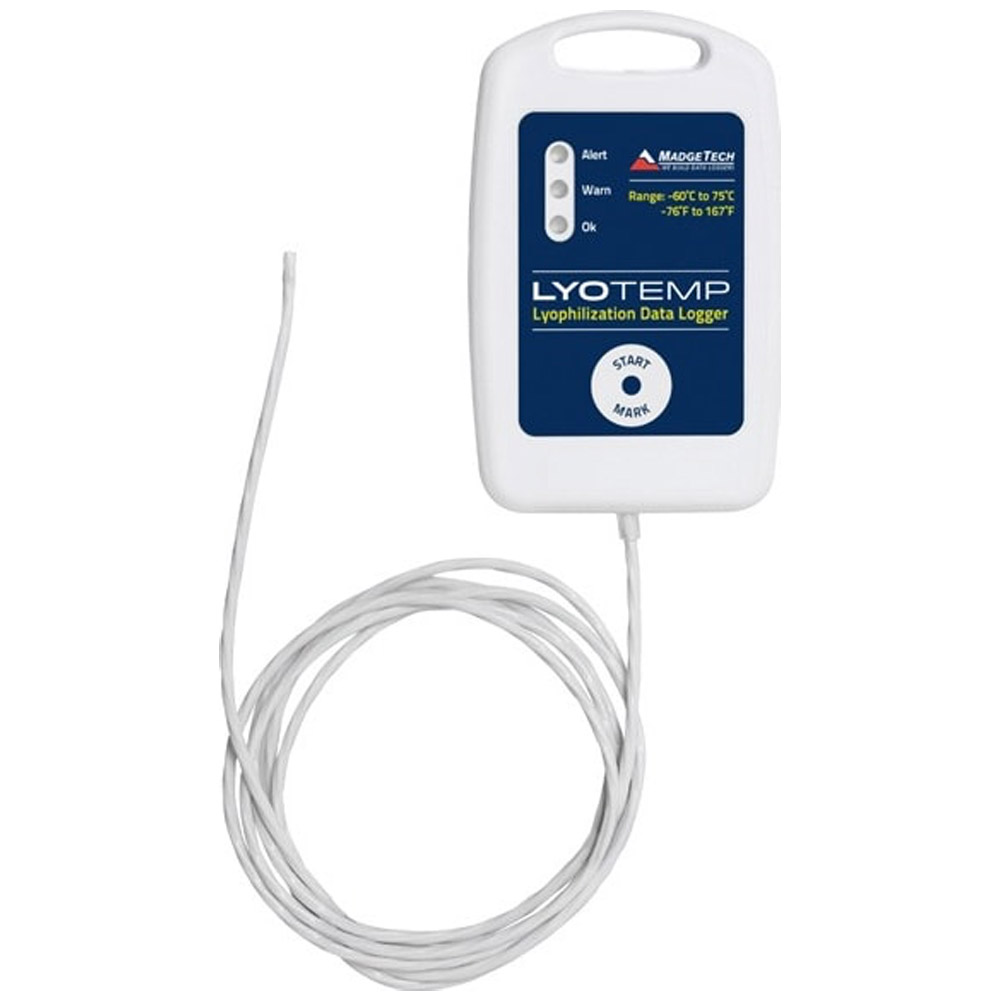

Madgetech LyoTemp Lyophilization Data Logger
 |
|
The LyoTemp Data Logger is designed for use in ultra-low operating temperatures for processes such as Lyophilization. The LyoTemp has an operating range of -60 °C to 75 °C, and is designed with a hermetically sealed thermistor temperature sensing element in a long thin flexible cable form, making it ideal for monitoring products during the lyophilization process.
The LyoTemp data logger offers a smart, affordable solution for a wide range of applications including the preparation of biological pharmaceuticals, monitoring plasma and red cell freezers or dry ice shipments.
The compact size and simple operation make the LyoTemp user friendly and reliable. The LyoTemp has three LED indicators to alert or inform the user of the logging status and manual start and stop options available at the device. Other features of the LyoTemp include delayed start configuration, real-time recording, user configurable alarms and password protection.
Manufacturer Specs
| General Specifications | |
| Memory | 32,767 |
| Reading Rate | 1 reading every 5 seconds up to 1 reading every 30 minutes |
| Single/Multi-Use | Multi-use |
| Battery Life | 1 year typical |
| Material | ABS plastic |
| Dimensions | 3.3 in x 2.1 in x 0.4 in, (83 mm x 54 mm x 11 mm) |
| Operating Environment | -60 °C to +75 °C (-76 °F to +167 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA |
| Required Interface Package | IFC300 |
| Approvals | CE |
| Weight | 0.0880 LBS |
| Temperature | |
| Temperature Sensor | Thermistor |
| Temperature Range | -60 °C to +75 °C (-76 °F to +167 °F) |
| Temperature Resolution | 0.1 °C (0.18 °F) |
| Temperature Calibrated Accuracy | 0.5 °C |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | Other |
| Max Temperature | 167 F (75 C) |
| Min Temperature | -76 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Input Source | Internal Probe |
| Accuracy | ±0.5 °C |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| IP Rating | IP50 |
| Product Weight | 0.088 LBS |
| Product Height | 0.41 IN |
| Product Length | 3.25 IN |
| Product Width | 2.10 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
