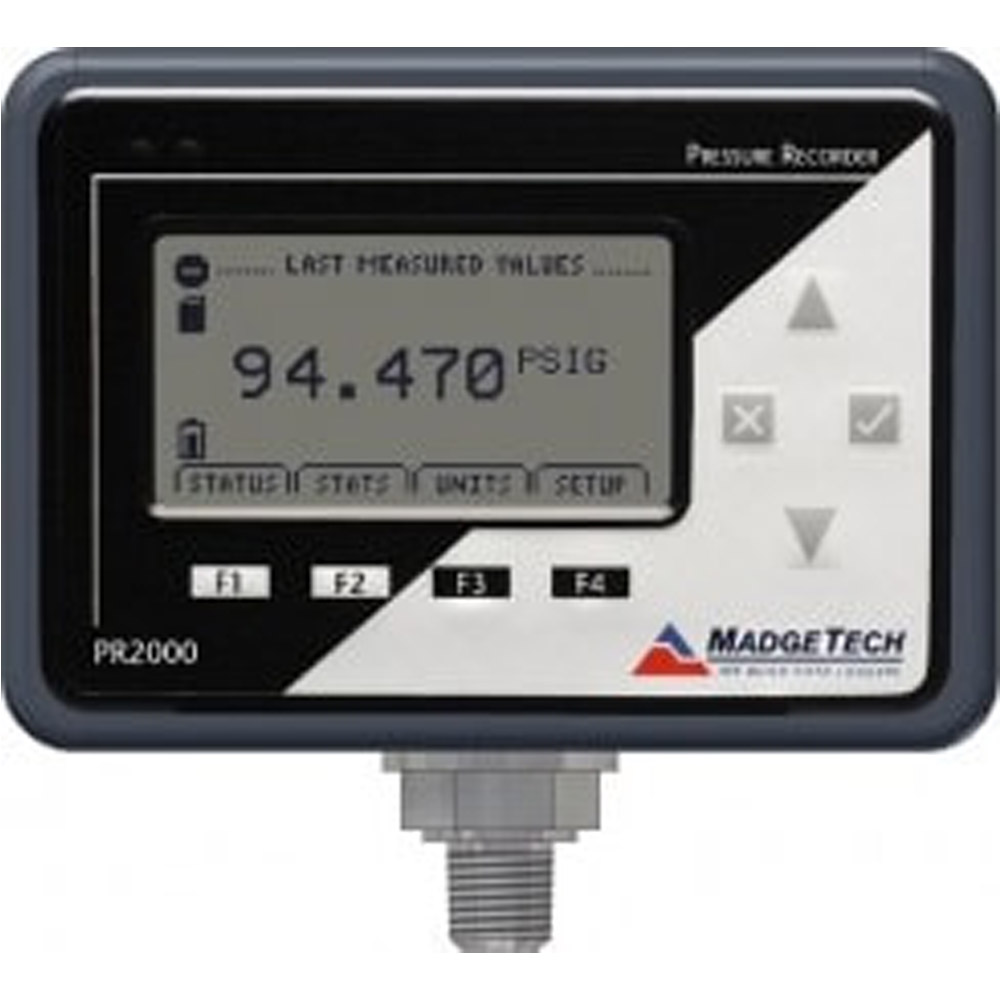

Madgetech PR2000-300-PSIG – Pressure recorder with LCD Display
- 300 PSIG Pressure recorder with LCD Display and universal power supply
- Large, backlit LCD display
- Front keypad w/lock feature
- Standard 1/4 in NPT fitting
- High speed download
The PR2000 is a battery powered pressure recorder, with an LCD display. It is perfect for applications requiring display pressure readings and a logger.
The 8-button keypad and large LCD provide convenient access to current data and recorder setup. Additionally, memory and battery levels, external power status, and sampling and recording status are shown on the LCD.
Available on-screen data includes: statistics (min, max, average); recording status (start, stop and recording rate); display options (units, text size); and calibration information (date calibrated, date for recalibration). Statistics can be cleared at any time during logging.
With 262,143 readings, the PR2000 has one of the largest memory capacities of any similar data recorder on the market. The non-volatile memory will retain recorded data, even if battery power is lost.
A calibration certificate is available for users needing to meet regulatory requirements. Creating permanent records, performing data calculations, and the graphing of data is quick and easy: Simply connect the interface cable to an available USB port and, with a few clicks of the mouse, data is downloaded and ready for review or export to Excel®.
Product Overview
The PR2000 is a pressure data logger with LCD display. The device features an IP rating of 65, which means it is dust proof, and splash proof making it available to be used outdoors. The convenient LCD provides access to the current pressure reading, as well as minimum, maximum and average statistics. A trending graph is also displayed of the last 100 readings.
Manufacturer Specs
| General Specifications | |
| Memory | 262,143 total readings |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Battery Life | 1 year battery life at 1 minute reading rate with display off, 30 days typical with continuous display use. Optional AC adapter available. |
| Material | Black anodized aluminum case/NPT Steel |
| Dimensions | 5.1 in x 4.8 in x 1.705 (130 mm x 122 mm x 43.3 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 2.5000 LBS |
| Pressure | |
| Pressure Sensor | Semiconductor (strain gauge) |
| Pressure Range | 0 to 30, 100, 300, and 500 PSIA/G 0 to 1000 and 5000 PSIA |
| Pressure Resolution | 0 to 30: 0.002, 0 to 100:0.005, 0 to 300: 0.02, 0 to 500: 0.05, 0 to 1000: 0.05 0 to 5000: 0.2 |
| Pressure Calibrated Accuracy | 2 %FSR, 0.25 % at +25 °C (+77 °F) Typical |
| Range | 0-300 |
| Accuracy | 2 %FSR, 0.25 % @ +25 °C (+77 °F) Typical |
| Resolution (PSI) | 0.02 |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Safety Approval | CE |
| Product Weight | 2.50 LBS |
| Product Height | 1.7 IN |
| Product Length | 5.1 IN |
| Product Width | 4.8 IN |
| Data Logging | Yes |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
