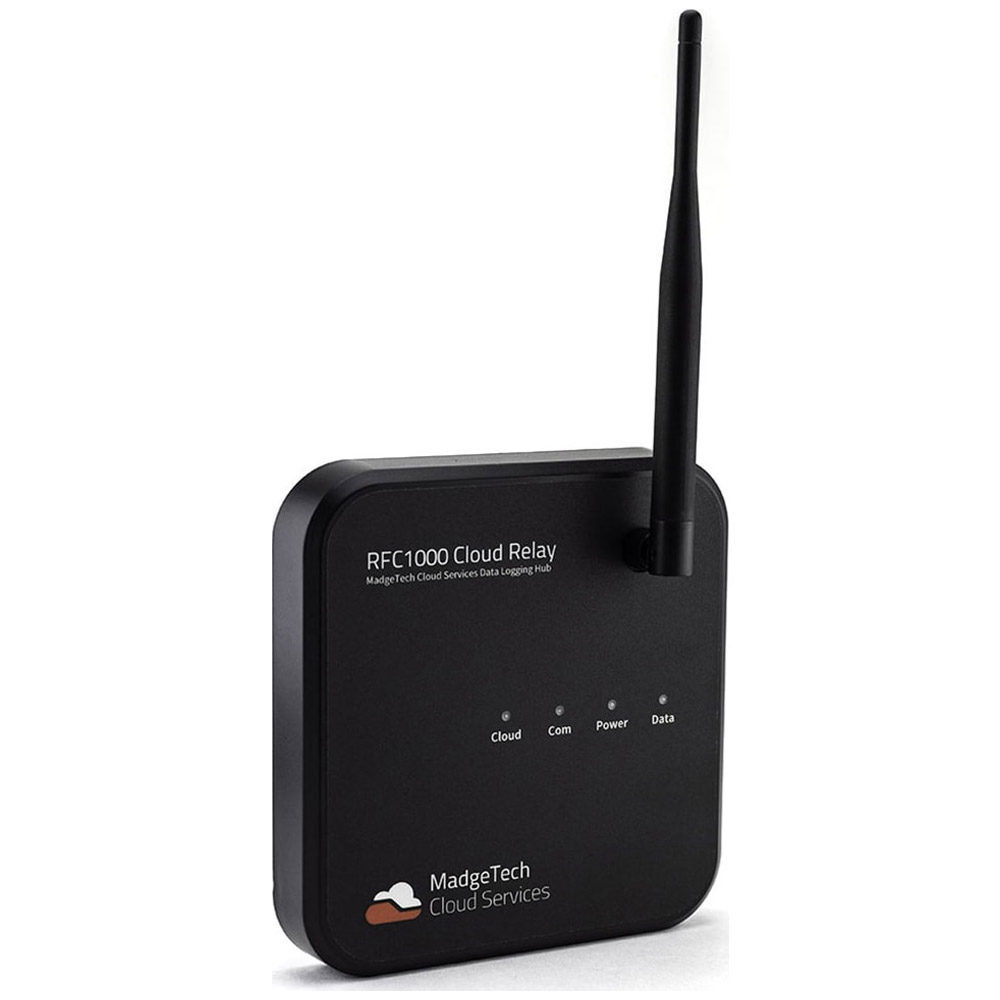

Madgetech RFC1000 Cloud Relay Ethernet Enabled Hub with RFC1000
- Transmits Data to the Cloud
- Virtually Limitless Scalability
- Compatible with the RFOT, Therm-A-lert Series and 2000A Series of Data Loggers
- Configurable Alerts & Notifications
The RFC1000 Cloud Relay is a small, powerful device which transmits real-time and recorded data directly to the MadgeTech Cloud without the need of a central PC. With the RFC1000 Cloud Relay and MadgeTech Cloud Services, real-time data is easily viewed from any internet enabled device, anywhere in the world.
The simple design of the RFC1000 Cloud Relay enables seamless integration and simplicity in implementing a wireless data logging system. Featuring a seven inch pivoting antenna, the RFC1000 Cloud Relay can be easily wall mounted or seated on any flat stable surface.
The RFC1000 Cloud Relay connects directly to an Ethernet jack for internet access to communicate with the MadgeTech Cloud server. Each RFC1000 Cloud Relay can transmit data from up to 64 wireless data loggers, with no limit on the number of Cloud Relays that can be connected to a MadgeTech Cloud account. This provides the ultimate scalable system to accommodate businesses and facilities of all sizes, from a single logger to dozens of locations.
All data is stored in the cloud, with the option to download and save to CSV files for easy record keeping and further analysis.
Manufacturer Specs
| General Specifications | |
| Interface Type | Ethernet; Wireless (to data logger) |
| Operating Environment |
|
| LED Indicators |
|
| Maximum number of connected data loggers | 64 data loggers per RFC1000 Cloud Relay |
| Compatible Data Loggers | RFOT, Therm-A-lert Series and 2000A Series |
| Transmission Distance to Data Logger |
|
| Transmission Distance to RFC1000 |
|
| Enclosure Materials | Body: ABS Plastic Antenna: PVC Plastic |
| Frequency | 2.405 GHz – 2.475 GHz |
| Ingress Protection | IP40 |
| Dimensions |
|
| Weight | 11.29 oz ( 320 g) |
| Approvals | US (FCC), CA (IC) |
