Descripción

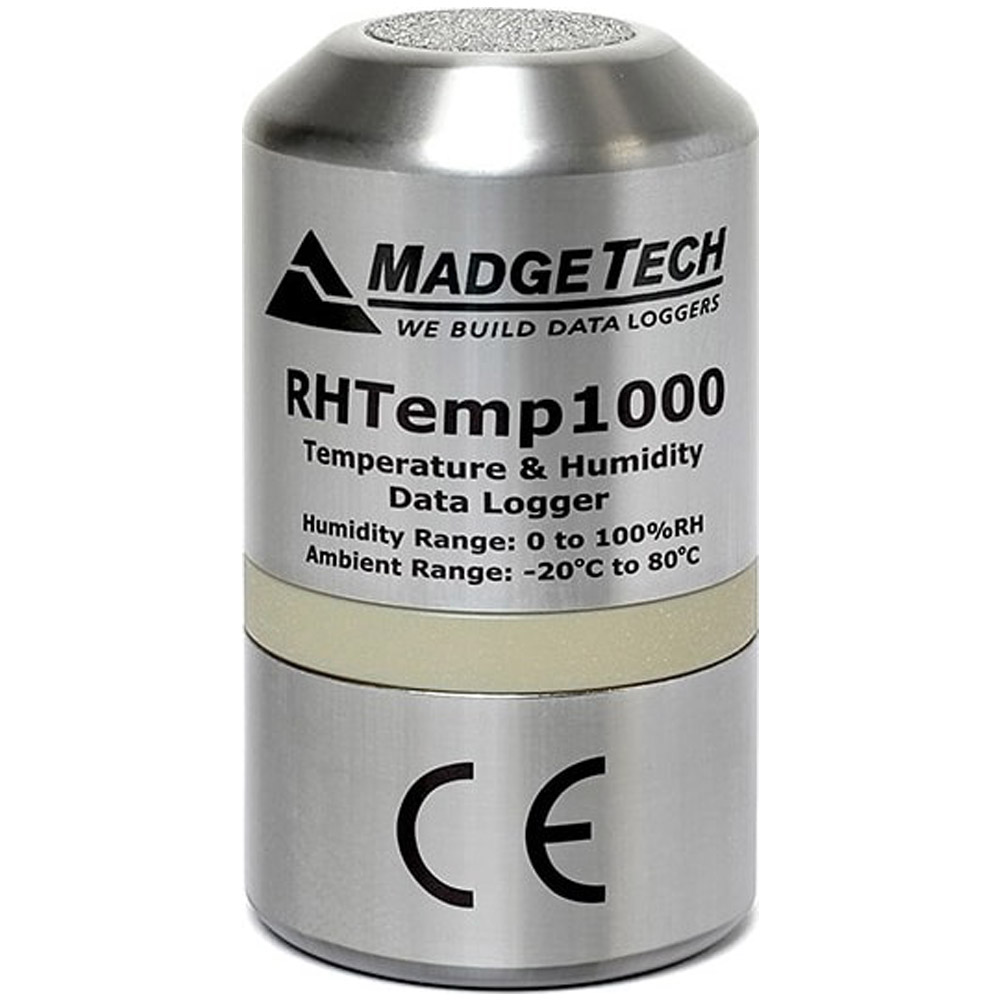

Madgetech RHTemp1000 – Humidity and Temperature Data Logger
- Includes ISO17025 accredited calibration certificate
- Software Battery Life Indicator
- 316 Stainless Steel Enclosure
- Small, sleek design
- Fast Response Time
The new RHTemp1000 humidity and temperature logger is a rugged, IP30, battery-powered, stand-alone device which can be used to automatically record humidity and temperature. This all-in-one compact, portable, easy-to-use device is able to measure and record up to 16,350 humidity and temperature measurements.
The RHTemp1000 is ideal for use in harsh environments. Its real-time clock ensures that all the data is time and date-stamped. The storage medium is non-volatile solid-state memory, providing maximum data security even if the battery becomes discharged. With the added battery life indicator feature, users can now easily identify low voltage and change batteries before usage. The device can be started and stopped directly from your computer and its small, sleek size allows it to fit almost anywhere. The RHTemp1000 makes data retrieval quick and easy. Simply insert the device into the IFC400 or the IFC406 USB docking station (sold separately) and our user-friendly software does the rest. No more removal of end-caps to download your data!
The MadgeTech software is a powerful, analytic tool, available to download for free from our website www.madgetech.com. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis.
Benefits
- Faster Downloads (1 min. full memory)
- Docking station communication
- Easily identify low battery voltage
Applications
- Implement HACCP Programs
- Environmental studies
- Hostile environment monitoring
- Medical & Pharmaceutica
Manufacturer Specs
| General Specifications | |
| Memory | 16,350 readings per channel |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Life | 2 years typical at 25 °C, 15 minute reading intervals |
| Material | 316 Stainless Steel |
| Dimensions | 1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm) |
| Operating Environment | -20 °C to +80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH (non-condensing) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Weight | 0.3125 LBS |
| Temperature | |
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-4 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (+5 °C to +55 °C) |
| Humidity | |
| Humidity Sensor | Capacitive Polymer |
| Humidity Range | 0 %RH to 100 %RH (non-condensing) |
| Humidity Resolution | 0.1 %RH |
| Humidity Calibrated Accuracy | ±3 %RH maximum (+5 °C to +55 °C) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 17520 HR |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.3125 LBS |
| Product Height | 0.97 IN |
| Product Length | 1.7 IN |
| Product Width | 0.97 IN |
| Calibration Included | NIST Calibration |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
