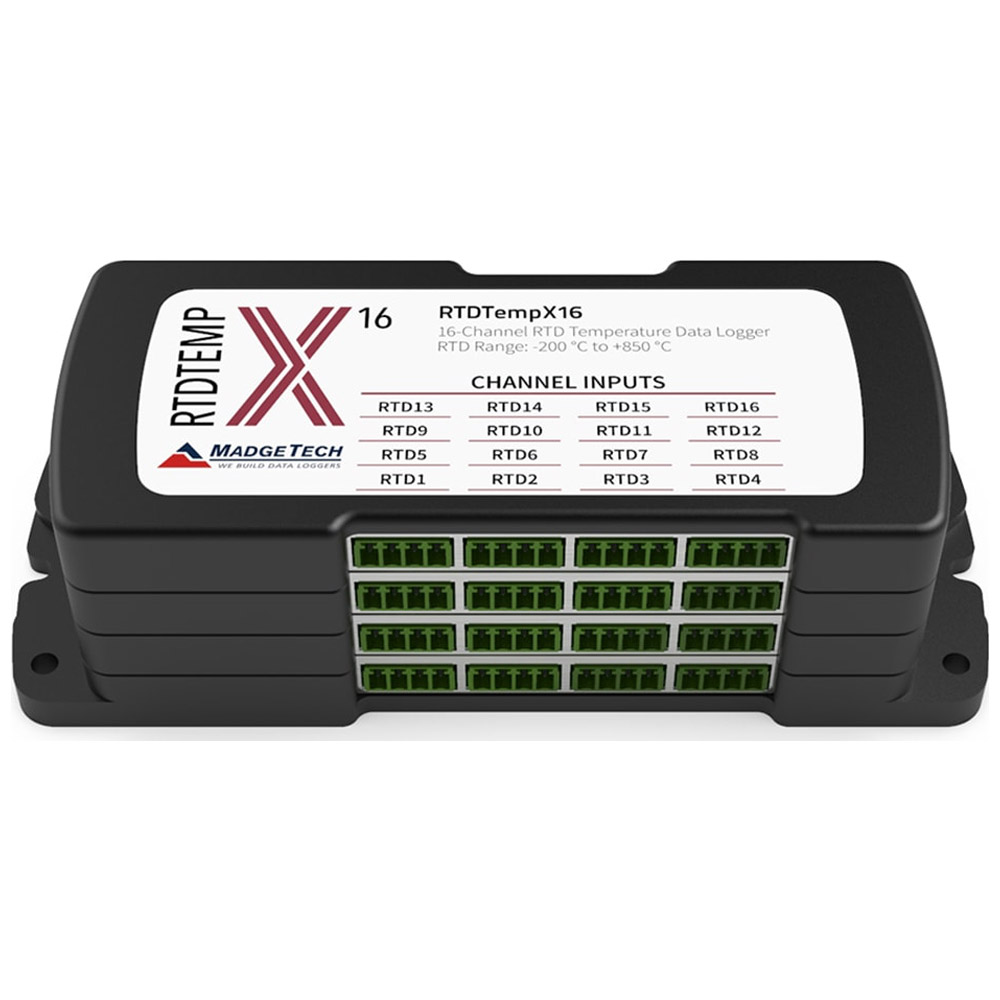

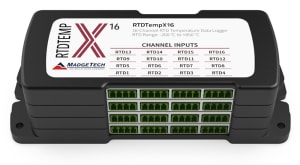

Madgetech RTDTempX16 – 16-Channel RTD Temperature Data Loggers
16-channel: 174,677 readings per channel
- ±0.04 °C Calibrated Accuracy
- Real time Operation
- Up to 4 Hz Reading Rate
The RTDTempX Series includes 4, 8, 12 and 16-channel RTD-based temperature data loggers. This series accepts 2, 3 and 4-wire RTDs to measure and record temperatures from -200 ºC to +850 ºC (-328 ºF to +1562 ºF) with a calibration accuracy of ±0.04 °C (±0.072 °F), all probe dependent.
The RTDTempX Series packs a memory capacity of 2,794,236 readings. To maximize memory capacity, users can enable or disable channels. There’s no interface necessary, the RTDTempX Series uses standard USB-A to Micro USB cable.
The RTDTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MadgeTech 4 Software Features
Graph View
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Cooling Flags
Export to Excel
Tabular Data View
Automation
Manufacturer Specs
| General Specifications | |
| Memory | 16-channel: 174,677 readings per channel |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Channels | 4, 8, 12, 16 |
| Battery Life | 18 Months |
| Material | Black anodized aluminum |
| Dimensions | 16-channel: 2.70 in x 7.25 in x 2.14 in(65.6 mm x 184.2 mm x 54.4 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF),0 %RH to 95 %RH non-condensing |
| Temperature | |
| Temperature Sensor | External: 2,3, or 4 wire RTD |
| Temperature Range | 18.5 Ω to 390.5 Ω -200 ºC to +850 ºC (-328 ºF to +1562 ºF) (Probe Dependent) |
| Temperature Resolution | 0.0001 Ω0.001 °C (0.0018 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω @ 25 ºC (77 °F) ambient ±0.04 °C (±0.072 °F) (Probe Dependent) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | 3A992 |
| Country of Origin | United States |
