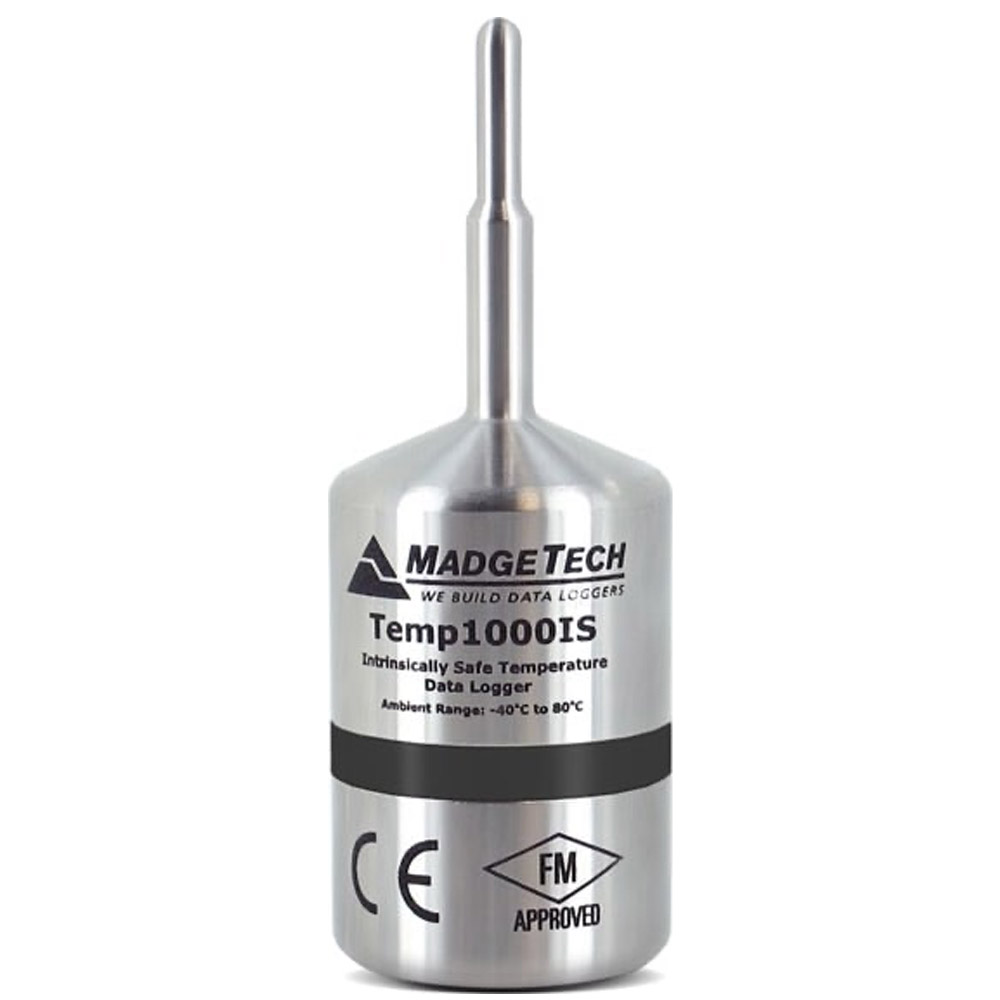

Madgetech Temp1000IS Temperature Data Logger
 |
|
The Temp1000IS temperature data logger is a rugged, battery powered, stand alone device which can be used to automatically record temperatures between -40 °C and 80 °C (-40 °F to +176 °F). This all in one compact, portable, easy to use device is able to measure and record data for up to 32,767 temperature readings.
The Temp1000IS has been Factory Mutual certified as intrinsically safe for Class I, Division 1, groups A, B, C and D and non-incendive for Class I, Division 2 groups A, B, C and D hazardous environments. This certification makes the device ideal for uses such as EtO sterilization, environmental studies and numerous other hostile environment applications.
Its Real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The Temp1000IS makes data retrieval quick and easy. Simply plug the device into an empty COM and USB port and our user-friendly software does the rest.
Manufacturer Specs
| General Specifications | |
| Memory | 32,767 Readings |
| Reading Rate | 1 reading every 2 seconds to 1 reading every 12 hours |
| Battery Life | 2 year typical at 15 minute reading rate |
| Material | 316 Stainless Steel |
| Dimensions | 2.65 in x .97 in dia. (67.3 mm x 24.6 mm dia.) |
| IP Rating | (Not Rated) Caution: Do not submerge this product to retain IS rating. |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (case properly sealed) |
| Required Interface Package | IFC400 |
| Approvals | CE, IS rated |
| Weight | 0.2500 LBS |
| Temperature | |
| Temperature Sensor | Semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C) ±0.9 °F (32 °F to 122 °F) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 2 YEARS (17520 HR) |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Product Weight | 0.187 LBS |
| Product Length | 2.65 IN |
| Product Width | 0.97 IN |
| Power Supply Voltage | Battery Powered |
