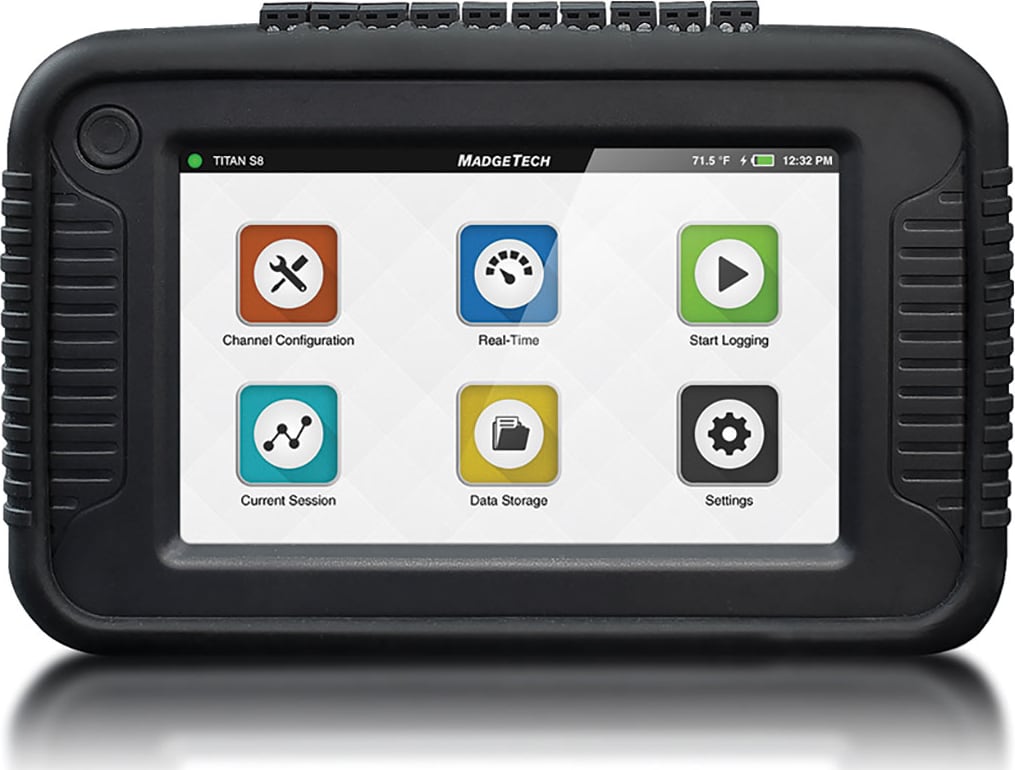

Madgetech Titan S8

8 Channel, Portable Data Acquisition Logger with 5 inch Touch Screen
- WiFi & Ethernet Enabled
- Large Touchscreen Control
- Independent Channel Configuration
- Directly Accepts Thermocouple, RTD & Thermistor Probes
The Titan S8 is an 8-channel, remote access data acquisition logger with a full-color, 5 inch touchscreen interface for real-time monitoring.
This versatile device supports thermocouple, RTD and thermistor probes to measure current, voltage, temperature and pulse. The Titan S8 is an all-in-one solution, allowing users to view all 8 channels simultaneously without the need for a PC or software. With 1 GB of internal memory, the Titan S8 can store up to 5,000,000 readings which can be download to a USB for further analysis.
The handheld Titan S8 provides customizable solutions including channel configurations, engineering units and alarms for benchmark or undesirable readings.
Manufacturer Specs
| General Specifications | |
| Channels | 8 channels (Temperature, Current, Frequency, Voltage, Pulse) |
| Battery Life | 10 hours continuous use |
| Material | PC / ABS Enclosure, TPE Protective Boot |
| Dimensions | 6.65 in x 4.40 in x 1.41 in (168.9 mm x 111.8 mm x35.8 mm) Data logger only. 5 in touch screen. |
| IP Rating | IP20 |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | E, J, K, Other, RTD, S, T |
| Max Temperature | 850 C |
| Min Temperature | -200 C (-328 F) |
| Power Source | Battery |
| Battery Life | 9 HR |
| Input Source | External Probe |
| Accuracy | ±0.024 mA (0 to 24 mA) ±0.1 mV (0 to 100 mV) ± 0.01 V (-0.5 V to 12.5 V) |
| LCD Screen | Yes |
| Software Included | Yes |
| Data Output Format | csv |
Test Equipment General Attributes |
|
| IP Rating | IP20 |
| Product Weight | 1.3 LBS |
| Product Height | 6.65 IN |
| Product Length | 4.40 IN |
| Product Width | 1.14 IN |
| Data Logging | Yes |
| Battery Type | Li-ion |
