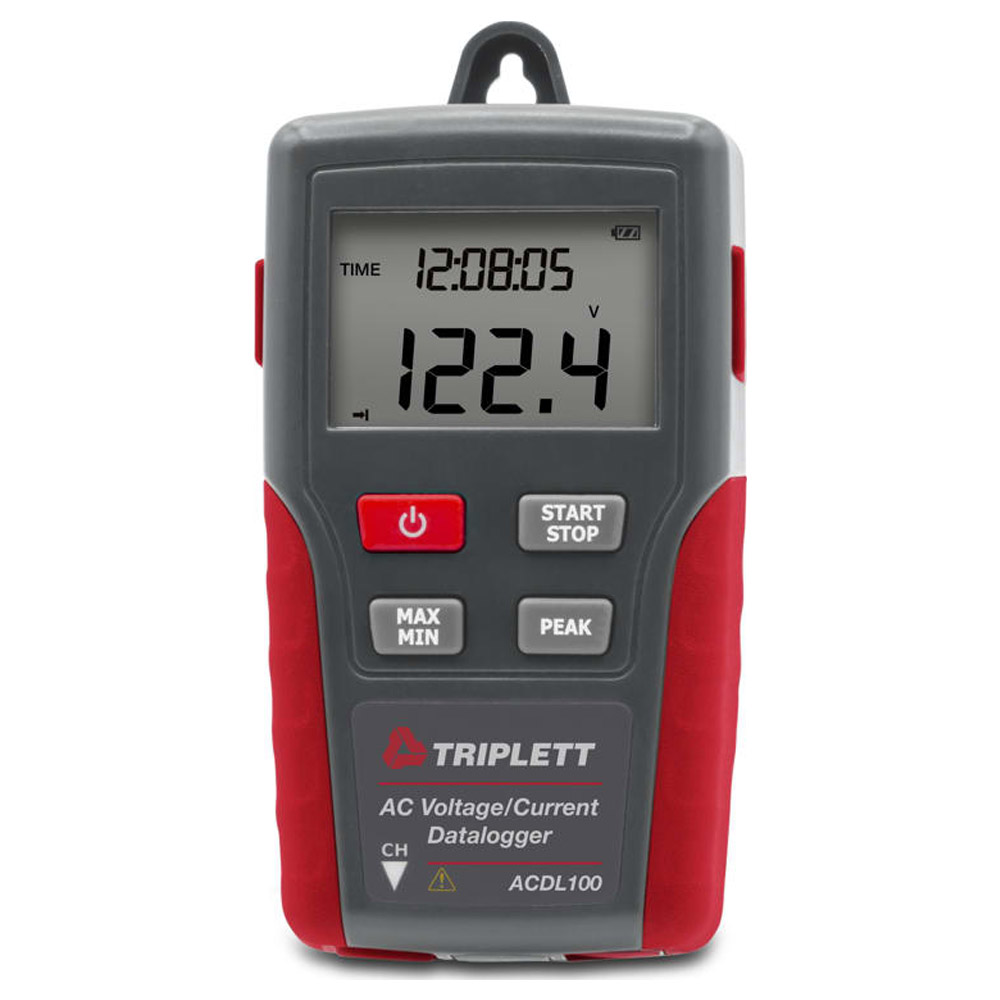

Triplett ACDL100
- Datalog up to 100,000 measurements
- Single-channel recording of TRMS AC Voltage (600V) or Current (200A)
- 1 second to 24-hour selectable sampling rate
- Jaw size 0.5” (12.7mm)
- Multifunction LCD display
True RMS AC Voltage/Current Datalogger
The Triplett Model ACDL100 True RMS AC Voltage/Current Datalogger can datalog up to 100,000 measurements and provides single channel recording of TRMS AC Voltage (600V) or Current (200A) using a 1 second to 24 hour selectable sampling rate. Features include a multifunction LCD display, real time clock, Min/Max recalls highest and lowest readings, and Peak Hold displays average peak measurement.1 year warranty.
Manufacturer Specs
| Triplett ACDL100 Specifications | |
| Channels | Single, TRMS AC Voltage, or Current |
| AC Voltage Range (40 – 1kHz) | 10V – 600.0V |
| Accuracy | +/-1.5% |
| +/-1V | |
| AC Current Range (50Hz / 60Hz) | 10A – 200.0A |
| Accuracy | +/-2% |
| +/-1A | |
| Datalogger | 100,000 points |
| Sample Rate | Selectable 1 Second To 24 Hours |
| PC Interface | USB Port |
| Power | (4) AAA Batteries Or AC Adapter |
| Dimensions | 4.5″ x 2.5″ x 1.3″ |
| 114mm x 63mm x 34mm | |
| Weight | 8.7 oz |
| 248 g | |
Tech Specs
Dataloggers / Data Acquisition/Current Dataloggers Template |
|
|---|---|
| Max Current | 200 A |
| Min Current | 10 A |
| # Data Points | 100000 |
| # Inputs/Channels | 1 |
| TRMS | Yes |
| Input Type | Current Output, Voltage Output |
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
| Max Voltage | 600 V |
| Min Voltage | 10 V |
Test Equipment General Attributes |
|
| Product Weight | 0.55 LBS |
| Product Height | 4.5 IN |
| Product Length | 1.3 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 0.63 LBS |
