Descripción

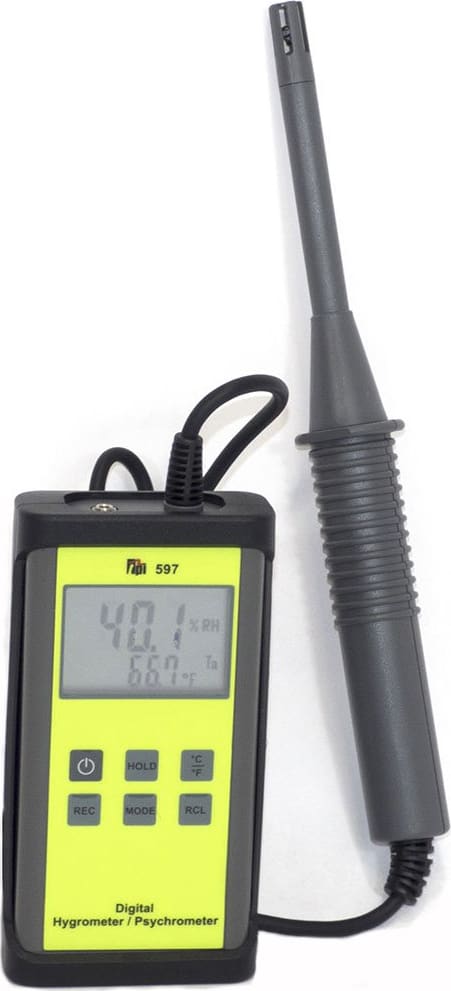

TPI 597C1 Digital Hygometer/Psychrometer
- Measure dew point and wet bulb temperature
- Small diameter (0.45”) probe for measuring in air ducts
- Relative Humidity (RH) accuracy of +/-2% provides accurate reliable readings
- Measure relative humidity and temperature
- Data record function stores minimum and maximum humidity and temperature measurement
- Serial output through RS-232 port
- 39” hard wired probe
- Auto power off
- Protective rubber boot
The TPI 597 digital hygrometer / psychrometer is a state of the art, easy to use humidity tester designed to display ambient, dew point, and wet bulb temperature as well as humidity. The instrument is ruggedly constructed and comes with a 3 Year Guarantee.
Applications
- Building maintenance
- Computer rooms
- Heating & air conditioning systems
- Bakeries
- Humidistats calibration
Manufacturer Specs
| Model 597C1 Specifications | |
| Relative Humidity (RH) | 0% to 100% (Temp: 32°F to 122°F / 0°C to 50°C) |
| RH Accuracy | 30% to 85% = ±(2% of rdg + 2%RH) ( 59°F to 104°F / 15°C to 40°C) <30% and >85% = ±3%RH ( 59°F to 104°F / 15°C to 40°C) ±5% RH at temperatures <59°F (15°C) or >104°F (40°C) |
| Temperature | -40°F to 122°F -40°C to 50°C |
| Temperature Accuracy | ±(0.5% of rdg + 1°F + 3 digits) |
| Units of Measure | °C / °F |
| Dew Point | Yes |
| Wet Bulb | Yes |
| RS-232 Output | Yes |
| Min/Max Record | Yes |
| Operating Temperature (Base Unit) | 32°F to 122°F |
| Operating Humidity (Base Unit) | <90% non-condensing |
| Battery Type | 9V |
| Battery Life | 30 hours typical |
| Dimension W x L x H | 2.9” x 5.7” x 1.1” |
| Weight | 0.3lb |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 50 C |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 30 HR |
| LCD Screen | Yes |
| RH | 100 % |
| Dew Point | Yes |
Environmental Testers / Physical Property/Hygrometers Template |
|
| Measure Temperature | Yes |
| Dual Display | No |
| Style (Hygrometers) | Hand Held |
| Display Hold | Yes |
| Humidity Accuracy | +/- 2% RH |
| Dual Thermometer Measurement | No |
| Temperature Accuracy | +/- .05% of reading + 0.8F + 3 digits |
Environmental Testers / Physical Property/Psychrometer Template |
|
| Style (Psychrometer) | Hand Held |
| Measurement Types (Psychrometer) | Dew Point, Temperature T/C, Wet Bulb |
| Min/Max Memory | Yes |
Test Equipment General Attributes |
|
| Unique Features | 2% RH accurate sensor |
| Warranty | 3 YEARS |
| Safety Approval | CE, UL |
| Interfaces I/O | RS-232 |
| Product Weight | 0.3 LBS |
| Product Height | 1.1 IN |
| Product Length | 5.7 IN |
| Product Width | 2.9 IN |
| HTS/Schedule B Number | 9025.80.40 |
| ECCN Number | EAR99 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| Shipping Height | 3.00 IN |
| Shipping Length | 12.75 IN |
| Shipping Width | 6.75 IN |
| Other Information | Display: Dual digits LCD with function annunciation
Measurement: R/H(Relative Humidity) 0 ~ 100% Temperature: -40°C – 100°C (-40°F – 212°F) |
