Descripción

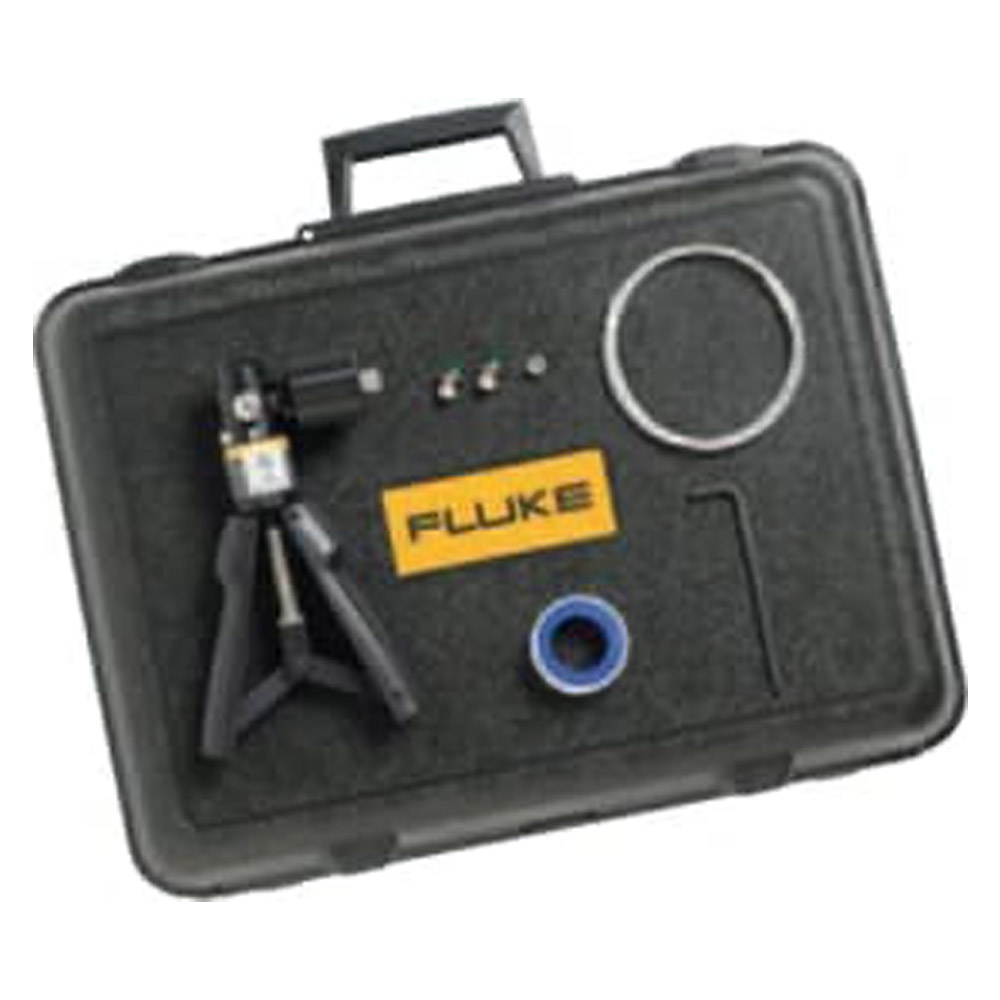

Fluke 700PTPK Pneumatic Test Pump Kit, 0 TO 600 PSI/40 BAR.
Generates pressure up to 600 psi, 41 bar. Includes the 700PTP-1 pneumatic hand pump, test hoses and adapters, and protective hard case.
Manufacturer Specs
| Model | Range | Resolution | Accuracy | Burst Pressure |
| 700G01 | -10 to +10 inH2O | 0.001 inH20 | Positive pressure ± 0.1 % of range, Vacuum ± 0.1 % of range |
3 psi |
| -20 mbar to 20 mbar | 0.0001 bar | 210 mbar | ||
| 700G02 | 1 to +1 psi | 0.0001 psi | 5 psi | |
| -70 mbar to 70 mbar | 0.001 mbar | 350 mbar | ||
| 700G04 | -14 psi to 15 psi | 0.001 psi | Positive pressure ± 0.05 % FS Vacuum ± 0.1 % FS |
60 psi |
| -.97 bar to 1 bar | 0.0001 bar | 4 bar | ||
| 700G05 | -14 psi to 30 psi | 0.001 psi | 120 psi | |
| -.97 bar to 2 bar | 0.0001 bar | 8 bar | ||
| 700G06 | -12 psi to 100 psi | 0.01 psi | 400 psi | |
| -.83 bar to 6.9 bar | 0.0001 bar | 26 bar | ||
| 700G07 | -12 psi to 500 psi | 0.01 psi | 2000 psi | |
| -.83 bar to 34 bar | 0.001 bar | 138 bar | ||
| 700G08 | -14 psi to 1000 psi | 0.1 psi | 4000 psi | |
| -.97 bar to 69 bar | 0.001 bar | 266 bar | ||
| 700G10 | -14 to 2000 psi | 0.1 psi | 8000 psi | |
| -.97 bar to 140 bar | 0.01 bar | 690 bar | ||
| 700G27 | -12 psi to 300 psi -.83 bar to 20 bar |
0.01 psi 0.001 bar |
1200 psi 80 bar |
|
| 700G29 | -14 psi to 3000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 200 bar | 0.01 bar | 690 bar | ||
| 700G30 | -14 psi to 5000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 340 bar | 0.01 bar | 690 bar | ||
| 700G31 | -14 psi to 10000 psi | 1 psi | 20000 psi | |
| -.97 bar to 690 bar | 0.01 bar | 1035 bar | ||
| 700GA4 | 0 to 15 psia | 0.001 psi | ± 0.05 % of range | 60 psi |
| 0 to 1 bar absolute | 0.0001 bar | 4 bar | ||
| 700GA5 | 0 to 30 psia | 0.001 psi | 120 psi | |
| 0 to 2 bar absolute | 0.0001 bar | 8 bar | ||
| 700GA27 | 0 to 300 psia | 0.01 psi | 120 psi | |
| 0 to 20 bar absolute | 0.001 bar | 80 bar | ||
| 700RG05 | -14 to +30 psi -0.97 to +2 bar |
0.001 psi 0.0001 bar |
Positive pressure ± 0.04 % of reading ± .01 % of range, Vacuum ± 0.05 % of range |
90 psi 6 bar |
| 700RG06 | -12 to 100 psi | 0.01 psi | Positive pressure, ± 0.04 % of reading ± 01 % of range, Vacuum ± 0.1 % of range |
400 psi |
| -0.83 to 6.9 bar | 0.0001 bar | 27 bar | ||
| 700RG07 | -12 to 500 psi | 0.01 psi | 2000 psi | |
| -0.83 to 34 | 0.001 bar | 138 bar | ||
| 700RG08 | -14 to 1000 psi | 0.1 psi | 4000 psi | |
| -0.97 to 69 bar | 0.001 bar | 275 bar | ||
| 700RG29 | -14 to 3000 psi | 0.1 psi | 10000 psi | |
| -0.97 to 200 bar | 0.01 bar | 690 bar | ||
| 700RG30 | -14 to 5000 psi | 0.1 psi | 15000 psi | |
| -0.97 to 340 bar | 0.01 bar | 1035 bar | ||
| 700RG31 | -14 to 10000 psi | 1 psi | 20000 psi | |
| -0.97 to 690 bar | 0.01 bar | 1380 bar |
| 700R Ranges: Temperature Compensation 0 e°C to 50 °C (32 °F to 122 °F) to rated accuracy. For temperatures from -10 °C to 0 °C and 50 °C to 55 °C, add .005 % FS/°C |
|
Media compatibility
|
|
| Mechanical specifications | |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5in x 4.5in x 1.5in) |
| Pressure connection | ¼ in NPT Male |
| Housing/Weight | Cast ZNAL 0.56 kg (1.22 lb) with holster |
| Display | 5 ½ digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100% |
| Power | Three AA alkaline batteries |
| Battery life | 1,500 hours without backlight (continuous on), 2,000 hours at slow sample rate |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 600 psi |
| Maximum Range Vacuum | -13.9 |
| Fluid Compatability | Air |
| Adjustable Vent Release | Yes |
| Adjustable Vacuum Release | Yes |
| Kits Available | Yes |
Test Equipment General Attributes |
|
| Unique Features | Pump can be easily cleaned without disassembly. he vernier can be used as a stand-alone low pressure calibration source. Two pressure ports allowing simultaneous connection. Adjustable stroke length can be set to limit the pressure per stroke. |
| Warranty | 1 YEARS |
| Product Height | 5.25 IN |
| Product Length | 19.50 IN |
| Product Width | 14.75 IN |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 5.25 IN |
| Shipping Length | 19.50 IN |
| Shipping Width | 14.75 IN |
