Descripción

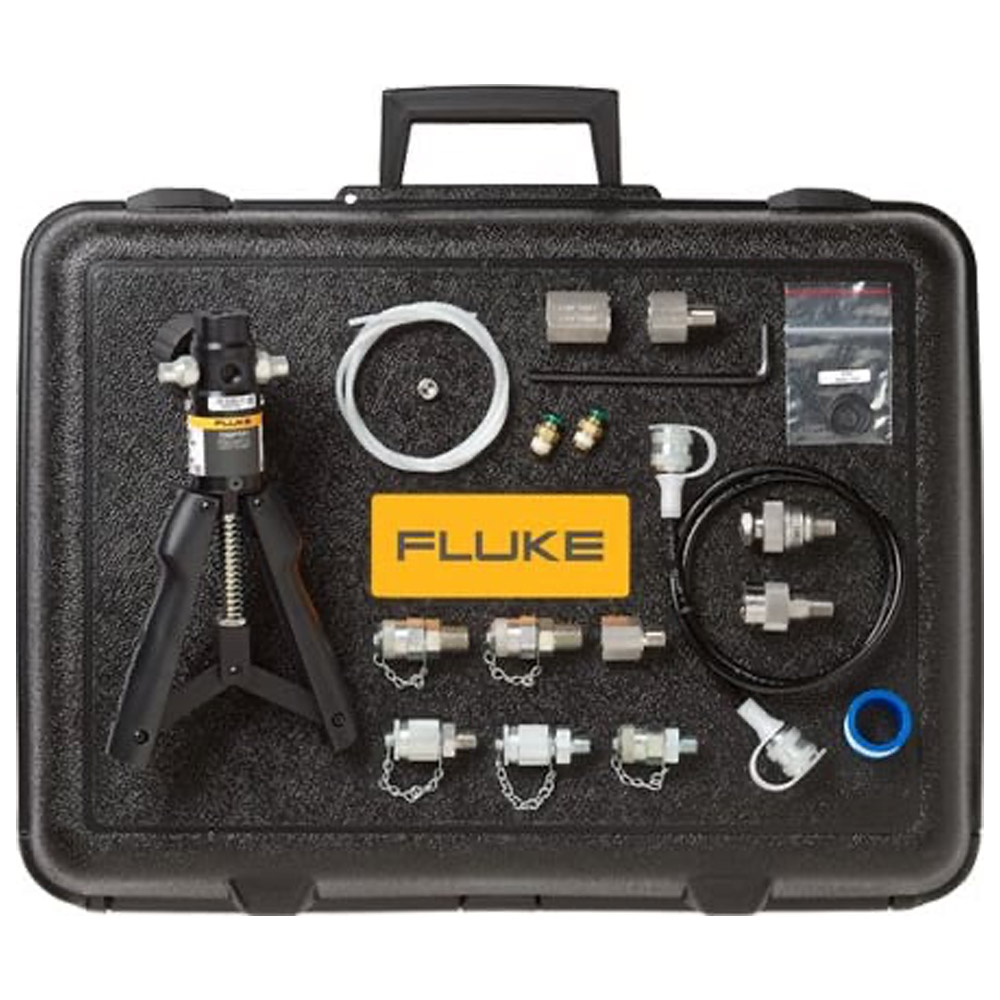

Fluke 700PTPK2 Premium Pneumatic Test Pump Kit.
Rugged, high-quality premium pneumatic pressure pump kit for fast and accurate test results generates pressure up to 600 psi, 40 bar. Includes the 700PTP-1 pneumatic hand pump, premium test hoses and adapters, and protective hard case.
The Fluke-700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.
For use with 700 series pressure modules or test gauges. Can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.
Manufacturer Specs
| Model | Range | Resolution | Accuracy | Burst Pressure |
| 700G01 | -10 to +10 inH2O | 0.001 inH20 | Positive pressure ± 0.1 % of range, Vacuum ± 0.1 % of range |
3 psi |
| -20 mbar to 20 mbar | 0.0001 bar | 210 mbar | ||
| 700G02 | 1 to +1 psi | 0.0001 psi | 5 psi | |
| -70 mbar to 70 mbar | 0.001 mbar | 350 mbar | ||
| 700G04 | -14 psi to 15 psi | 0.001 psi | Positive pressure ± 0.05 % FS Vacuum ± 0.1 % FS |
60 psi |
| -.97 bar to 1 bar | 0.0001 bar | 4 bar | ||
| 700G05 | -14 psi to 30 psi | 0.001 psi | 120 psi | |
| -.97 bar to 2 bar | 0.0001 bar | 8 bar | ||
| 700G06 | -12 psi to 100 psi | 0.01 psi | 400 psi | |
| -.83 bar to 6.9 bar | 0.0001 bar | 26 bar | ||
| 700G07 | -12 psi to 500 psi | 0.01 psi | 2000 psi | |
| -.83 bar to 34 bar | 0.001 bar | 138 bar | ||
| 700G08 | -14 psi to 1000 psi | 0.1 psi | 4000 psi | |
| -.97 bar to 69 bar | 0.001 bar | 266 bar | ||
| 700G10 | -14 to 2000 psi | 0.1 psi | 8000 psi | |
| -.97 bar to 140 bar | 0.01 bar | 690 bar | ||
| 700G27 | -12 psi to 300 psi -.83 bar to 20 bar |
0.01 psi 0.001 bar |
1200 psi 80 bar |
|
| 700G29 | -14 psi to 3000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 200 bar | 0.01 bar | 690 bar | ||
| 700G30 | -14 psi to 5000 psi | 0.1 psi | 10000 psi | |
| -.97 bar to 340 bar | 0.01 bar | 690 bar | ||
| 700G31 | -14 psi to 10000 psi | 1 psi | 20000 psi | |
| -.97 bar to 690 bar | 0.01 bar | 1035 bar | ||
| 700GA4 | 0 to 15 psia | 0.001 psi | ± 0.05 % of range | 60 psi |
| 0 to 1 bar absolute | 0.0001 bar | 4 bar | ||
| 700GA5 | 0 to 30 psia | 0.001 psi | 120 psi | |
| 0 to 2 bar absolute | 0.0001 bar | 8 bar | ||
| 700GA27 | 0 to 300 psia | 0.01 psi | 120 psi | |
| 0 to 20 bar absolute | 0.001 bar | 80 bar | ||
| 700RG05 | -14 to +30 psi -0.97 to +2 bar |
0.001 psi 0.0001 bar |
Positive pressure ± 0.04 % of reading ± .01 % of range, Vacuum ± 0.05 % of range |
90 psi 6 bar |
| 700RG06 | -12 to 100 psi | 0.01 psi | Positive pressure, ± 0.04 % of reading ± 01 % of range, Vacuum ± 0.1 % of range |
400 psi |
| -0.83 to 6.9 bar | 0.0001 bar | 27 bar | ||
| 700RG07 | -12 to 500 psi | 0.01 psi | 2000 psi | |
| -0.83 to 34 | 0.001 bar | 138 bar | ||
| 700RG08 | -14 to 1000 psi | 0.1 psi | 4000 psi | |
| -0.97 to 69 bar | 0.001 bar | 275 bar | ||
| 700RG29 | -14 to 3000 psi | 0.1 psi | 10000 psi | |
| -0.97 to 200 bar | 0.01 bar | 690 bar | ||
| 700RG30 | -14 to 5000 psi | 0.1 psi | 15000 psi | |
| -0.97 to 340 bar | 0.01 bar | 1035 bar | ||
| 700RG31 | -14 to 10000 psi | 1 psi | 20000 psi | |
| -0.97 to 690 bar | 0.01 bar | 1380 bar |
| Fluke 700PTP-1 Mechanical & General Specifications | |
| Size | length 8.7 in (220 mm), width 4.8 in (122 mm), depth 3.5 in (89 mm) |
| Weight | 1.03 lb (467 g) |
| Warranty | One year |
| Material | Wetted materials: aluminum, silicon, neoprene, stainless steel, Buna-N |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Maximum Range Pressure (Gauges) | 600 psi |
Test Equipment General Attributes |
|
| Product Height | 5.25 IN |
| Product Length | 19.25 IN |
| Product Width | 15.00 IN |
| HTS/Schedule B Number | 8413.20.0000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
| Shipping Height | 5.25 IN |
| Shipping Length | 19.25 IN |
| Shipping Width | 15.00 IN |
