Descripción

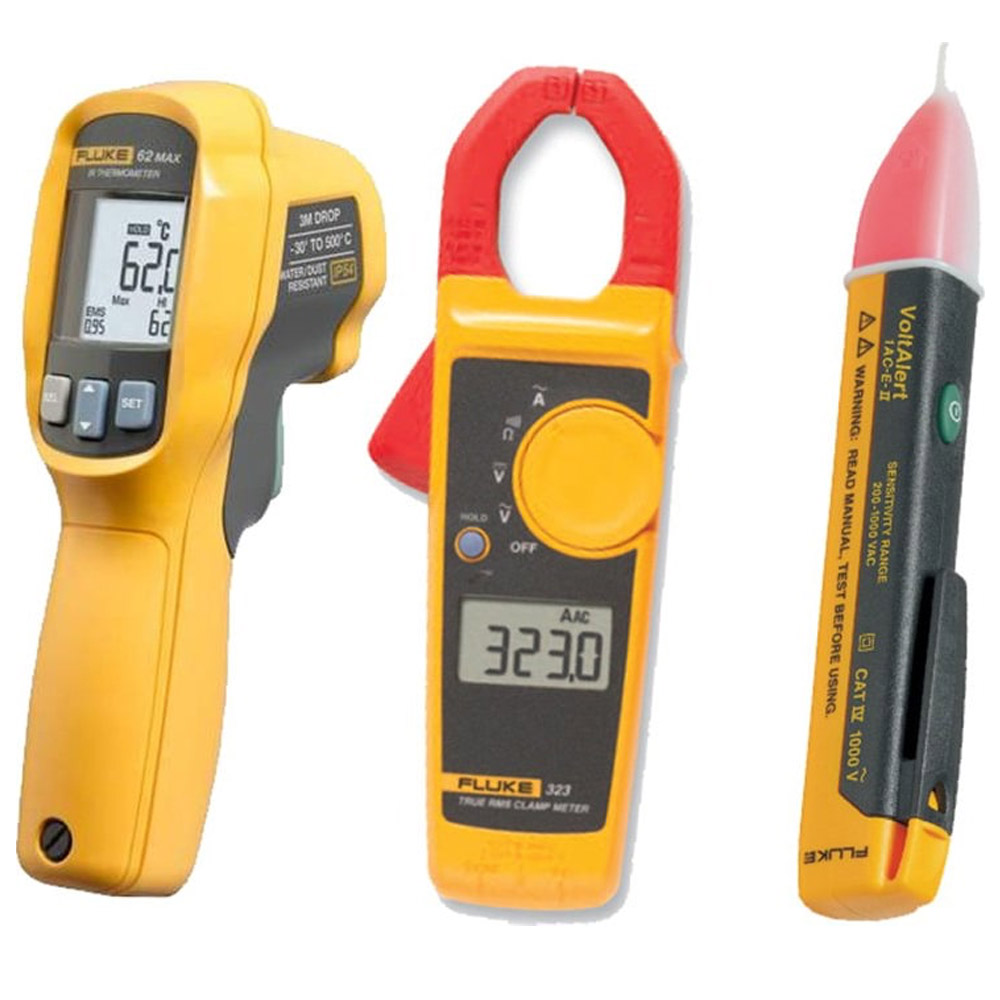

Fluke 62 MAX+ Handheld Infrared Thermometer
Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62+ MAX infrared thermometers are everything you’d expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62+ MAX are so tough, they’re the only IR thermometers around you can handle without care.
The Fluke 62 MAX is ideal for quick temperature scans of systems to look for anything from unusual hot spots that signal electrical and electro-mechanical malfunctions to undesirable air intake/output patterns in the building envelope. Because infrared measurement does not require making contact with the surface being measured, technicians can make the measurements from a distance, away from moving machinery or live electrical connections.
The 62 MAX has a distance-to-spot ratio of 10:1 and measures temperatures from 30°C to 500°C with an accuracy ± 1.5% of the reading. The 62+ MAX has a distance-to-spot ration of 12:1 and measures 30°C to 650°C with an accuracy ± 1.0% of the reading.
Both IR thermometers operate on a single AA battery.
Fluke 323 True-RMS Clamp Meter
True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
Fluke 1AC-A1-II Voltage Detector VoltAlert
The next generation VoltAlert AC non-contact voltage testers from Fluke are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Manufacturer Specs
Fluke 62 MAX+ Handheld Infrared Thermometer
| Specifications | |||||||||||||||||||||||
| Temperature Range | Fluke 62 MAX -30 °C to 500 °C (-22 °F to 932 °F) Fluke 62+ MAX -30 °C to 650 °C (-22 °F to 1202 °F) |
||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||
| Response Time (95%) | Fluke 62 MAX <500 ms (95% of reading) Fluke 62+ MAX <300 ms (95% of reading) Spectral Response 8 to 14 microns Emissivity 0.10 to 1.00 |
||||||||||||||||||||||
| Display Resolution | 0.1 °C (0.2 °F) | ||||||||||||||||||||||
| Repeatability of Readings | Fluke 62 MAX ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater Fluke 62+ MAX ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
||||||||||||||||||||||
| Power | AA battery | ||||||||||||||||||||||
| Battery Life | Fluke 62 MAX 10 hours with laser and backlight on Fluke 62+ MAX 8 hours with laser and backlight on |
||||||||||||||||||||||
| Physical Specifications |
|
||||||||||||||||||||||
| Standards and Agency Approval | Compliance EN/IEC 61010-1: 2001 Laser Safety FDA and EN 60825-1 Class II |
||||||||||||||||||||||
Fluke 323 True-RMS Clamp Meter
| Specifications | |
| AC current | |
| Range | – |
| Accuracy | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
| DC current | |
| Range | – |
| Accuracy | – |
| AC voltage | |
| Range | 600.0 V |
| Accuracy | 1.5 % ± 5 digits |
| DC voltage | |
| Range | 600.0 V |
| Accuracy | 1.0 % ± 5 digits |
| Resistance | |
| Range | 400.0 Ω / 4000 Ω |
| Accuracy | 1 % ± 5 digits |
| Continuity | = 7 Ω |
| Capacitance | – |
| Frequency | – |
| AC response | True-rms |
| Backlight | – |
| Data hold | Yes |
| Contact temperature | – |
| Min/Max | – |
| Size | |
| H x W x D (mm) | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) |
| Weight | 265 g |
| Category rating | CAT III 600 V CAT IV 300 V |
Fluke 1AC-A1-II Voltage Detector VoltAlert
| Specifications | |
| Operating principle | Senses the steady state electrostatic ?eld produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges | Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model |
| Detector tip style | Blade or round, depending on model |
| Light source | One high intensity red LED |
| Agency Approvals | c CSA us, CE, TUV, C-Tick |
| Safety Rating | 1000 V, CAT IV |
| IP Rating | IP 40 |
| Operating temperature | -10 °C to 50 °C |
| Operating humidity ranges | 0 % to 95 % (0 °C to 30 °C) 0 % to 75 % (30 °C to 40 °C) 0 % to 45 % (40 °C to 55 °C) |
| Operating Altitude | 3000 meters |
| Batteries | 2 AAA alkaline batteries included |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Voltage / Continuity and Non-Contact Testers/Non-Contact Voltage and Current Detectors Template |
|
| Style (voltage) | Pen |
| AC Volts | Yes |
| DC Volts | No |
| Voltage Display | No |
| Audible Alert | Yes |
| Visual Alert | Yes |
| Data Hold | No |
| Resistance Testing | No |
| Continuity Test | No |
| Diode Testing | No |
| CAT Rating | IV |
| CAT Voltage | 300 V, 600 V |
| Continuous Self Test | Yes |
Thermometers/IR Thermometers Template |
|
| IR Temperature Max | 650 C (1202 F) |
| IR Temperature Min | -30 C (-22 F) |
| Field View Ratio (Spot Ratio) | 12:1 |
| Accuracy | ≥0°C: ±1.5°C or ±1.5 % of reading, whichever is greater (≥32°F: ±3°F or ±1.5 % of reading, whichever is greater) ≥-10°C to <0°C: ±2°C(≥14°F to <32°F: ±4°F) < -10°C: ±3°C(<14°F: ±6°F) |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Max./Min. | Yes |
| Memory Recall | No |
| Thermocouple Input | No |
| Food Safe | No |
Test Equipment General Attributes |
|
| Unique Features | 62 MAX+ -10 foot drop test proof -Dust and water-resistant: IP54 rated for dust and water resistance. -Battery life 10 hours with laser and backlight on -Dual Lasers -Min/Max/Avg/Dif function -Hi and Lo alarm |
| IP Rating | IP54 |
| Product Height | 3.00 IN |
| Product Length | 11.50 IN |
| Product Width | 10.00 IN |
| Data Logging | No |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| Shipping Height | 3.00 IN |
| Shipping Length | 11.50 IN |
| Shipping Width | 10.00 IN |
