Descripción

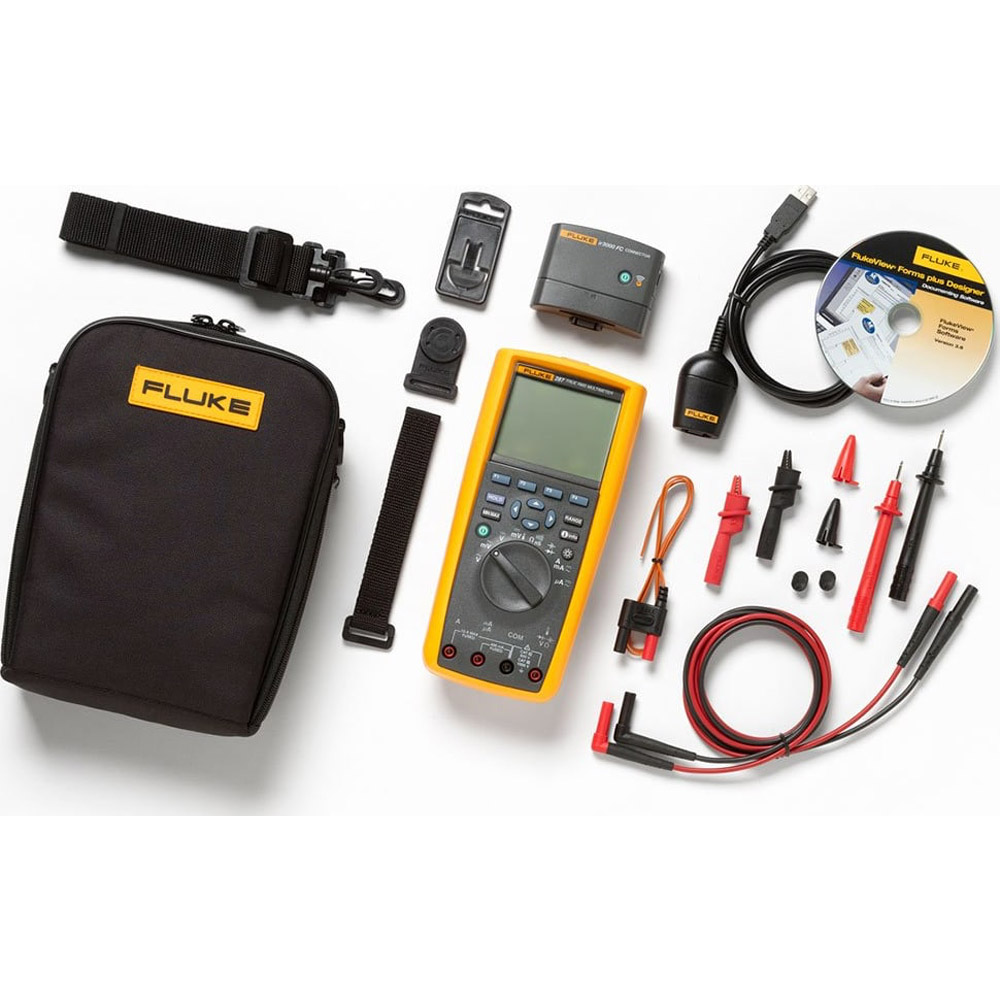

Fluke 287/FVF/IR3000 – 287 Multimeter with Software and Wireless Connectivity Kit
- True RMS AC voltage and current for accurate measurements on complex signals or non-linear loads. AC bandwidth specified to 100 kHz.
- Measure up to 10 A (20 A for 30 seconds).
- 100 mF capacitance range.
- Temperature function.
- Relative mode to remove test lead resistance from low ohms or capacitance measurements.
Now compatible with Fluke Connect™ Mobile App
Maximize productivity with the combined Fluke 287 and FlukeView® forms combo kit. Designed for today’s professionals involved in R&D, maintenance, manufacture and design of electronic circuits or systems. With built-in data logger and TrendCapture™ (the meters on screen graphical display) capability, the 287 helps you track down elusive, intermittent problems or monitor equipment with any of its functions.
FlukeView Forms enables you to document, store, and analyze individual readings or series of measurements, overlay logged data to find cause and affect relationships, or turn your data into meaningful graphs and tables for a professional report. The 287 is compatible with the new Fluke ir3000 FC Infrared Connector, allowing you to share live measurements on your iOS or Android smart device with the Fluke Connect mobile app. The 287/FVF combo kit gives you a practical and affordable approach to documenting circuit design performance.
Fluke Connect ™ IR 3000 Connector
Connect your Fluke test tool with the IR3000 connector and get all the benefits of the Fluke Connect mobile application.
Fluke Connect with ShareLive™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect™ mobile app is available for Android™ and iOS smart phones and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And there is more on the way.
If you already have one of the tools below in your tool box or tool belt you can communicate with Fluke Connect using one of these IR 3000 Connectors.
Review the information on both models below to ensure you are selecting the one that supports your existing Fluke tool. Next, download the Fluke Connect mobile app from the Apple or Google app store and get started.
Fluke Connect
See it. Save it. Share it. All the facts, right in the field.
Fluke Connect with ShareLive ™ video call is the only wireless measurement system that lets you stay in contact with your entire team without leaving the field. The Fluke Connect mobile app is available for Android ™ and iOS and works with over 20 different Fluke products—the largest suite of connected test tools in the world. And more is on the way. Go to the Fluke website to find out more.
Make the best decisions faster than ever before by viewing all temperature, mechanical, electrical and vibration measurements for each equipment asset in one place. Get started saving time and increasing your productivity.
Manufacturer Specs
| Fluke 287 Handheld Multimeter True-rms Electronics Logging Multimeter with TrendCapture Specifications | ||
| Function | ||
| DC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Basic accuracy | 0.025% | |
| AC volts | Range / resolution | 50.000 mV, 500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0 V |
| Basic accuracy | 0.4% (True-RMS) | |
| DC current | Range / resolution | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Basic accuracy | 0.05% | |
| AC current | Range / resolution | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A |
| Basic accuracy | 0.6% (True-RMS) | |
| Temperature (excluding probe) | Range / resolution | -200.0°C to 1350.0°C (-328.0°F to 2462.0°F) |
| Basic accuracy | 1.0% | |
| Resistance | Range / resolution | 500.00 O, 5.0000 kO, 50.000 kO, 500.00 kO, 5.0000 MO, 50.00 MO, 500.0 MO |
| Basic accuracy | 0.05% | |
| Capacitance | Range / resolution | 1.000 n, 10.00 nF, 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100 mF |
| Basic accuracy | 1.0% | |
| Frequency | Range / resolution | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz |
| Basic accuracy | 0.005% | |
| Connectivity | Optional infrared connector via Fluke ir3000 FC | |
| General Specifications | ||
| Maximum voltage between any terminal and earth ground |
1000 V | |
| Battery type | 6 AA alkaline batteries, NEDA 15A IECLR6 | |
| Battery life | 100 hours minimum, 200 hours in logging mode | |
| Temperature | Operating | -20°C to 55°C |
| Storage | -40°C to 60°C | |
| Relative humidity | 0 to 90% (0 to 37°C), 0 to 65% (37°C to 45°C), 0 to 45% (45°C to 55°C) | |
| Electromagnetic compatibility | EMC EN61326-1 | |
| Vibration | Random vibration per MIL-PRF-28800F Class 2 | |
| Shock | 1 meter drop per IEC/EN 61010-1 3rd Edition | |
| Size (H x W x L) | 22.2 x 10.2 x 6 cm (8.75 x 4.03 x 2.38 in) | |
| Weight | 870.9 g (28 oz) | |
| Multiple on screen displays | Yes | |
| True-RMS AC bandwidth | 100 kHz | |
| dBV/dBm | Yes | |
| DC mV resolution | 1 µV | |
| Megohm range | Up to 500 MO | |
| Conductance | 50.00 nS | |
| Continuity beeper | Yes | |
| Battery/fuse access | Yes/Yes | |
| Elapse time clock | Yes | |
| Time of day clock | Yes | |
| Min-max-avg | Yes | |
| Peak | 250 µs | |
| Duty cycle | 0.01% to 99.99% | |
| Pulse width | 0.025 ms, 0.25 ms, 2.5 ms, 1250.0 ms | |
| Hold | Yes | |
| Isolated optical interface | Yes | |
| Auto/touch hold | Yes | |
| Reading memory | Yes | |
| Log to PC | Yes | |
| Interval/event logging | Yes | |
| Logging memory | Up to 10,000 readings | |
| Wireless connectivity (optional) | Yes | |
| Model | FLUKE-IR3000FC | |
| Battery type | Two AA Alkaline batteries, NEDA 15A IEC LR6 | |
| Battery life | 6 hours of continuous transmission | |
| RF communications | 2.4 GHz ISM Band | |
| RF communication range | 20 meters | |
| Temperature | Operating: -10 °C to 50 °C Storage: -20 °C to 60 °C |
|
| Certifications | CSA, FCC, CE, IC | |
| Warranty | Three years | |
| Weight | 80 g | |
| Size (HxWxL) | 3.2 cm x 7.6 cm x 6.4 cm (1.25 in x 3.0 in x 2.5 in) | |
| Compatibility | Fluke 189, 289, 789 | |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.001 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.001 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 A (10 mA) |
| Basic Accuracy V DC | 0.025% |
| # Digit Display | 4.5 |
| Counts | 50000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Range: 1.00 % to 99.00 % Resolution: 0.01 % Accuracy: 0.2 % per kHz + 0.1 % |
Test Equipment General Attributes |
|
| Unique Features | Logging function with TrendCapture. Log data continuously for over 200 hours storing up to 10,000 readings. Low impedance
voltage function prevents false readings due to “ghost voltage.” Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives. |
| Warranty | 10 YEARS |
| Warranty Details | Limited lifetime warranty, Limited Lifetime Warranty |
| Safety Approval | CE, CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| Storage | Hard Drive |
| Product Weight | 1.92 LBS |
| Product Height | 2.38 IN |
| Product Length | 8.75 IN |
| Product Width | 4.03 IN |
| Shipping Weight | 2 LBS |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 7.87 IN |
| UPC | 095969417853 |
| Shipping Length | 16.14 IN |
| Shipping Width | 11.02 IN |
