Triplett CM200
- 200A AC True RMS Open Jaw Clamp
- Open jaw design fits into tight spaces where a standard clamp can’t close
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- 0.6″ (16mm) clamp jaw
- Built-in Non-Contact Voltage Detector with LED

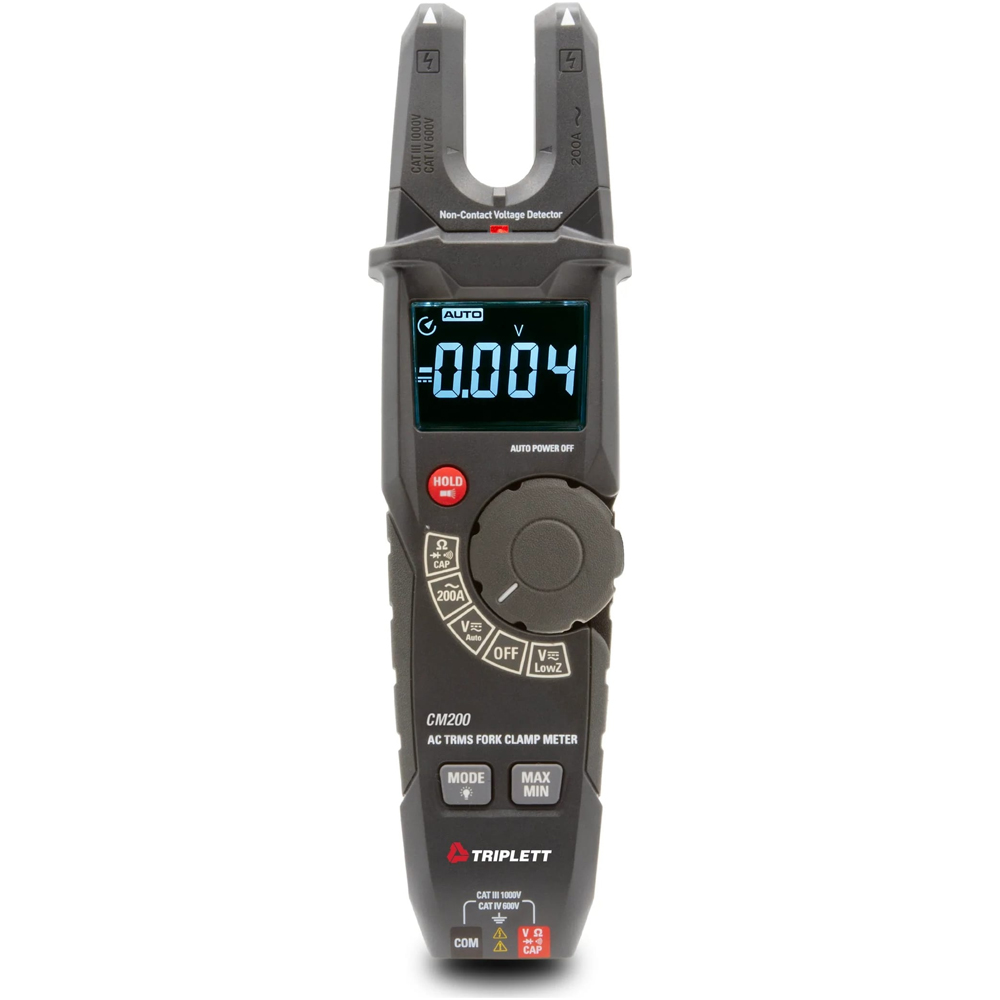

200A True RMS Open Jaw Clamp Meter
The Triplett Model CM200 True RMS Open Jaw Clamp Meter can measure AC current up to 200A without breaking the circuit and fits into tight spaces where a standard clamp meter jaw is unable to close. This saves time and the circuit will not be damaged. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Additional measurements include Resistance, Capacitance, Diode Test, and Continuity. Measurements can read on the 6000 count, reverse polarity LCD. Features include: a built-n NCV Detector with LED, LoZ (impedance) mode for identifying ghost voltages, Min/Max for recording the highest and lowest readings, Auto power off with disable, and a built-in flashlight. Data Hold freezes the display for easy viewing. CAT IV-600V safety category. 1-year warranty.
Manufacturer Specs
| Display counts | 6000 count |
| AC Current | 200A |
| ACA Accuracy | ±3% |
| AC Voltage | 1000V |
| Resistance | 60MΩ |
| Capacitance | 4mF |
| Continuity | <50Ω |
| LoZ (Low Impedance) | Yes |
| NCV Detector | Yes |
| Safety Category | CAT IV-600V |
| Dimensions / Weight | 9.1 x 2.5 x 1.7″ (230 x 64 x 43.3mm) / 7.8oz (220.6g) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 200 A |
| Maximum Voltage AC | 1000 V |
| Capacitance | Yes |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Safety Approval | CE, ETL, RoHS |
| Product Weight | 0.5 LBS |
| Product Height | 1.7 IN |
| Product Length | 9.1 IN |
| Product Width | 2.5 IN |
| Shipping Weight | 1 LBS |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
