Descripción

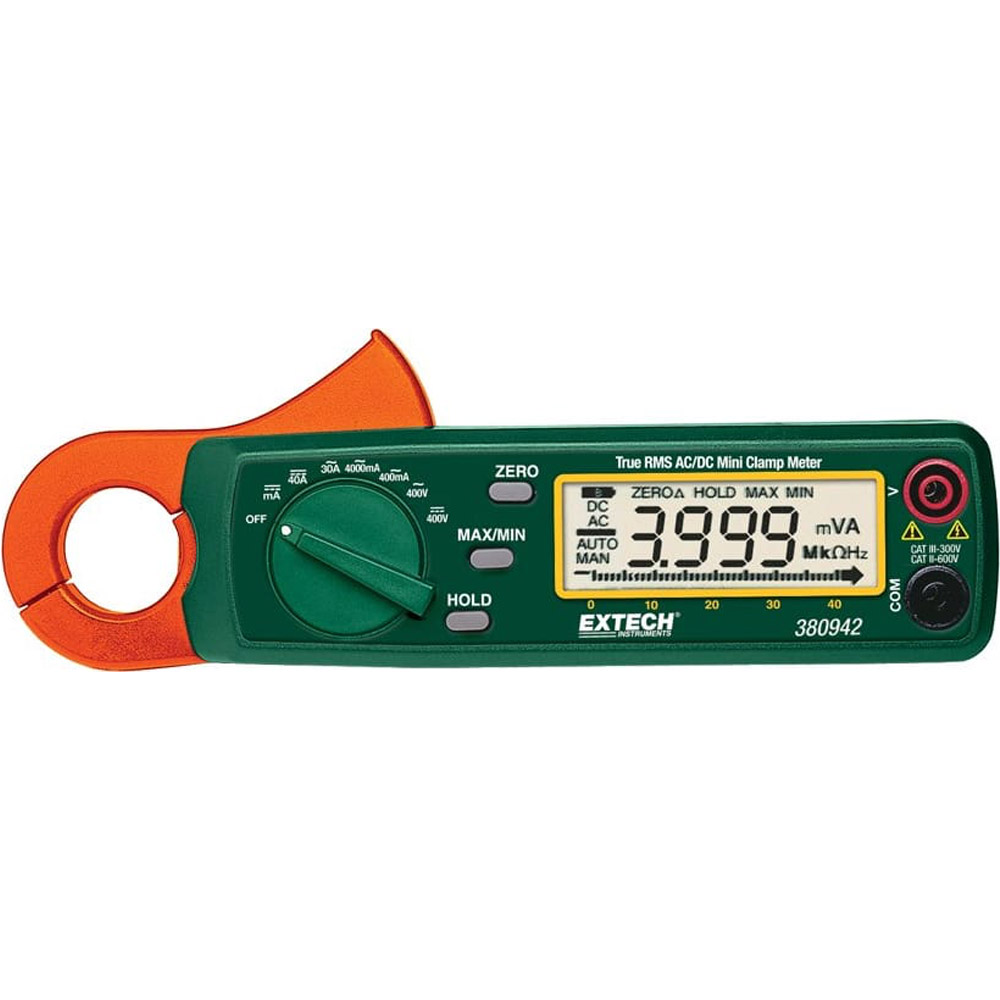

Extech 380942-NIST
- True RMS: True RMS
- Display counts: 4000 count LCD
- Jaw size/Cable size: 0.9″ (23mm); 4/0 AWG
- AC Current: 400mA, 4A, 30A
- DC Current: 4A, 40A
- Max Resolution: AC: 0.1mA, DC: 0.001A
- Basic ACA Accuracy (% rdg): ±1.5%
True RMS AC/DC Mini Clamp Meter w/NIST
Highest resolution (0.1mA) and accuracy at low currents
The compact Extech 380942 is a 30 Amp mini AC/DC clamp meter. The clamp meter has a remarkable 0.1mA resolution (AC), very low-current sensitivity, and a small diameter jaw designed to reach into small areas. The 30 Amp range with 0.1mA (AC) and 1mA (DC) resolution is optimized for finding problems where very low current variances would be missed by standard clamp meters. This mini clamp meter is useful for troubleshooting tasks in plant maintenance, electrical, HVAC, and telecom work, as well as residential electrical, fleet maintenance, marine, and motorcycle repairs. This CAT III-rated True RMS mini clamp meter comes with test leads, 2 AAA batteries, soft carrying case, and user manual.
Manufacturer Specs
| General Specifications | |
| Display | 3-3/4 (4000 count) Digit LCD with 40 segment bargraph |
| Functions | ACA, DCA, ACV, DCV |
| Polarity | Minus sign ( – ) indicates negative polarity |
| Current sensor | Hall effect sensor type |
| Overload indication | Left blinking digit |
| DCA zero adjust | One touch zero key |
| Display rate | 2 readings/second (20 readings/second for bargraph) |
| Battery | Two 1.5V AA batteries |
| Operating conditions | 4°F to 122°F (-10°C to 50°C), < 85% Relative Humidity |
| Storage conditions | – 4°F to 140°F (-20°C to 60°C); < 75% Relative Humidity |
| Altitude | Operate at less than 2000 meters. Indoor use only. |
| Power consumption | Approximately 10mA DC |
| Weight | 6.2 oz. (190g) including battery |
| Dimensions | 7.2 x 2.5 x 1.4” (183 x 63.6 x 35.6mm) (HWD) |
| Jaw opening | 0.9” (23mm) |
| Standards | IEC 1010 Category III 300V, Category II 600V |
| AC Voltage and Current Crest Factor | < 3 |
| AC / DC Voltage Input Impedance | 10M Ω |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 30 A |
| Maximum Current DC | 30 A |
| Maximum Voltage AC | 400 V |
| Maximum Voltage DC | 400 V |
| Maximum Conductor Size | 0.9 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Provide High Accuracy and Resolution, One Touch Auto Zero for DCA Measurements, Data Hold Display |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Additional Info/Comments | Optional 3-prong AC Line Separator Enables Safe and Easy Measurements on Power Cables with Molded Plugs |
| Safety Approval | CE, UL |
| Product Weight | 8 OUNCES (0.5 LBS) |
| Product Height | 1.3 IN |
| Product Length | 7 IN |
| Product Width | 1.8 IN |
| Data Logging | No |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
