Descripción
Extech 380947-NIST
- True RMS: True RMS
- Display counts: 4000 count LCD
- Jaw size/Cable size: 0.9″ (23mm); 4/0 AWG
- AC Current: 4A, 40A, 100A, 400A
- DC Current: 40A, 400A
- Max Resolution: AC: 0.001A, DC: 0.01A
- Basic ACA Accuracy (% rdg): AC: ±1.5%, DC: ±1.0%
- Frequency (Max Res.): 10kHz (0.01Hz)

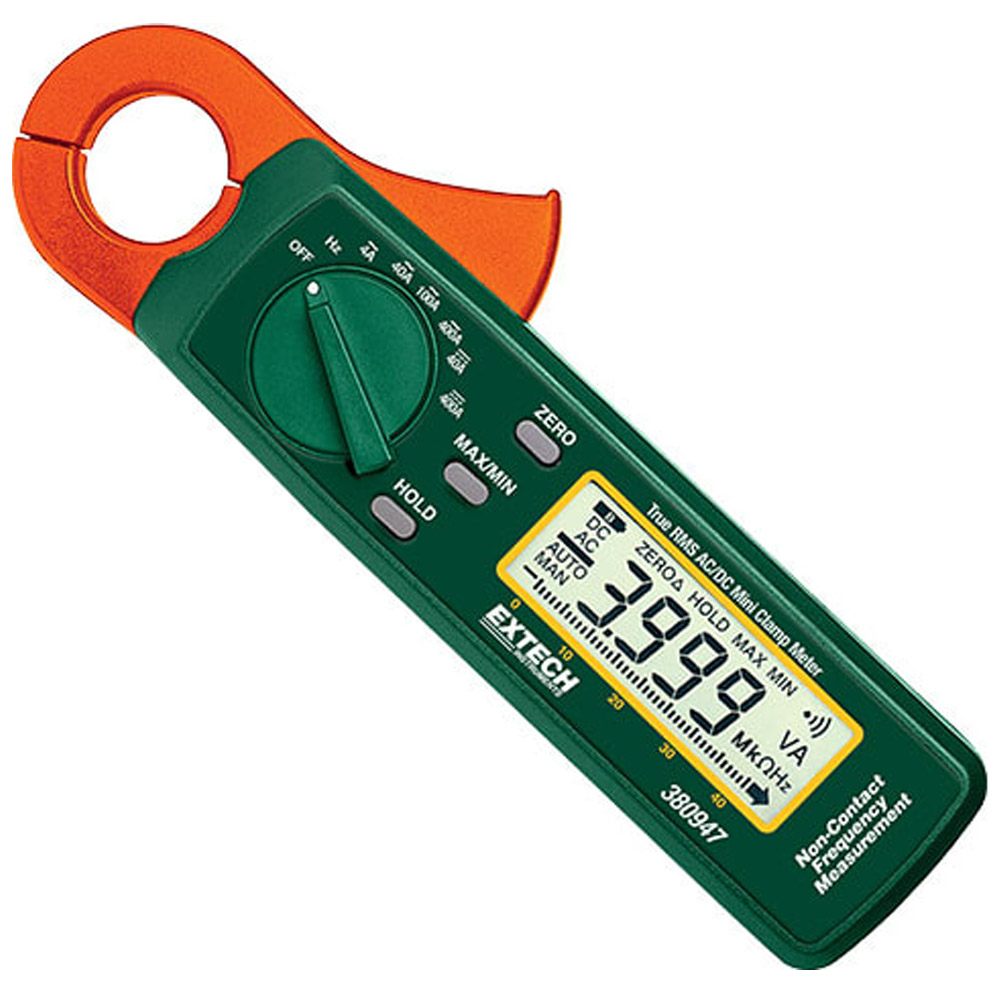

400A True RMS AC/DC Mini Clamp Meter w/NIST
True RMS mini-clamp with high current resolution
The compact Extech 380947 is a 400 Amp True RMS mini clamp meter. This meter has a small diameter jaw designed to reach in small areas while providing 1mA resolution and very low-current sensitivity. This mini clamp meter is useful for current and frequency related troubleshooting in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs. Comes with battery and manual.
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Conductor Size | 0.9 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Provide High Accuracy and Resolution, One Touch Auto Zero for DCA Measurements, Data Hold Display |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Additional Info/Comments | Optional 3-prong AC Line Separator Enables Safe and Easy Measurements on Power Cables with Molded Plugs |
| Safety Approval | CE, UL |
| Product Weight | 8 OUNCES (0.5 LBS) |
| Product Height | 1.3 IN |
| Product Length | 7 IN |
| Product Width | 1.8 IN |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
