A complete automotive diagnostic package with everything you need in an automotive multimeter.
The new Fluke 88V has improved measurement functions, troubleshooting features and accuracy to solve more problems on conventional and hybrid vehicles. The 88V is made in the U.S.A. and carries the industry leading lifetime warranty.
The Fluke 88V operates very similar to the classic Fluke 88, but with more problem solving power, safety, convenience and impact protection.
The new 88V is independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V/CAT III 1000V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
Position the meter in the most usable location with the magnetic hanger.
The holster on the new Fluke 88V accepts a small but extremely powerful magnet (Fluke Tpak) that holds the meter firmly to most steel surfaces. This allows you to focus on taking measurements instead of holding the meter in your hand.
Electrical safety.
All inputs are protected to Category III, 1000 V and Category IV 600 V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges.
Manufacturer Specs
| DC Voltage | Maximum Voltage | 1000V |
| Accuracy | ±(0.1%+1) | |
| Best Resolution | 0.01 mV | |
| AC Voltage | Maximum Voltage | 1000V |
| Accuracy | ±(0.5%+2) | |
| AC Bandwidth | 5kHz | |
| Best Resolution | 0.01 mV | |
| DC Current | Maximum Amps | 10A |
| Amps Accuracy | ±(0.4%+2) | |
| Best Resolution | 0.001 mA | |
| AC Current | Maximum Amps | 10A |
| Amps Accuracy | ±(1.2%+2) | |
| Best Resolution | 0.001 mA | |
| Resistance | Maximum Resistance | 50 MΩ |
| Accuracy | ±(0.4%+1) | |
| Best Resolution | 0.1Ω | |
| Capacitance | Maximum Capacitance | 9,999 µF |
| Accuracy | ±(1%+2) | |
| Best Resolution | 0.01 nF | |
| Frequency | Maximum Frequency | 200 KHz |
| Accuracy | ±(0.005%+1) | |
| Best Resolution | 0.01 Hz | |
| Duty Cycle | Maximum Duty Cycle | 99.9 % |
| Accuracy | within 2% per KHz +0.1% | |
| Best Resolution | 0.1 % | |
| Temperature Measurement | -200.0°C – 1090°C -328.0°F – 1994.0°F, 1.0% excluding probe |
|
| 80 BK Temperature Probe | -40 °C – 260 °C -40 °F – 500 °F, 2.2 °C or 2% whichever is greater |
|
| Conductance | Maximum Conductance | 60.00 nS |
| Accuracy | ±(1.0%+10) | |
| Maximum Resolution | 0.01 nS | |
| Operating Range | Operating Temperature | -20 °C – 55 °C |
| Storage Temperature | -40 °C – 60 °C | |
| Physical | 5.2 cm x 9.8cm x 20.1 cm (2.06” x 3.86” x 7.93”) 624 g (22 oz.) |
|

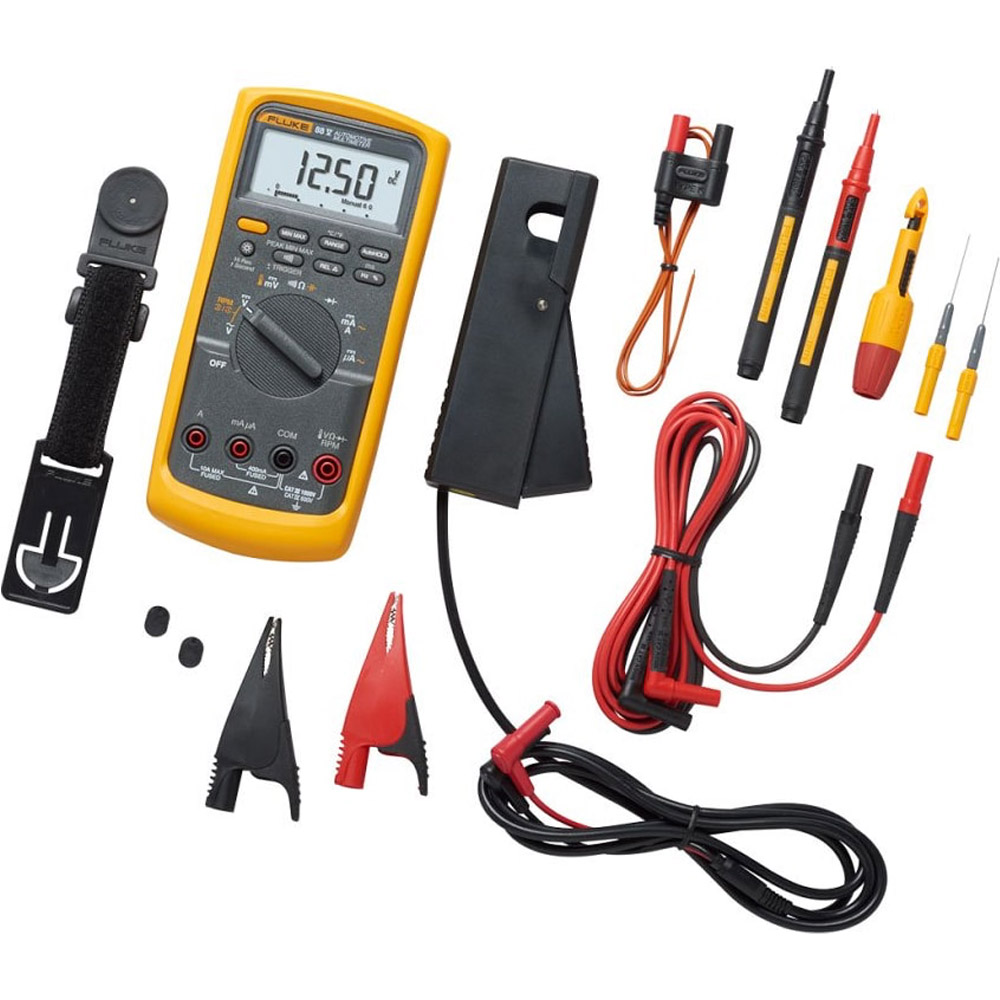

| Included Accessories | 88V, TL224 silicone test leads, AC285 long reach alligator clips, TP220 test probes, RPM 80 inductive RPM pick-up, magnet and strap, 80BK temperature probe, two automotive backprobe pins, insulation piercing probe, C800 durable carrying case, holster, 9V battery (installed), Getting Started Manual, and CD with detailed manual. | |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 60.00 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 60.00 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ± (0.1%+1) |
| # Digit Display | 4.5 |
| Counts | 19999 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Maximum duty cycle 99.9 %
Accuracy within 2% per KHz +0.1% Best resolution 0.1 % |
Test Equipment General Attributes |
|
| Unique Features | •0.1 % dc accuracy
•Current measurements up to 10 A, 20 A for up to 30 seconds •Millisecond pulse width measurements for fuel injectors •Optional magnetic hanger allows meter to attach to the vehicle and free your hands for other tasks •Min/Max/Average recording with Min/Max Alert to capture variations automatically •Peak Min/Max to record transients as fast as 250 μs •Relative mode to remove test lead resistance from low ohms measurements •Auto and manual ranging for maximum flexibility •Autohold™ to capture stable readings with only one touch of the leads |
| Additional Info/Comments | •Large display digits and two-level bright white backlight for increased visibility
•Analog bargraph to track changing or unstable signals •Input Alert provides audible warning against wrong use of input jacks •Access door for fast battery changes without opening up the case •»Classic» design that fits your hand with new removable holster, built-in test lead and probe storage •10 meg ohm input impedance won’t damage computer circuits •Limited lifetime warranty |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| Product Weight | 0.78 LBS |
| Product Height | 1.25 IN |
| Product Length | 7.35 IN |
| Product Width | 3.41 IN |
| Shipping Weight | 2 LBS |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 7.99 IN |
| UPC | 095969328906 |
| Shipping Length | 14.02 IN |
| Shipping Width | 9.02 IN |
