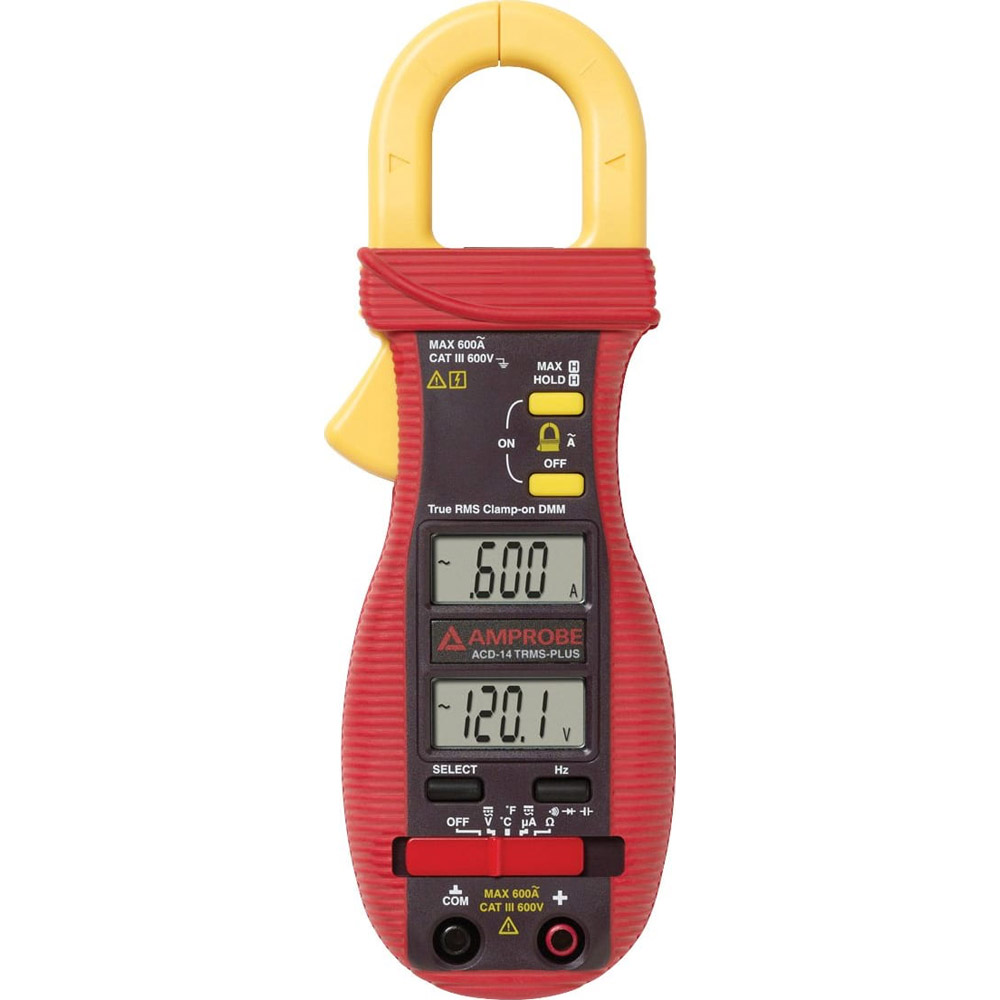

Amprobe ACD-14 TRMS-PLUS
- True RMS for precise measurement results
- Dual Displays – Permits simultaneous reading of Amperage & Voltage
- AC and DC Voltage to 600V
- AC Current to 600A
- Resistance to 40MW
- Capacitance to 3000 µF
- Frequency measurement
600A Clamp-On Multimeter with Dual Display
The Amprobe ACD-14 TRMS-PLUS Digital Clamp Multimeter is the perfect choice for HVAC and electrical applications due to its versatile set of features which includes microamps, temperature with thermocouple, capacitance, frequency, and true-RMS accuracy. This digital clamp multimeter provides added functionality with a dual-display for views of amperage and voltage simultaneously.
Other Features
- Diode test
- Hold and Maximum reading functions
- Inrush current
- Accommodates conductors up to 28 mm ( 1.1”) in diameter
- Auto-ranging
Manufacturer Specs
| Display | 3-3/4 digits 4000 counts, dual LCD displays |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Low Battery Indication | Below approx. 2.4V |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | Maximum relative humidity 80% for temperatures up to 31°C (88°F) decreasing linearly to 50% relative humidity at 40°C (104°F) |
| Altitude | Indoor operation below 2000m (6,562 ft) |
| Storage Temperature | -20°C to 60°C (-4°F to 140°F), < 80% R.H. (with battery removed) |
| Temperature Coefficient | Nominal 0.15 x (specified accuracy)/°F @ 0°C – 18°C or 28°C – 40°C (32°F -64°F or 82°F – 104°F), or otherwise specified |
| Sensing | Average sensing for ACD-14 PLUS |
| Power Supply | Two 3V alkaline button batteries (ANSI/NEDA-5004LC, IEC-CR2032). |
| Battery Life | 95 hours approx. (in DCV mode) |
| Power Consumption | 2.5 mA typical for ACD-14 PLUS |
| Low Battery Indication | Below approx. 2.4V (battery symbol appears in upper right) |
| Auto Power Off | After being idle for 30 minutes |
| APO Consumption | ACD-14 PLUS: 0.8µA typical except 25µA typical for temperature function |
| Safety | CE EN61010-1, EN61010-2-032 – Pollution Degree 2 |
| Transient Protection | 6.5kV (1.2/50µs surge) for all models |
| E.M.C. | Meets EN61326 |
| Overload Protections | ACA Clamp-on jaws: AC 600A RMS continuous “+” & “COM” terminals (all functions): 600VDC/VAC |
| RMS | &nbsb: |
| Dimension | L190mm X W 63mm X H 32mm (L 7.48” X W 2.48” X H 1.25”) |
| Weight | 204 g (0.450 lb approx.) |
| Jaw opening & Conductor diameter | 28 (1.1”) max |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.1 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | 5mm Thinner Jaws, Hold and Maximum Reading Functions, Microamps Measurement for Testing Flame Sensors, Rubber Over Molded Case |
| Additional Info/Comments | Line Splitter, 3000A AC Flexible Clamp-On Attachment, Temperature Adapter, Heavy Duty Test Leads with Threaded Alligator Clips |
| Product Weight | 0.45 LBS |
| Product Height | 1.25 IN |
| Product Length | 7.48 IN |
| Product Width | 2.48 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030390100 |
| ECCN Number | 3A992 |
| Battery Type | CR2032 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.00 IN |
| Shipping Length | 10.25 IN |
| Shipping Width | 7.25 IN |
