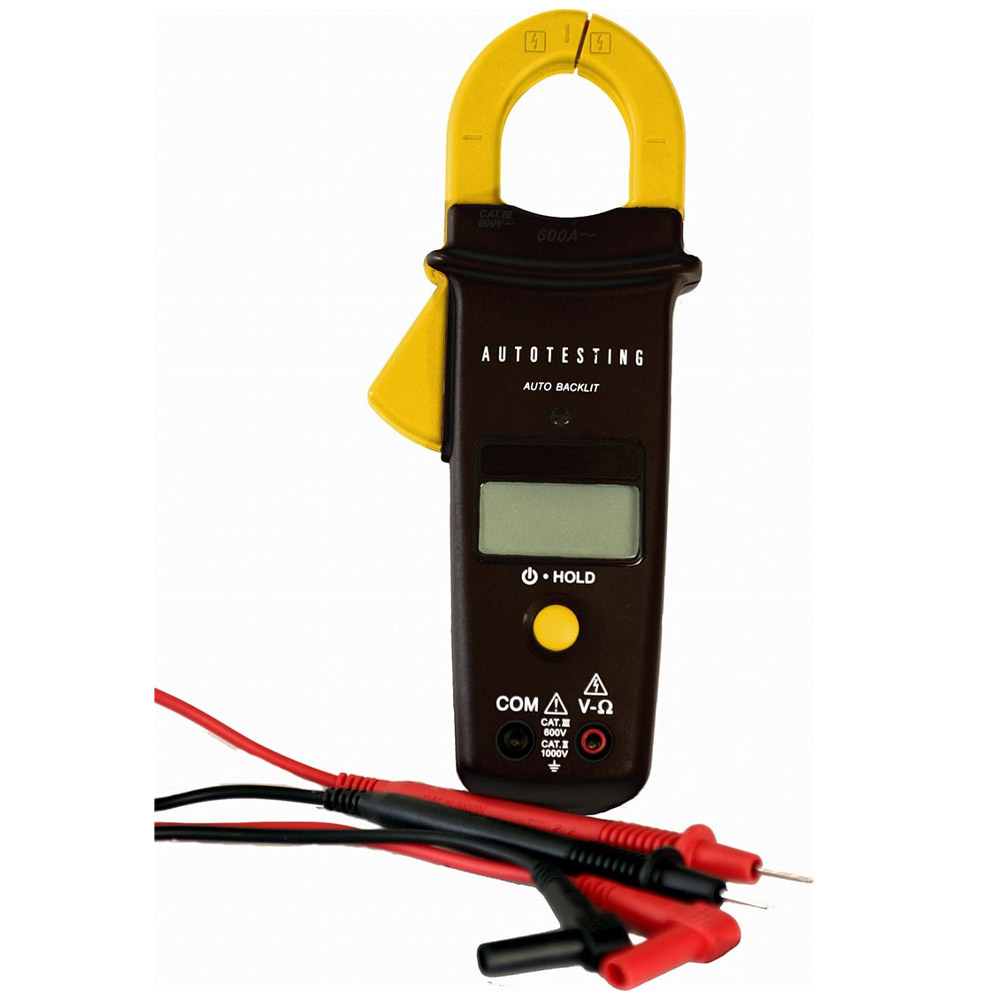

Armada Pro90 Automatic Clamp Multimeter
The Pro90 Automatic Clamp Multimeter is simple to use with easy-to-read controls — perfect for experts and novices alike. With the Pro90, simplicity starts with a single button: the on/off switch. It is the only switch on the Pro90 and the only switch that you need. After one push of the button to turn it on, the Pro90 takes care of itself. The Pro90 automatically measures voltage, resistance and amperage as wellas turns itself off when it’s not in use. It even automatically backlights when you’re working in the dark, the screen automatically lights. Troubleshooting has never been so easy.
Manufacturer Specs
| General Specifications | |
| Power Requirements | 9V Alkaline(included) |
| Amperage Measurement | 0.6 – 400.0A AC |
| Voltage Measurement | AC Volts:0.3 – 600.0V DC Volts:1.8 – 600.0V |
| Resistance | 2000Ω with continuity beeper |
| Measurement Category | Cat III, 600V per UL 3111-1 |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 1000 V |
| Resistance | Yes |
Test Equipment General Attributes |
|
| Unique Features | Test for voltage from 1.3 to 600 volts AC or to 1,000 volts DC |
| Safety Approval | CE, UL |
| Country of Origin | United States |
