Descripción

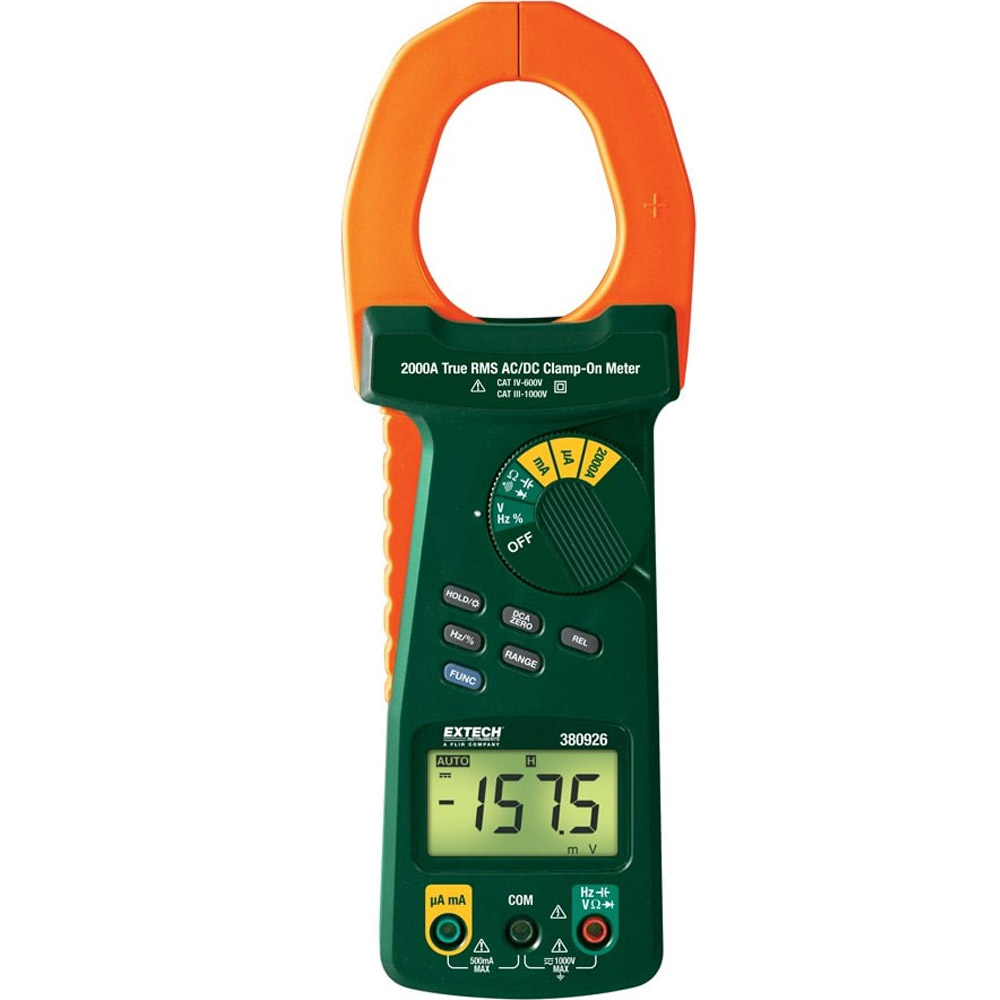

Extech 380926
- True RMS: Yes
- Display counts: 5000 count LCD (backlit)
- Jaw size/Cable size: 2″ (50mm); 750MCM
- AC Current: 400.0A, 2000A (Clamp); 400µA (DMM)
- DC Current: 400.0A, 2000A (Clamp); 400µA (DMM)
- Max resolution: 0.1A (Clamp); 0.1µA (DMM)
- Basic ACA Accuracy: (% rdg) ±2%
2000A True RMS AC/DC Clamp Meter
Full range MultiMeter functions with high resolution to 0.1µA/0.1mV
The 380926 is a category IV, 2000-Amp, TRMS AC/DC Clamp Meter which has a rugged 2 in. jaw that accommodates two 500MCM cables. A built-in full-function DMM can measure AC/DC Voltage and Current, Resistance, capacitance, frequency, Duty Cycle, Diode and Continuity. Measurements are displayed on the large 4000 count backlit display for easy viewing in dimly lit areas. Additional features include DCA push button zero, Data Hold, and Relative function. Complete with test leads and 9V battery.
Manufacturer Specs
| Specifications | Ranges | Max. Resolution | Basic Accuracy (%rdg+digits) | |
| DC/AC Current (Clamp) | 400A, 2000A | 0.1A | ±(2% + 5d) | |
| DC/AC Current (DMM) | 400µA, 4000µA, 40mA, 400mA | 0.1µA | ±(1.2% + 5d) | |
| DC Voltage | 400mV, 4.0V, 40V, 400V, 1000V | 0.1mV | ±(1% + 2d) | |
| AC Voltage | 4V, 40V, 400V, 1000V | 1mV | ±(1.2% + 5d) | |
| Capacitance | 50nF, 500nF, 5.0µF, 50µF | 10pF | ±(3% + 5d) | |
| Resistance | 400Ω, 4.0kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ | 0.1Ω | ±(1% + 5d) | |
| Frequency | 5Hz, 50Hz, 500Hz, 5kHz, 50kHz, 100kHz | 0.01Hz | ±(1% + 5d) | |
| Duty Cycle | 1% to 99% | 0.1% | ±(1% + 5d) | |
| Diode Check | yes | |||
| Continuity | yes | |||
| Dimensions/Weight | 10 x 2.9 x 1.5″ (255x73x38mm) / 14oz. (380g) | |||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 2000 A |
| Maximum Current DC | 2000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 2 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Heavy Duty ABS Case with Built-in Stand and Thumb Control Function Switch |
| Warranty | 2 YEARS |
| Warranty Details | Limited Two Years Warranty |
| Additional Info/Comments | Full Range Multimeter Functions |
| Safety Approval | CE |
| Product Weight | 14 OUNCES (0.875 LBS) |
| Product Height | 1.5 IN |
| Product Length | 10 IN |
| Product Width | 2.9 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 2.90 IN |
| Shipping Length | 10.60 IN |
| Shipping Width | 6.20 IN |
