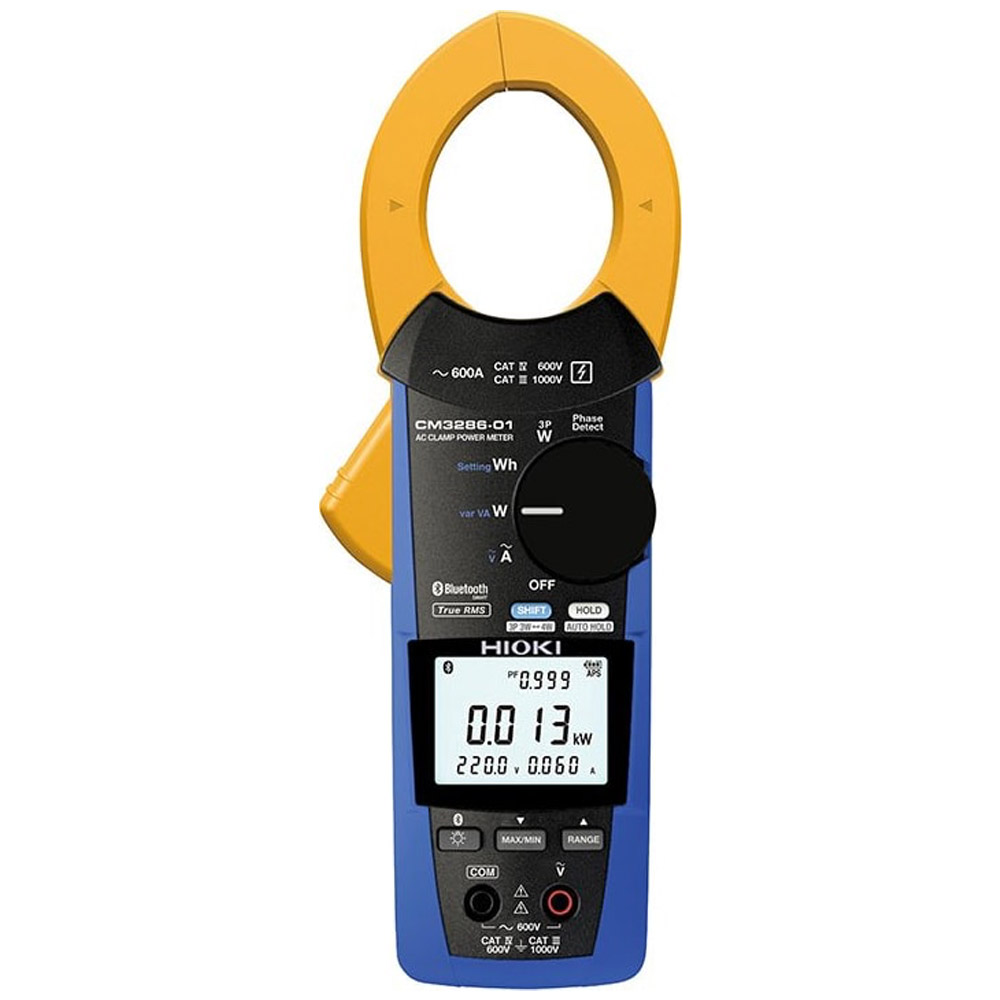

Hioki CM3286-01 – 600A Clamp On Power Tester w/ Bluetooth
- Damage-resistant jaws
- Rotary switch that can be turned with a single hand
- Dustproof and waterproof: IP54
- White backlight Wide viewing angle display
- Measure power ranging from 5 W at a low current of 60 mA to 360 kW
Broad measurement range 60 mA (5 W) to 600 A (360 kW) Broad measurement range
- Accurately measure power from 5 W at a current as low as 60 mA to 360 kW at a maximum of 600 A (single-phase power measurement).
- In addition to current, voltage, and power, measure simple integral power consumption and phase sequence.
- Obtain accurate readings with true RMS measurement.
Measurement line
Measure power in single-phase to balanced three-phase circuits (with estimated values) (1-phase/ 2-wire, 1-phase/ 3-wire, balanced 3-phase/ 3-wire, and balanced 3-phase/ 4-wire). *The instrument generates estimated power values when measuring 3-phase circuits.
Easily check power supply fluctuations
Since it can display maximum (MAX), minimum (MIN), and average (AVG) values, the CM3286 is useful when you need to ascertain the magnitude of fluctuations. And since it can also measure crest (PEAK) values, you can use it to check fluctuations at the crest value level.
Support for large-diameter, high-current measurement
The CM3286 can be used with the optional Clamp On Adapter 9290-10 to measure busbars of up to 55 mm in diameter or 80 × 20 mm. Measure high currents of up to 1000 A AC (or 1500 A for up to 5 min.).
Quickly check for unbalance
The CM3286 can measure unbalanced power in a 3-phase/ 3-wire circuit by measuring the single-phase power twice and then automatically adding the results. (The instrument can also measure 3-phase/4-wire circuits in three separate measurements.)
Choose from an extensive selection of probe tips
Select the type of probe that best suits your measurement location, letting you measure in areas that can’t be reached with conventional probes and busbars that you wish to clamp between probes. *Probe tips: Sold separately
Functionality and performance that enable a broad range of measurements
White backlight
A white backlight makes the measured values stand out, even in dim locations. Owing to wide viewing angle display, high quality screen lets you read measurements from any angle.
Easily operate with one hand
Turn the rotary switch while holding the instrument in the same hand. Grooves on the switch make it easy to rotate even while wearing work gloves.
CAT IV 600 V
The CM3286 can safely measure service wires with a wire- to-ground voltage of up to 600 V as well as wires found in distribution panels. The clamp meters also feature a safe design that can withstand a transient overvoltage of 8 kV in case of a lightning strike.
-25°C to + 65°C
The CM3286 can be used in freezing temperatures or on the hottest summer days
Quick and easy data recording Hold measured values to send them to a smartphone (CM3286-01 only)
When you freeze the measured value, it is automatically transferred to a smartphone or tablet, eliminating the need to jot down readings by hand. You can also create a simple PDF report right there in the field, and save data in CSV format for later editing in Excel.
Manufacturer Specs
| General Specifications | |
| Measurement line | Single-phase, Three-phase (should be balanced and no distortion) |
| Measurement items | Voltage, Current, Voltage/ current peak, Active/ reactive/ apparent power, Power factor, Phase angle *1, Reactivity, Frequency, Simple Active Energy Consumption (Single-phase) [CM3286-01 only*2] Voltage/ current harmonic levels |
| AC voltage | [Measurement range] 80.0 V to 600.0 V, Single range, Basic accuracy 45 – 66 Hz: ±0.7% rdg. ±3dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| AC current | [Measurement range] 0.060 A to 600.0 A, 3 range, Basic accuracy: ±1.3% rdg. ±3dgt. (Frequency characteristics: 45 to 1 kHz, True RMS) |
| Power | [Single phase] 0.005 kW to 360.0 kW Basic accuracy: ±2.0% rdg. ±7dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 3-wire] 0.020 kW to 623.5 kW Basic accuracy: ±3.0% rdg. ±10dgt. (50/ 60 Hz, Power factor=1) [Balanced three-phase 4-wire] 0.040 kW to 1080 kW Basic accuracy: ±2.0% rdg. ±3dgt. (50/ 60 Hz, Power factor=1) |
| Harmonic levels (CM3286-01only *2) | Voltage/ current harmonic levels up to 30th, Content factor, Total harmonic distortion ratio |
| Other functions | [Phase angle *1] lead -180.0° to lag 179.9°, [Power factor] -1.000 to 1.000 [Frequency] 45.0 Hz to 999.9 Hz, PEAK, Phase detection, Max/ Min value display, Auto hold, electric meter comparison, unbalanced 3-phase power estimate display, etc. |
| Maximum rated voltage to earth | 600 V AC (Measurement category IV) 1000 V AC (Measurement category III) |
| Crest factor | 6 A/ 60 A range 3 or less, 600 A/ 600 V range 1.6 or less |
| Operating and storage temperature and humidity ranges | -25°C to 65°C or less (-13.0°F to 149.0°F) 80% RH or less (no condensation,less than 40°C) |
| Dustproof and waterproof | Grip: IP54 (EN60529), Jaw: IP50 (EN60529) |
| Standards | Safety: EN61010, EMC: EN61326 |
| Power supply | LR03 Alkaline battery ×2 |
| Continuous use | Approx. 25 hours (Backlight OFF) |
| Core jaw diameter | φ 46 mm (1.81 in) |
| Dimensions and Mass | 82 mm (3.23in) W × 241 mm (9.49in) H × 37 mm (1.46in) D, 450 g (15.9 oz) |
| *1) Phase angle obtained from zero cross of current / voltage. *2) Harmonic levels can be displayed by dedicated application software(Gennect Cross). Update scheduled for fall 2017 |
|
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Voltage AC | 600 V |
| Maximum Conductor Size | 1.8 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Bluetooth Communication via Gennect Cross application |
| IP Rating | IP50, IP54 |
| Product Weight | 16 OUNCES (1 LBS) |
| Product Height | 1.5 IN |
| Product Length | 9.5 IN |
| Product Width | 3.2 IN |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
