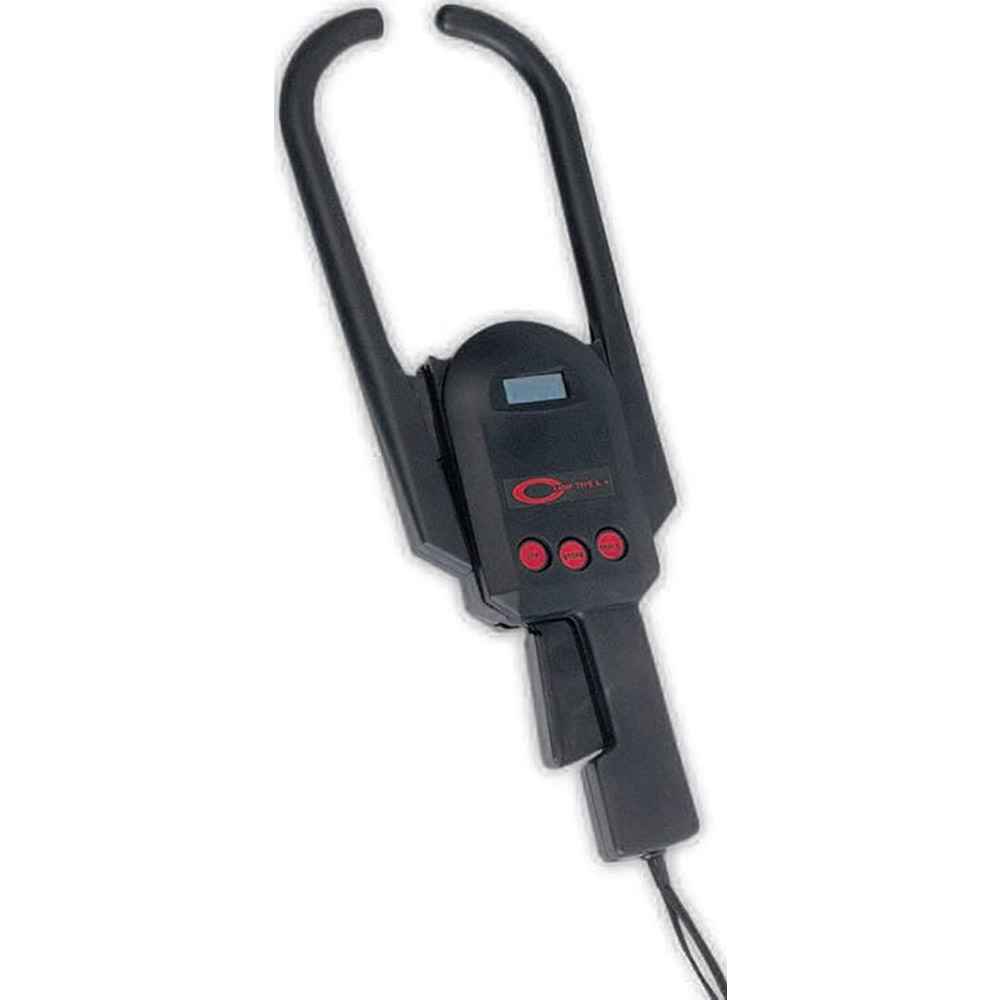

Seaward 275A910 Type L Plus Large Jaw Clamp Meter
- Type L Plus large jaw clamp meter
- 100mm x 140mm internal Jaw dimensions
- 0 o C – +40 o C operating temperature range
- 3.5″ digit LCD display with12.0mm high characters
- 0 – 2000 amps measurement range
- 50 – 600 volts AC 50 HZ voltage range
Type L Plus
The lightweight Type L Plus large jaw current clamp meter is designed for the measurement of current in large diameter conductors and fuses. Its 100mm jaw opening allows for use in most difficult situations, and is suitable for porcelain fuse carriers in distribution systems.
High levels of insulation are incorporated for maximum safety and protection, together with the facility to provide complete linearity of measurement between 0 and 2000A featuring 3.5” LCD, and controlled using two main operating buttons. A TRACK facility provides a continuous readout and STORE facility monitors peak levels – ideally suited for monitoring maximum demand in electrical distribution networks.
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| Maximum Voltage AC | 600 V |
Test Equipment General Attributes |
|
| Country of Origin | United Kingdom |
