Descripción
TPI 293
- True RMS: Provides accurate and dependable readings of non-linear loads.
- Bar Graph: When measuring frequency, bar graph indicates current level.
- TRIM Mode: Smooths out unstable readings.
- Peak Mode: For start-up and inrush currents.
- Sleep Mode: Preserves battery life.

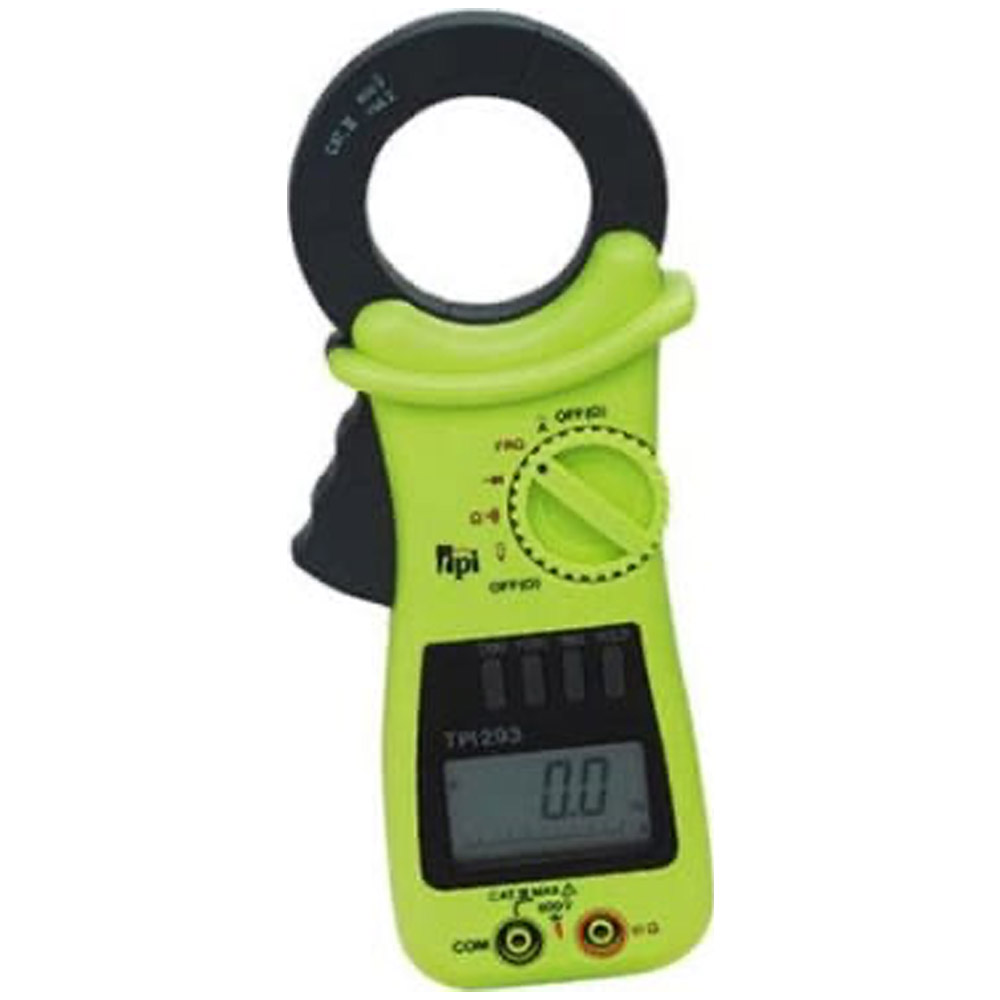

Digital Clamp Meter Amp Plus
The 293 is a digital clamp meter plus DMM with True RMS capabilities. The 293 offers measurements in all basic electrical functions, plus,
True RMS: Provides accurate and dependable readings of non-linear loads.
Bar Graph: When measuring frequency, bar graph indicates current level.
TRIM Mode: Smooths out unstable readings.
Peak Mode: For start-up and inrush currents.
Sleep Mode: Preserves battery life.
Data Hold: Holds the reading on the display for easy viewing.
Manufacturer Specs
| Model: 293 Specifications | |
| Range Selection | Auto/Manual |
| Display Specifications | 4,000 Count Analog Bar Graph |
| Basic Features | AC Volts DC Volts AC Amps Resistance Diode Test Audible Continuity |
| Basic DC Accuracy | 0.75% |
| DC Voltage (maximum) | 750V |
| Resolution (maximum) | 0.01V |
| AC Voltage (maximum) | 750V |
| Resolution (maximum) | 0.01V |
| Resolution (maximum): | 0.01A |
| AC Amps (maximum) | 700A |
| Resolution (maximum): | 0.01A |
| Resistance (maximum) | 40KΩ |
| Resolution (maximum): | 0.1Ω |
| Frequency (maximum) | 10KHz |
| Resolution (maximum): | 0.1Hz |
| Agency Approval: | CEIEC 1010: CATIII; 600V cULus 61010 |
| Overall Dimensions: | 40mm x 190mm x 65mm (1.5in x 7.25in x 2.5in) |
| Weight: | 315g (11.1oz) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 700 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.875 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Both |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | true RMS, trim mode averages readings for a more stable measurement |
| Warranty | 3 YEARS |
| Safety Approval | CE, UL |
| Product Weight | 11.1 OUNCES (0.694 LBS) |
| Product Height | 1.5 IN |
| Product Length | 7.25 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Korea |
| UPC | 637623002939 |
