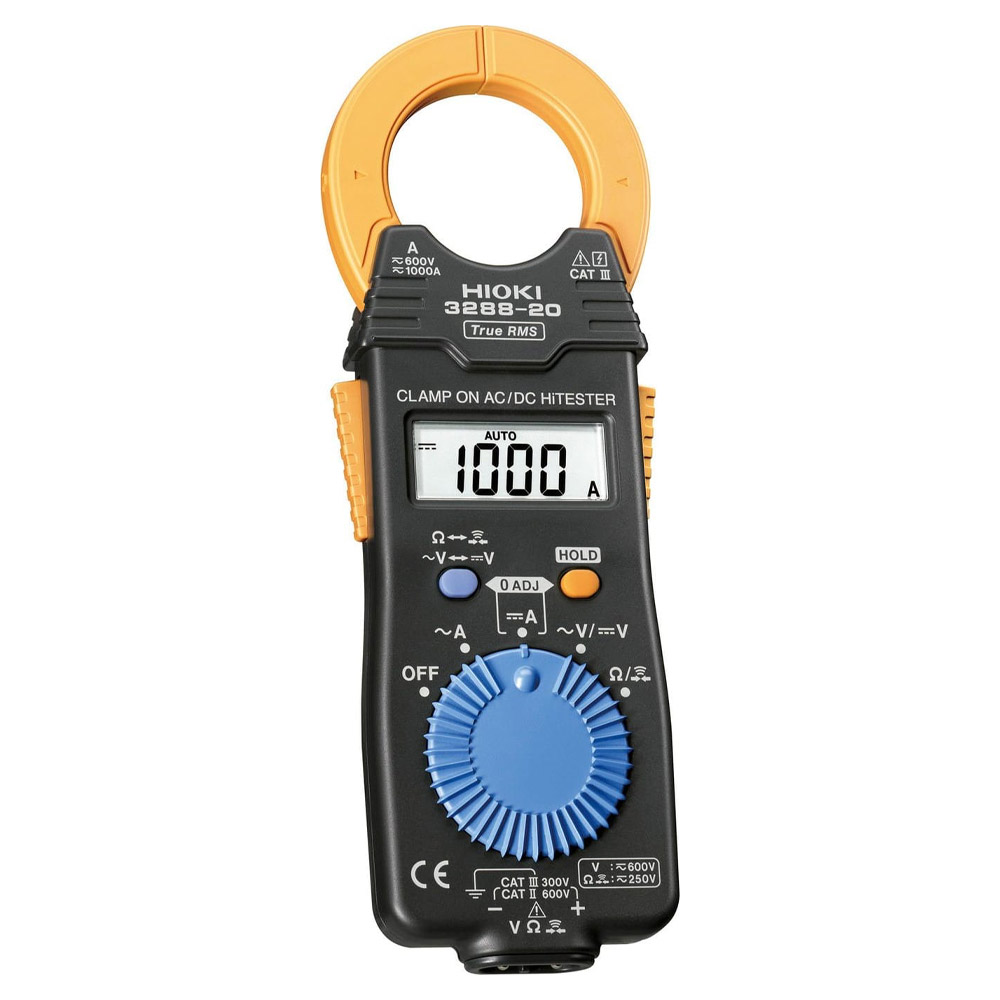

AC/DC Clamp On Hi-Tester (TRMS)
CLAMP ON AC/DC HiTESTER 3288-20. This compact, low-profile, lightweight instrument features True RMS measurement, allowing it to accommodate distorted wave input. It can also measure large AC and DC currents of up to 1,000 A. The introduction expands HIOKI?s product line by bringing a True RMS model to the company?s 3280 Series, which has also been popular for its compact, low-profile, lightweight design.
True RMS measurement
The 3288-20 features True RMS measurement, allowing it to accurately measure current input despite distortion caused by a poor power supply environment or other issues. This capability makes the instrument an excellent choice for use in inverter inspection and maintenance applications.
Compact, low-profile, lightweight body with exceptional portability
With dimensions of 57 (W) ? 180 (H) ? 16 (D) mm, a weight of just 150 g, and a low-profile cross-section, the 3288-20 is exceptionally portable.
Measurement of large currents up to 1,000 A (AC/DC)
Thanks to its ability to measure large currents of up to 1,000 A, the 3288-20 is well suited for use in applications such as inspection and maintenance of uninterruptible power supply (UPS) emergency batteries and train motors. HIOKI expects increasing demand for the instrument in fields such as inspections and recharge/discharge testing of rapid chargers for electric vehicles (EVs).
Principal Applications
Inspections and maintenance of inverters, solar power and wind power generating equipment, rapid chargers for EVs, aircraft, and ships.
Manufacturer Specs
| Principal Specifications | |
| DC current | 100.0/1,000 A, 2 ranges |
| Basic accuracy | ±1.5% rdg., ±5 dgt. |
| AC current | 100.0/1,000 A, 2 ranges |
| Basic accuracy | ±1.5% rdg., ±5 dgt |
| DC voltage | 420.0m/4.200/42.00/420.0/600 V, 5 ranges |
| Basic accuracy | ±1.3% rdg., ±4 dgt. |
| Maximum conductor diameter | 35 mm |
| Dimensions and weight | 57 (W) × 180 (H) × 16 (D) mm, 150 g |
| Continuous operating time | 35 h |
| Resistance | 420.0/4.200k/42.00k/420.0k/4.200M/42.00MO, 6 ranges |
| Basic accuracy | ±2% rdg., ±4 dgt. |
| Other functions | Buzzer at continuity of (50O ±40O) or less, data hold, auto power save, auto zeroing (DC A) |
| Display | LCD, max. 4,199 dgt.; display refresh rate: 2.5 times/sec |
| Power supply | Lithium button cell (CR2032) × 1 |
| Accessories | TEST LEAD 9208 × 1, PORTABLE CASE 9398 × 1 |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes |
| Auto Ranging/Manual | Auto Ranging |
Test Equipment General Attributes |
|
| Product Height | 0.6 IN |
| Product Length | 7.1 IN |
| Product Width | 2.2 IN |
| ECCN Number | 3A992 |
| Country of Origin | Japan |
